Exploded View

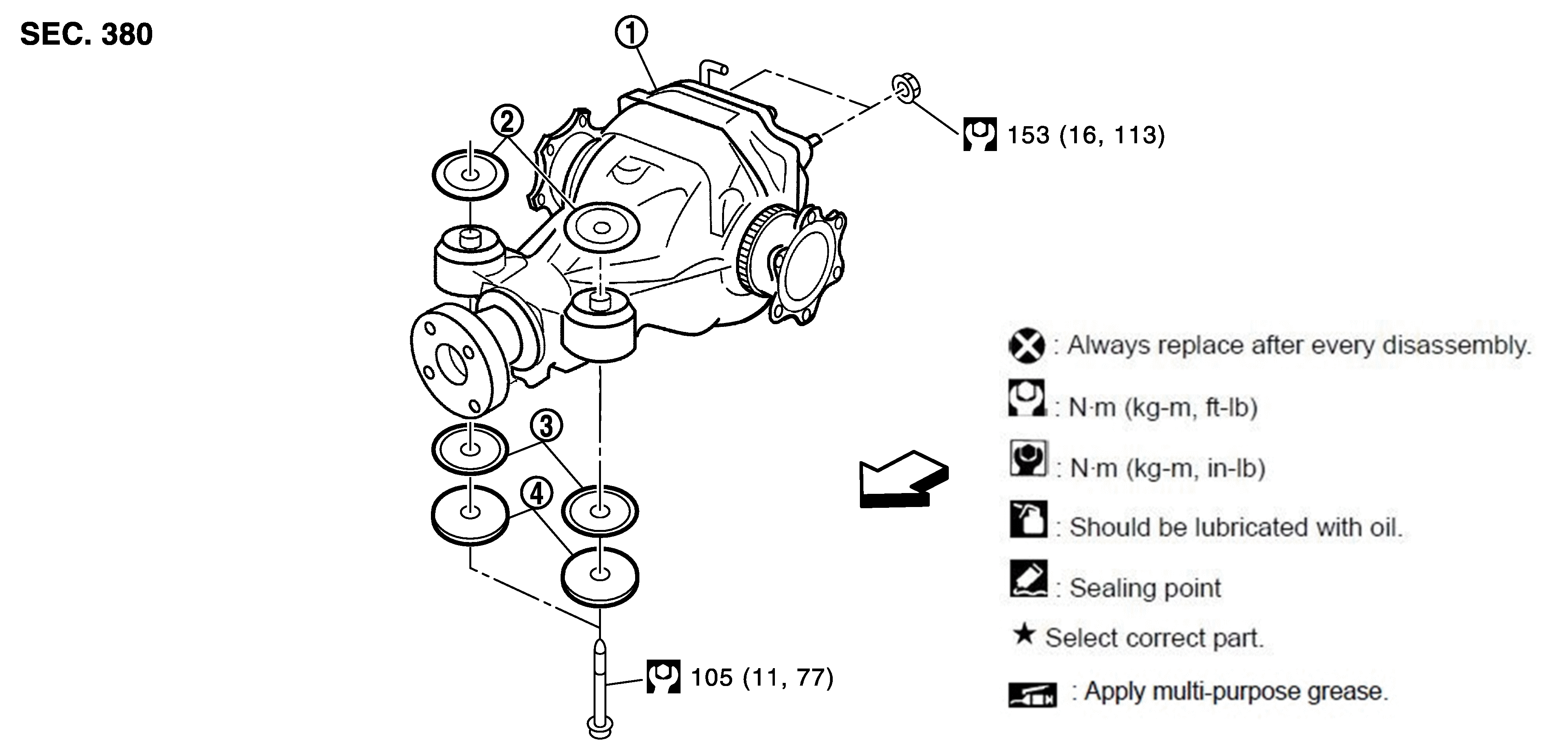

Fig 1: Rear Final Drive Assembly With Torque Specifications
GNSDB146603Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear final drive assembly 2. Upper stopper 3. Lower stopper
4. Washer
SYMBOL : Vehicle front
SYMBOL : N.m (kg-m, ft-lb)
