Exploded View

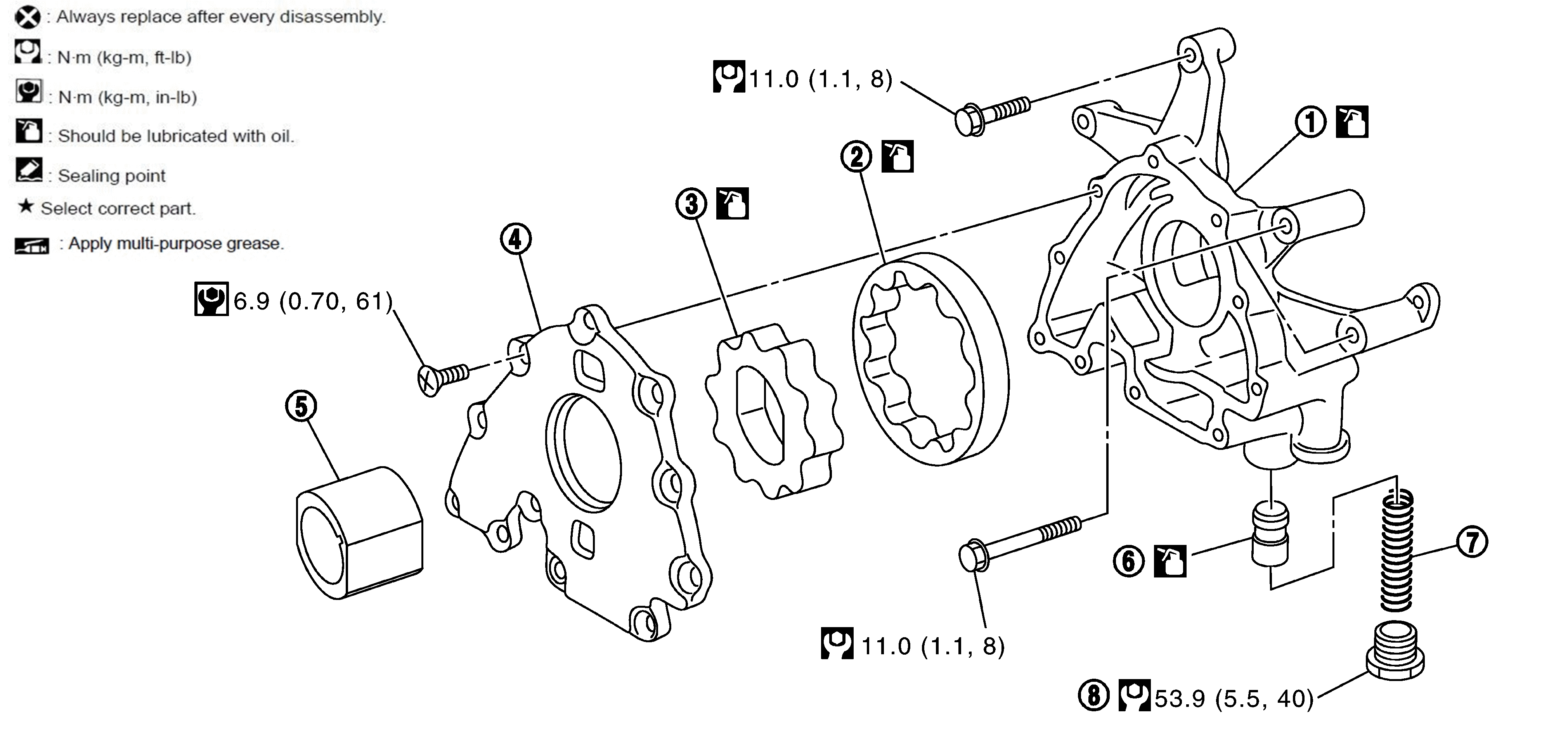

Fig 1: Oil Pump With Torque Specifications
GNSDB146273Courtesy of NISSAN NORTH AMERICA, INC.
1. Oil pump body 2. Outer rotor 3. Inner rotor
4. Oil pump cover 5. Oil pump drive spacer 6. Regulator valve
7. Regulator spring 8. Regulator plug
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : N.m (kg-m, in-lb)
SYMBOL : Should be lubricated with oil.
