Removal and Installation

REMOVAL

1. Remove the cluster lid A. Refer to INSTRUMENT PANEL ASSEMBLY : Removal and Installation .

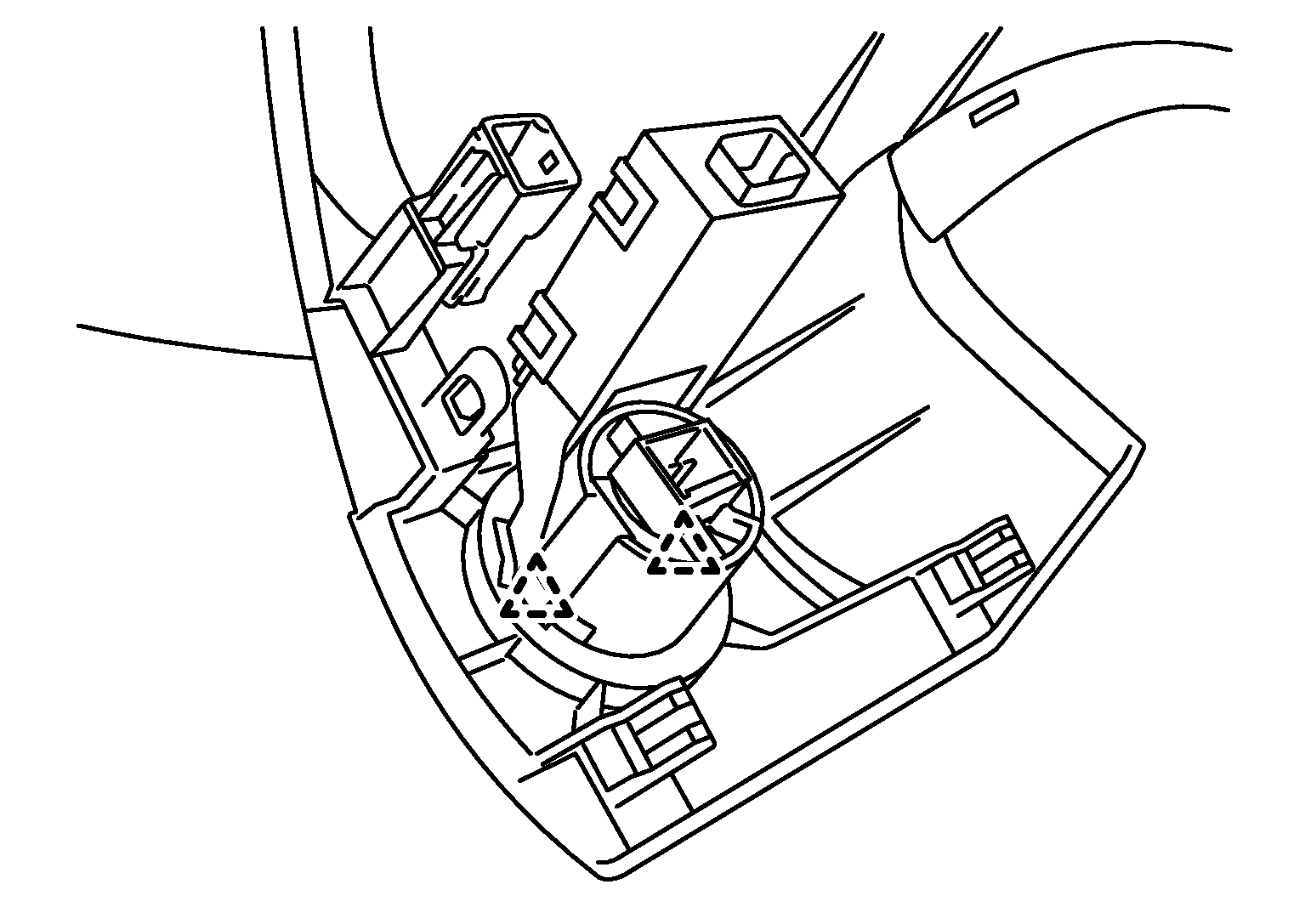

2. Disengage the push-button ignition switch fixing pawl and then remove push-button ignition switch.

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Pawl

INSTALLATION

Install in the reverse order of removal.
