FRONT WHEEL SENSOR : Exploded View

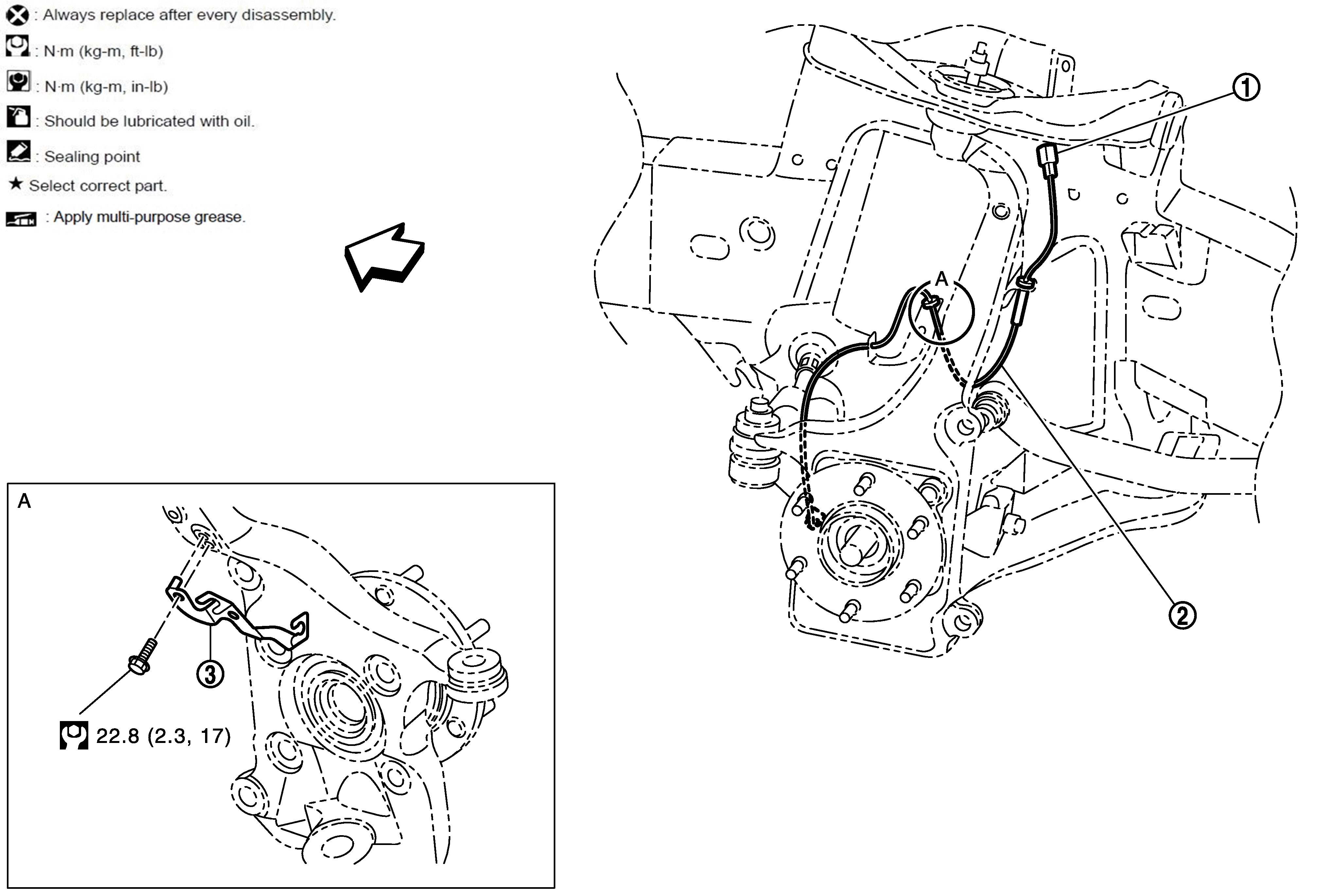

Fig 1: Front Wheel Sensor With Torque Specifications
GNSDB145950SYMBOLSYMBOLSYMBOLCourtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Front LH wheel sensor harness connector SYMBOL Front LH wheel sensor SYMBOL Bracket
SYMBOL : Vehicle front
SYMBOL : N.m (kg-m, ft-lb)
NOTE: Front RH wheel sensor is symmetrically opposite of LH.
