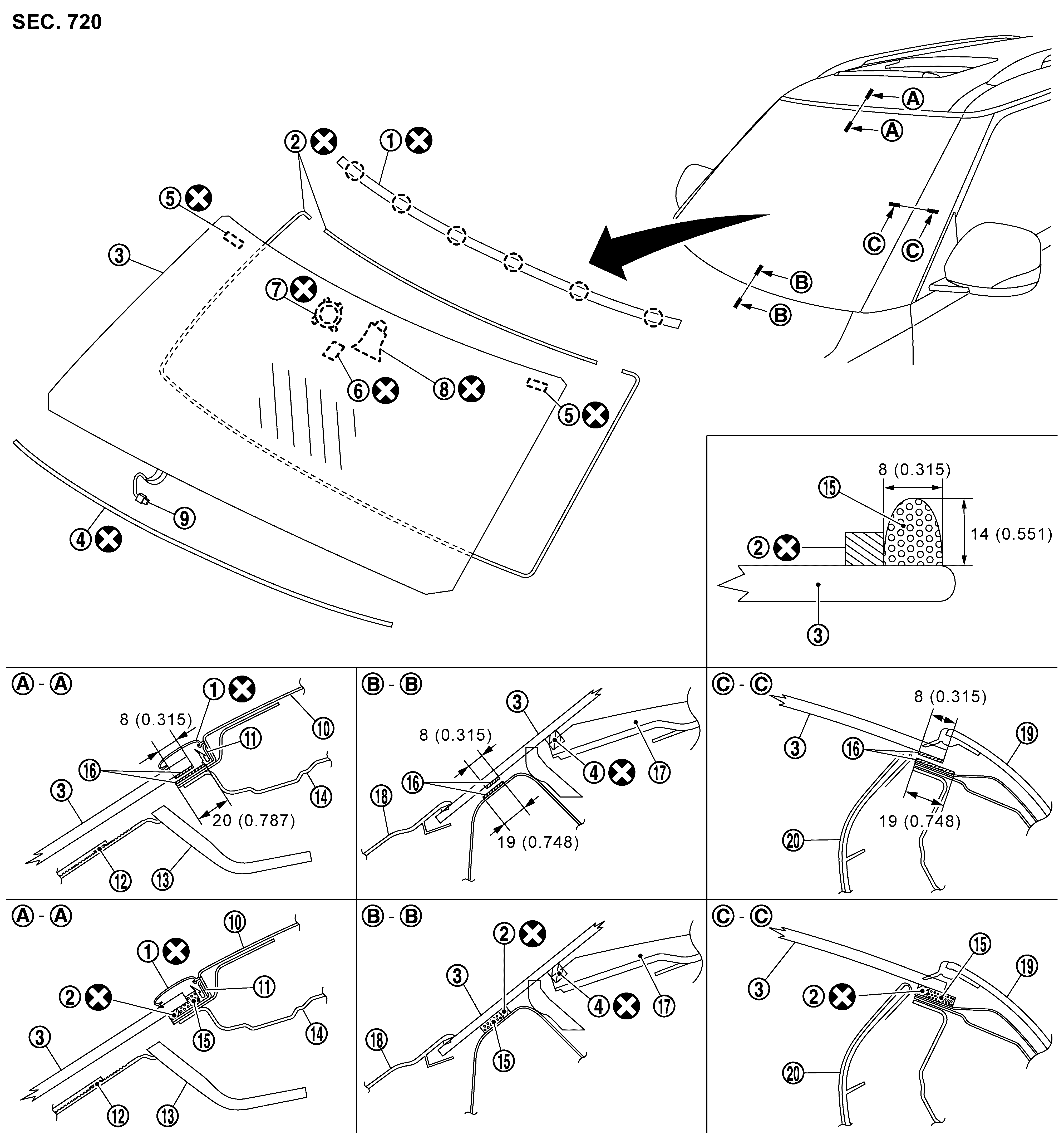

| 1. |
Windshield molding upper |
2. |
Dam sealant rubber (upper, lower) |
3. |
Windshield glass |
| 4. |
Insulator |
5. |
Clip |
6. |
Inside mirror base |
| 7. |
Rain sensor bracket |
8. |
Front camera unit bracket (with front camera model) |
9. |
Wiper deicer harness connector |
| 10. |
Roof assembly |
11. |
Windshield molding upper fastener |
12. |
Inside mirror cover |
| 13. |
Headlining assembly |
14. |
Front roof rail |
15. |
Adhesive |
| 16. |
Primer |
17. |
Instrument panel |
18. |
Cowl top cover |
| 19. |
Front pillar finisher |
20. |
Front pillar garnish |
 |
: Clip |
 |
: Always replace after every disassembly. |
| Unit |
: mm (in) |
