System Description

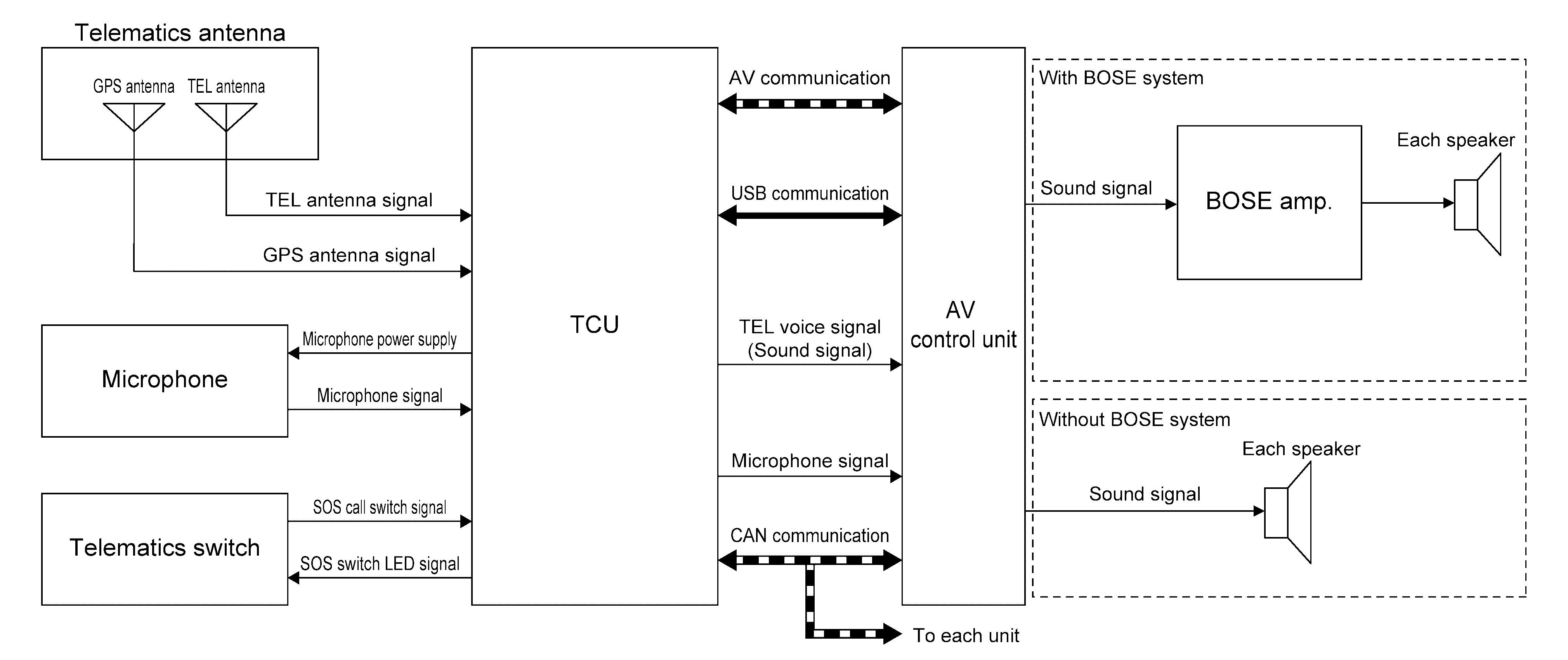

SYSTEM DIAGRAM

Courtesy of NISSAN NORTH AMERICA, INC.

Part name	Description
Squawker RH	Outputs sound signal.
Center speaker *1	Outputs sound signal.
Squawker LH	Outputs sound signal.
Front door speaker LH	Outputs sound signal.
BOSE amp. *1	Inputs sound signal from AV control unit, and outputs sound signal to each speaker.
Front door speaker RH	Outputs sound signal.
Display unit	Display unit can display an external image signal via AV control unit.
Telematics antenna	Data communications signals and voice signals are transmitted/received.
Microphone	Used for hands-free phone operation. Microphone signal is transmitted to AV control unit. Power (Microphone power supply) is supplied from TCU.
Telematics switch	The Telematics switch is connected to TCU and transmits an operation signal.
AV control unit	Inputs sound signal from TCU, and outputs sound signal to BOSE amp. 1 Inputs sound signal from TCU, and outputs sound signal to each speaker 2
TCU	The TCU is a device that allows the vehicle to be connected with the Vehicle Owner giving them remote control access to their vehicle and information.

*1: With BOSE system

*2: Without BOSE system

DESCRIPTION

The telematics system provides the vehicle owner with information and services that can be accessed in ease over a secure connection using the NissanConnect Services APP (Apple/Android).

NOTE: In order to use NissanConnect Services; Vehicle Owners must subscribe to it separately.

TCU (Telematics Communication Unit) equipped with a radio communication terminal communicates with the information center (NissanConnect Services Data Center) via radio waves for receiving NissanConnect Services
Available services via the telematics system are defined as NissanConnect Services.
TCU integrates a wireless communication terminal and is connected to the telematics antenna that allows it to send/receives data with the NissanConnect Services App using packet communication *1 and SMS *2.
NOTE:
- *1: Packet communication is the communication method that sends/receives data in a small packets with information. Divided data is referred to as a packet and the communication line can be efficiently used.
- *2: SMS stands for Short Message Service. It is also referred to as Text Messaging, Short Mail, etc. It is the service that performs text based message communication.
The telematics system interacts with the NissanConnect Connection Data Center using GPS and GSM/GPRS technologies. The TCU can send messages to and receive commands from the NissanConnect Services Data Center. This allows the NissanConnect Services Data Center to monitor the vehicle and obtain actual position coordinates and automatically detected events, as well as initiate certain services from outside the vehicle. In addition, the vehicle operator can initiate services from inside the vehicle.
Telematics antenna, telematics switch and microphone are connected to the TCU via Hardware (Physical connection).
The available services are: Information service, Nissan Connection Response service, shortest route search, safety and security service, etc. In addition, can remote-control a vehicle than a cellphone using NissanConnect Services.

NOTE: For additional information on the Telematics system, refer to the NAVIGATION SYSTEM OWNER'S MANUAL.

Join the Telematics service.
Register the user ID and password in advance. (They are required for activation.)
For activation operation. Refer to Work Procedure .

COMMUNICATION SIGNAL

TCU is connected to the AV control unit via USB communication, and it sends/receives reception data of TCU and operation signals of the AV control unit.
TCU is connected to each control unit via CAN communication, and it sends/receives vehicle information.
