System Description

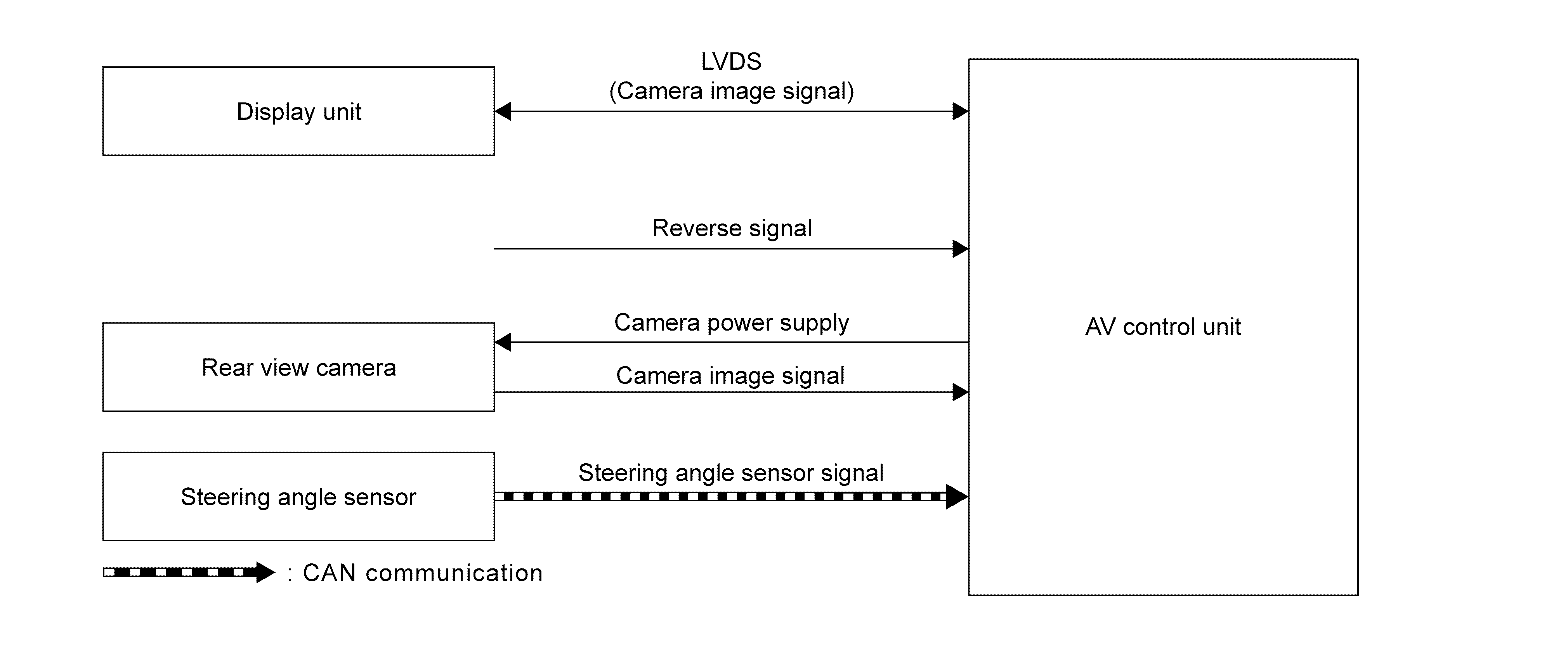

SYSTEM DIAGRAM

Courtesy of NISSAN NORTH AMERICA, INC.

Component	Function
Rear view camera	Camera power supply is input from AV control unit. The image of vehicle rear view is transmitted to AV control unit.
Display unit	Display unit can display a camera image signal via AV control unit.
Steering angle sensor	It is connected to the AV control unit and transmits the steering angle sensor signal via CAN communication.
AV control unit	Camera power supply is transmitted to rear view camera. The image of vehicle rear view is input from rear view camera.

AV control unit Input Signal (CAN Communication)

Transmit unit	Signal name
Steering angle sensor	Steering angle sensor signal

DESCRIPTION

Operation Description

• When the selector lever is shifted to the reverse position, the rear view monitor image is displayed.
• When the selector lever is shifted to any position other than the reverse position, the original image (the image displayed before the rear view monitor image) is displayed.

Camera Image Operation Principle

• The AV control unit that receives the reverse signal input supplies power to the rear view camera and gives input of image signal.
• The AV control unit outputs the rear view camera image to the display when the reverse signal is inputted.
• The AV control unit generates the warning message, vehicle width guide lines and the predicted course lines on the image from the rear view camera to display a rear view camera image on the screen.

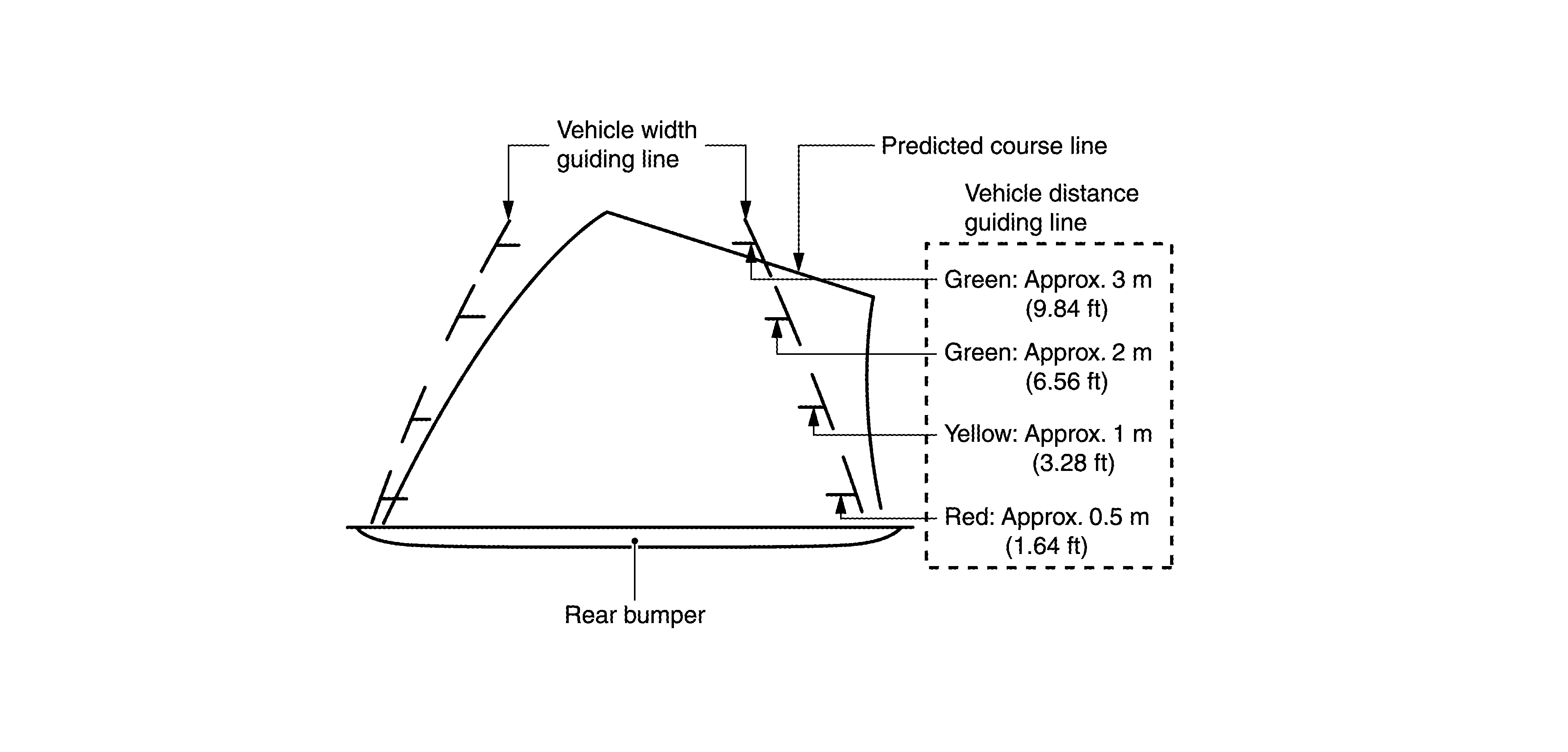

Vehicle Width Guide Lines and Predicted Course Lines Display Function at Rear View Monitor Display

• The vehicle width guide lines and the predicted course lines that indicate the vehicle route according to the steering angle are displayed at the rear view monitor display to allow the driver to more easily judge distances between the vehicle and objects and help the driver back into a parking space.
• The AV control unit receives the steering angle sensor signal from the steering angle sensor via CAN communication and draws a vehicle width guide line according to the steering angle.
• When the vehicle width guide lines are displayed, the vehicle width guide lines are displayed translucently.
• The predicted course lines are not displayed when the steering is in the neutral position.

Courtesy of NISSAN NORTH AMERICA, INC.

Precautions for Vehicle Width Guide Lines and Predicted Course Lines Display on the Rear View Monitor Display

Vehicle width guide lines and predicted course lines on the display may be different from actual lines depending on vehicle conditions and road conditions.

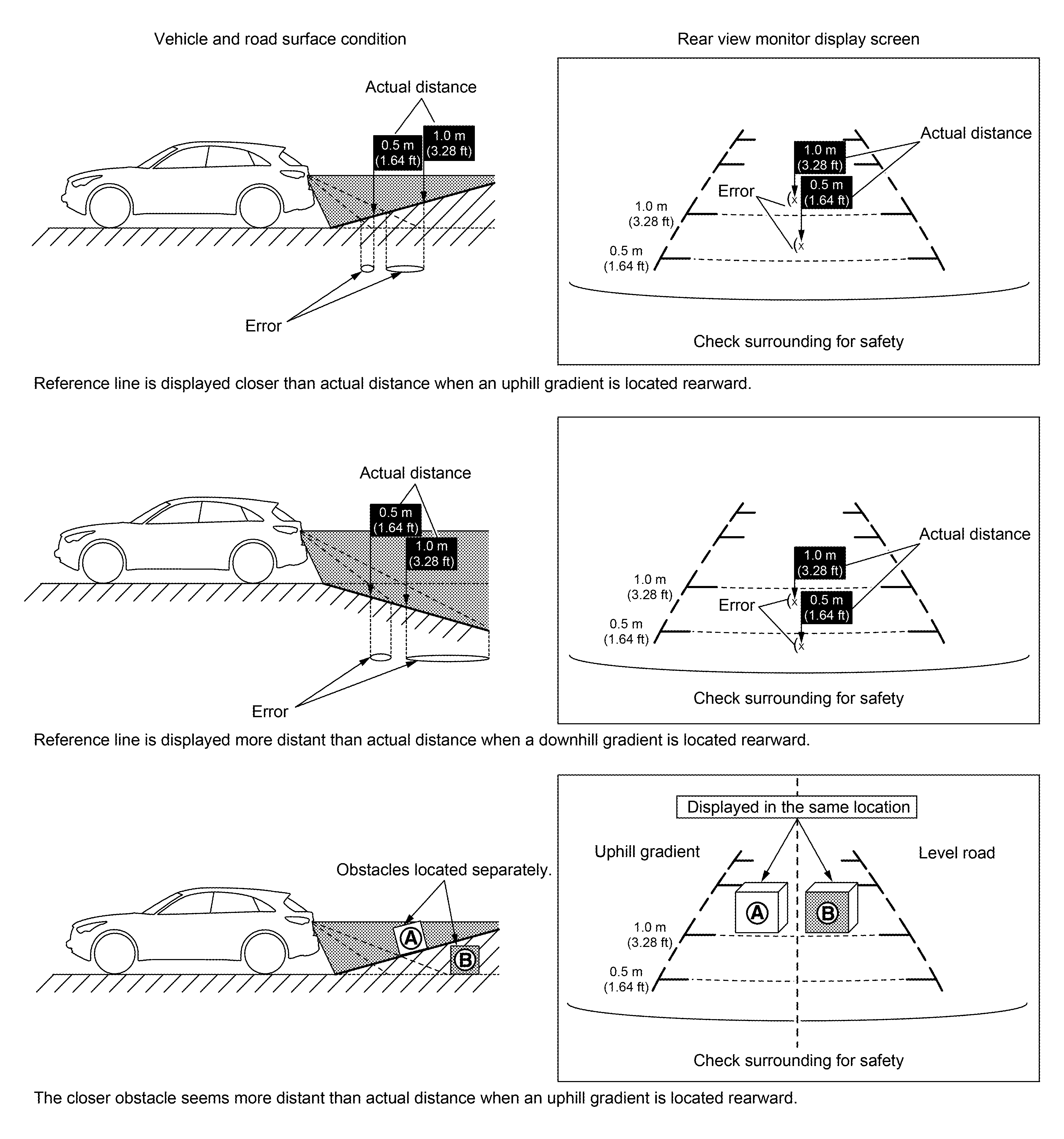

Precautions for road conditions

• Since vehicle width guide lines and predicted course lines are drawn based on the road, a different distance may be displayed if a protruding block is present nearby.

  Courtesy of NISSAN NORTH AMERICA, INC.

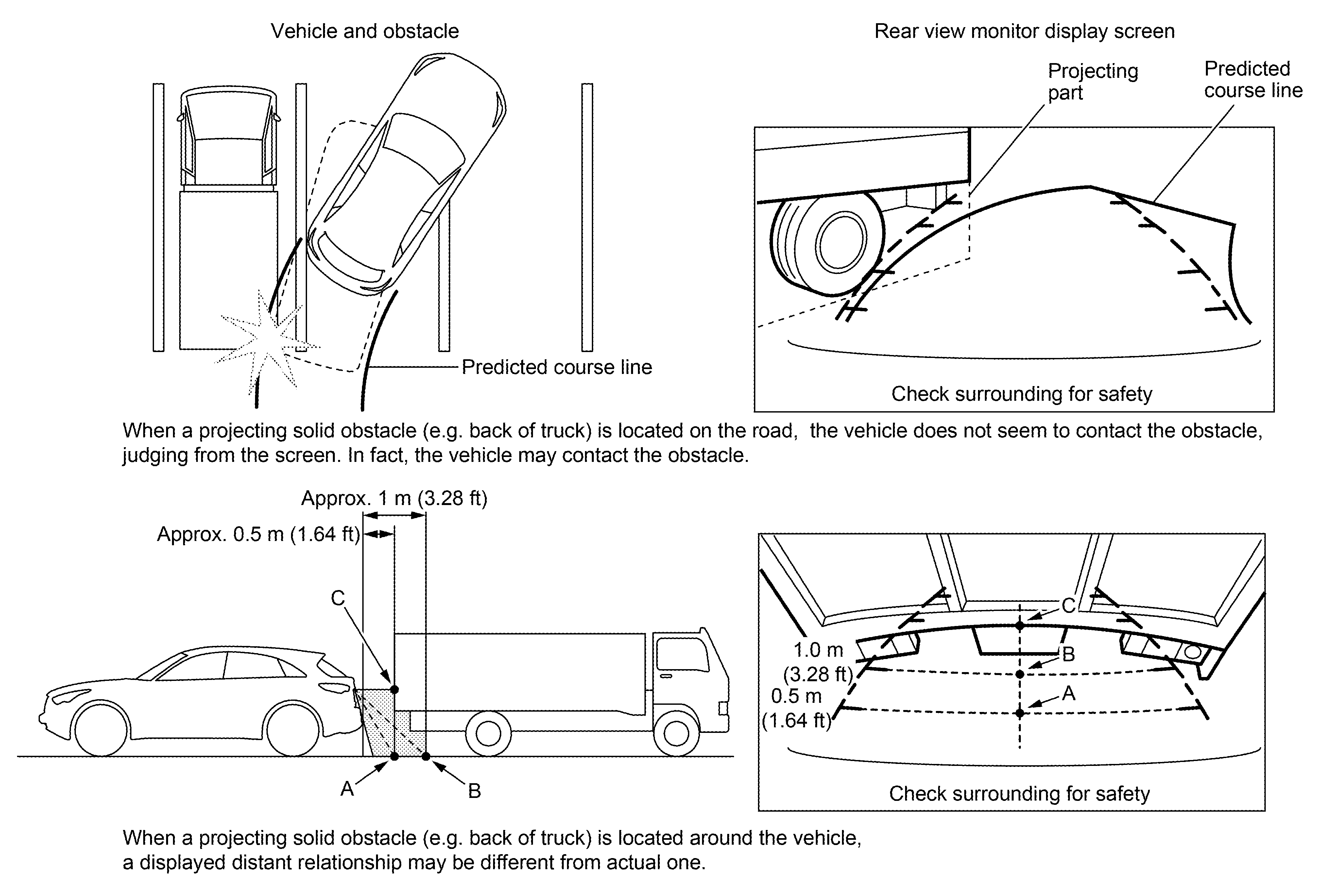

Precautions for block

• Since vehicle width guide lines and predicted course lines are drawn based on the road, a different distance may be displayed if a protruding block is present nearby.

  Courtesy of NISSAN NORTH AMERICA, INC.
