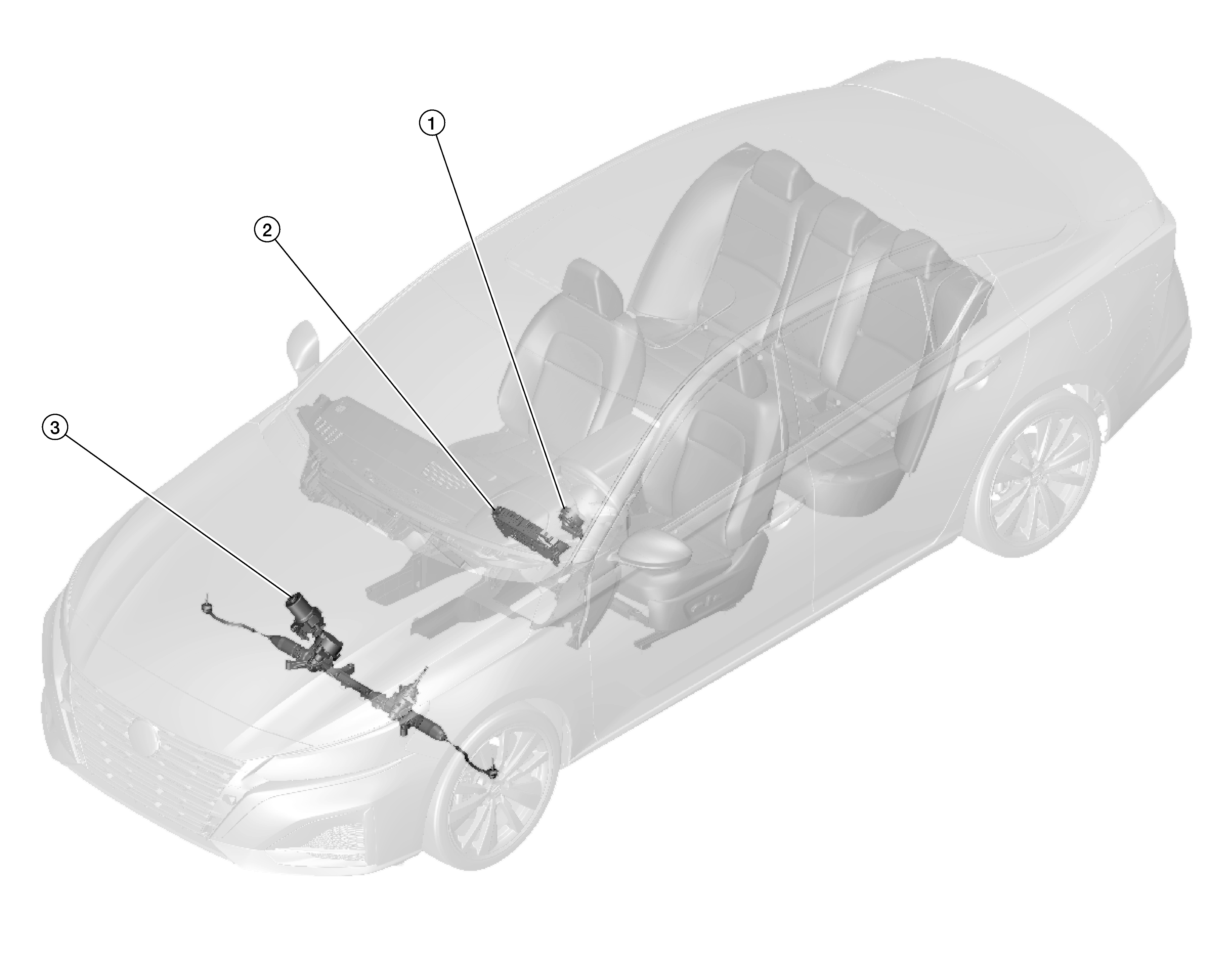

| 1. |
Chassis control module (with built in steering angle sensor) (With automatic brake hold) |
Transmits the steering angle sensor signal to EPS control unit via CAN communication. Refer to Component Location
for detailed component location. |
| Steering angle sensor (Without automatic brake hold) |
Transmits the steering angle sensor signal to EPS control unit via CAN communication. Refer to Component Location
for detailed component location. |
| 2. |
Combination meter (Power steering warning lamp) |
- Transmits the vehicle speed signal (Meter) to EPS control unit via CAN communication.
- Turns ON the power steering warning lamp according to the signal from the EPS control unit via CAN communication.
Refer to Component Location
(Type A) or Component Location
(Type B) for detailed component location. For power steering warning lamp, refer to Warning Lamp/Indicator Lamp . |
| 3. |
EPS (Electronically controlled power steering) control unit |
Refer to Component Description . |
