System Description

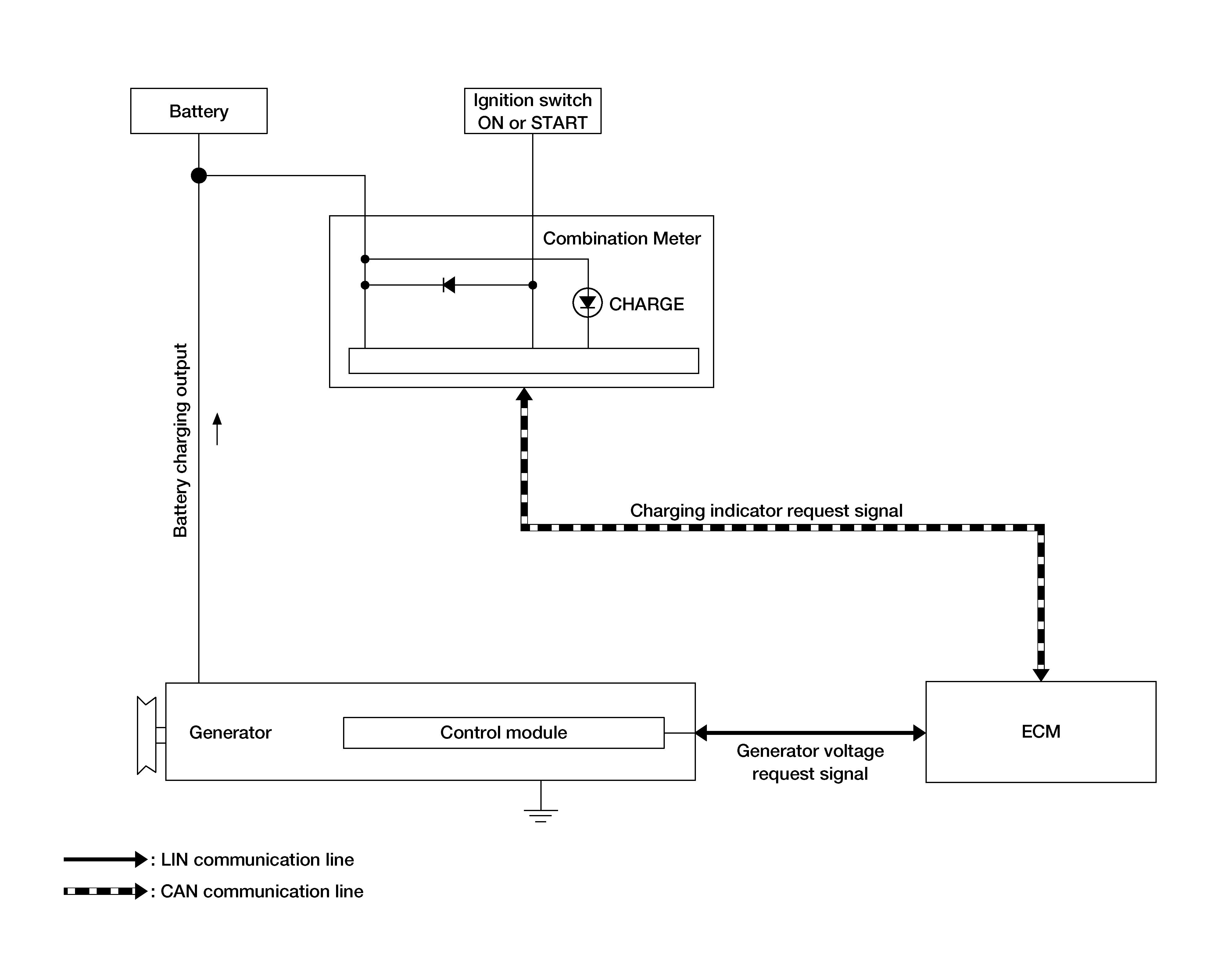

SYSTEM DIAGRAM
SYSTEM DESCRIPTION
The generator provides DC voltage to operate the vehicle's electrical system and to keep the battery charged. The voltage output is controlled by the IC regulator.
INPUT SIGNAL AND OUTPUT SIGNAL
| Signal name | Input | Output | Description |
|---|---|---|---|
| Charging indicator request signal | ECM | Combination meter (CAN) | Inputs the charging indicator request signal to the combination meter and activates the charge warning lamp. |
| Generator voltage request signal | ECM | Generator (control module) (LIN) | Inputs the generator voltage request signal to the generator, then the generator produce voltage. |
