Exploded View

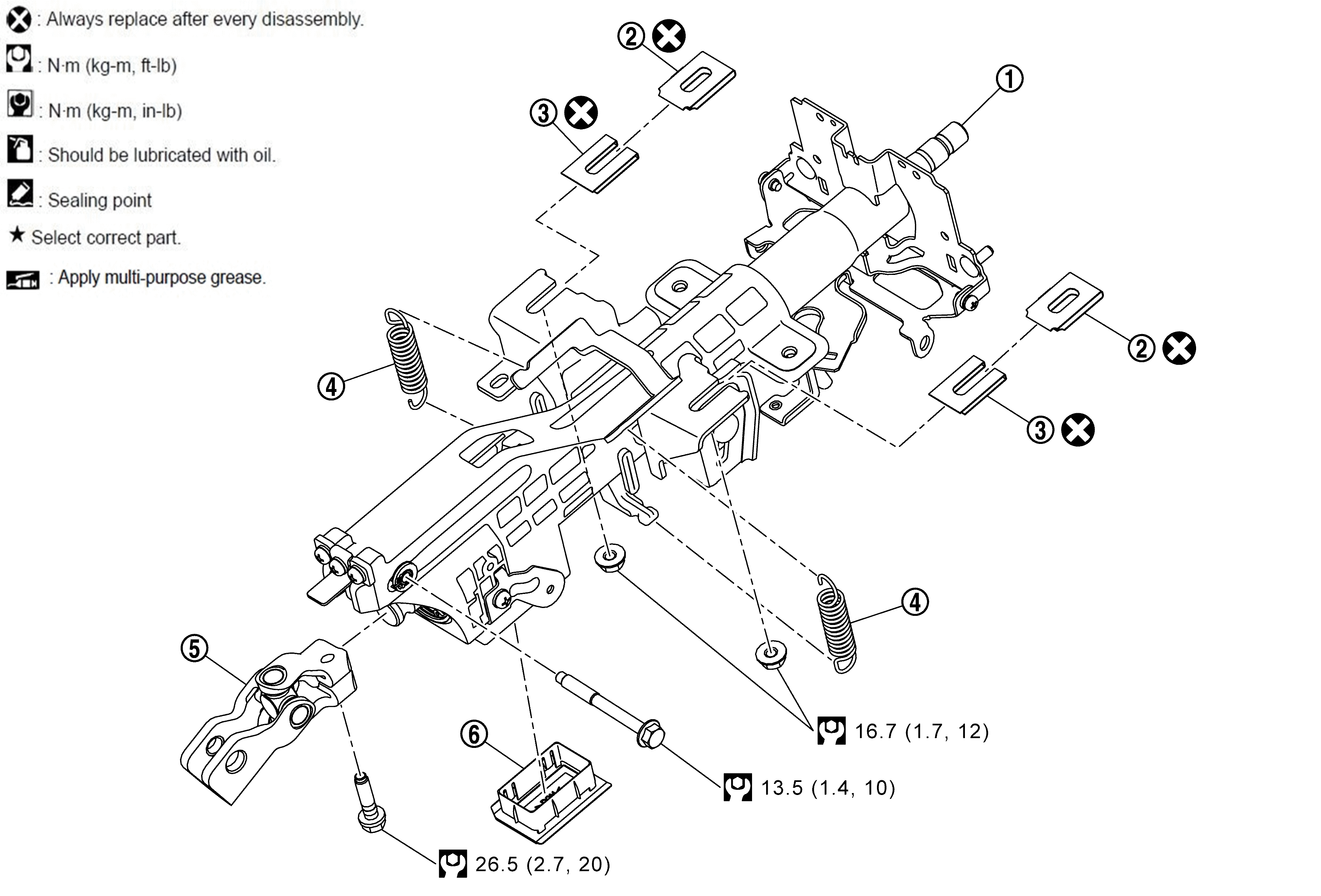

Fig 1: Steering Column With Torque Specifications
GNSDB155400Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Steering column assembly SYMBOL Slide plate SYMBOL Slide plate
SYMBOL Spring SYMBOL Upper joint SYMBOL Dust cover
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : Always replace after every disassembly.
