Spark Plug: Inspection

INSPECTION AFTER REMOVAL

Use the standard type spark plug for normal condition.

Spark plug (Standard type) : Refer to Spark Plug .
CAUTION:
  • Never drop or shock spark plug.

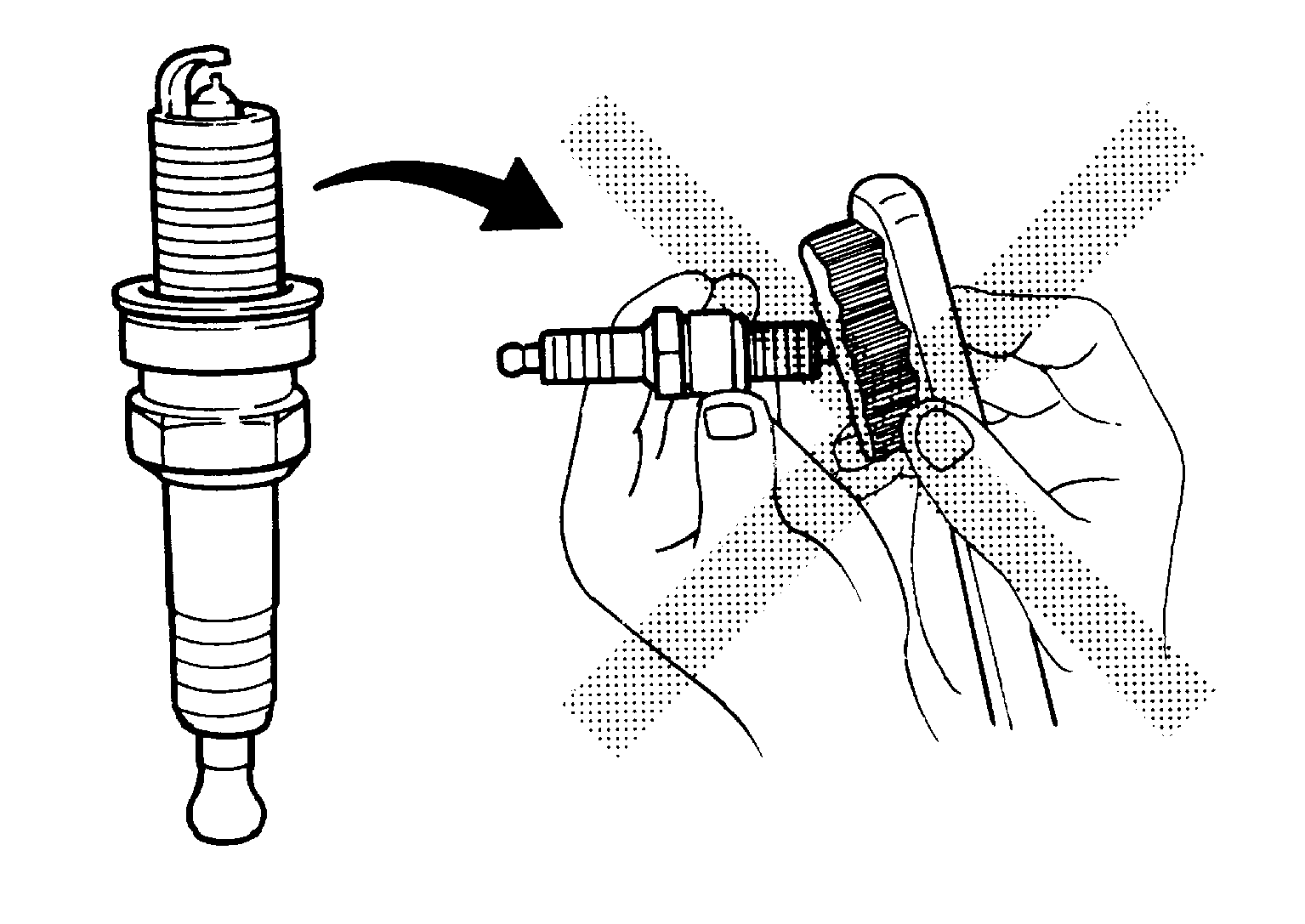

    GNSDB106951Courtesy of NISSAN NORTH AMERICA, INC.
  • Never use a wire brush for cleaning.
  • If plug tip is covered with carbon, use spark plug cleaner to clean.
    Cleaner air pressure
      : Less than 588 kPa (6 kg/cm2 , 85 psi)
    Cleaning time
      : Less than 20 seconds

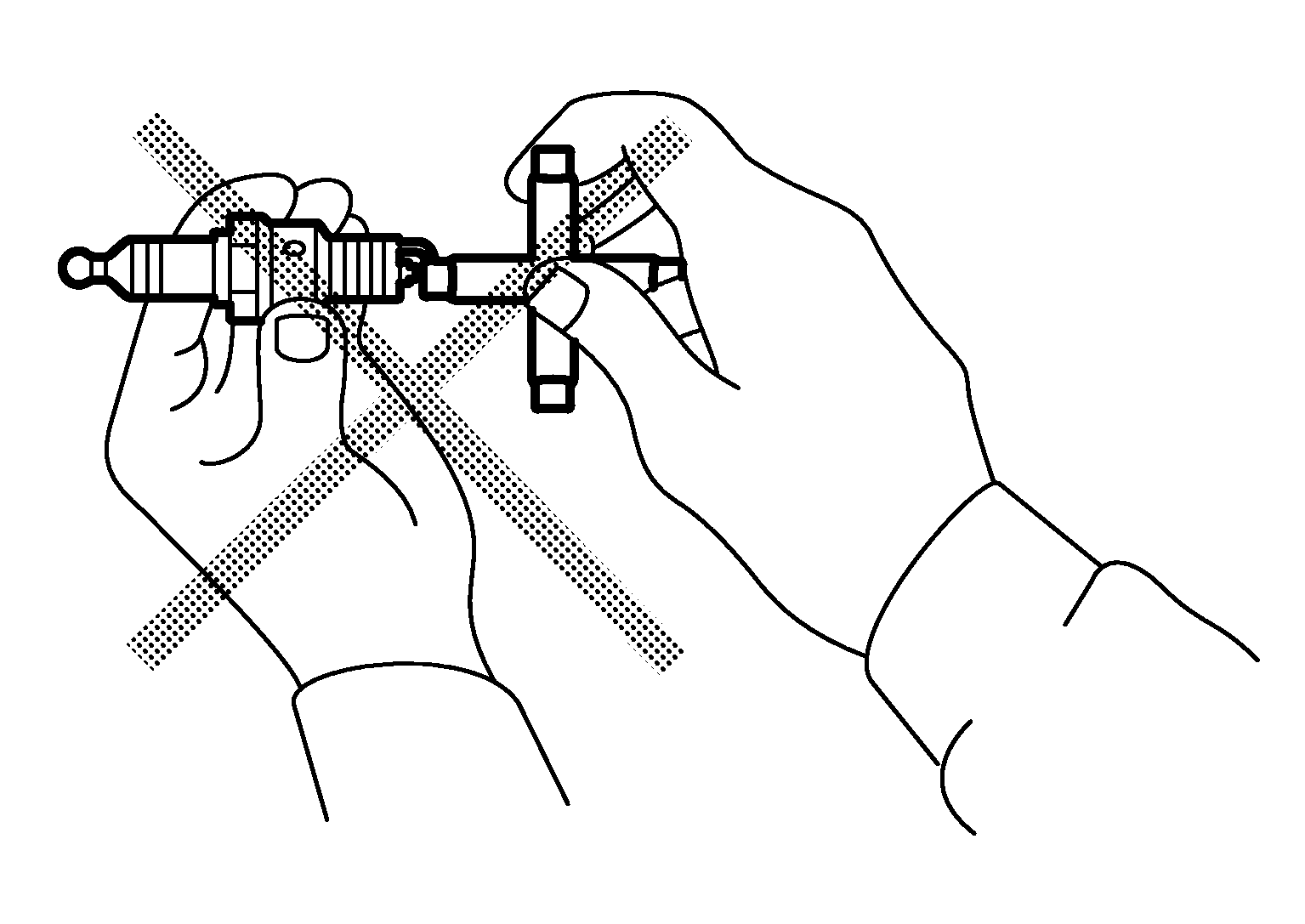

  • Check and adjustment of plug gap is not required between change intervals.
    GNSDB130873Courtesy of NISSAN NORTH AMERICA, INC.
