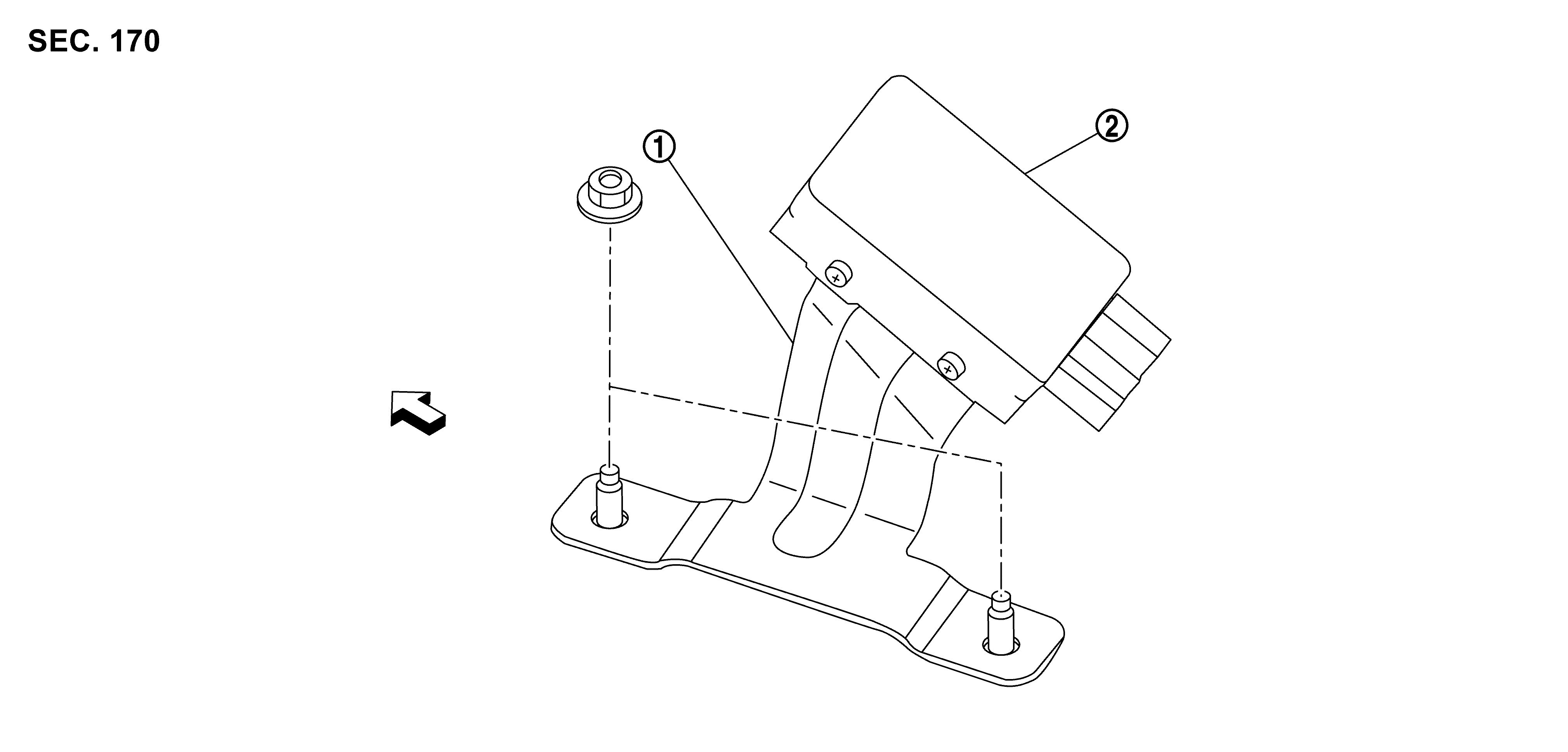

FUEL PUMP CONTROL MODULE (FPCM) : Exploded View

GNSDB155548Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Fuel pump control module
SYMBOL : Vehicle front
