Exploded View

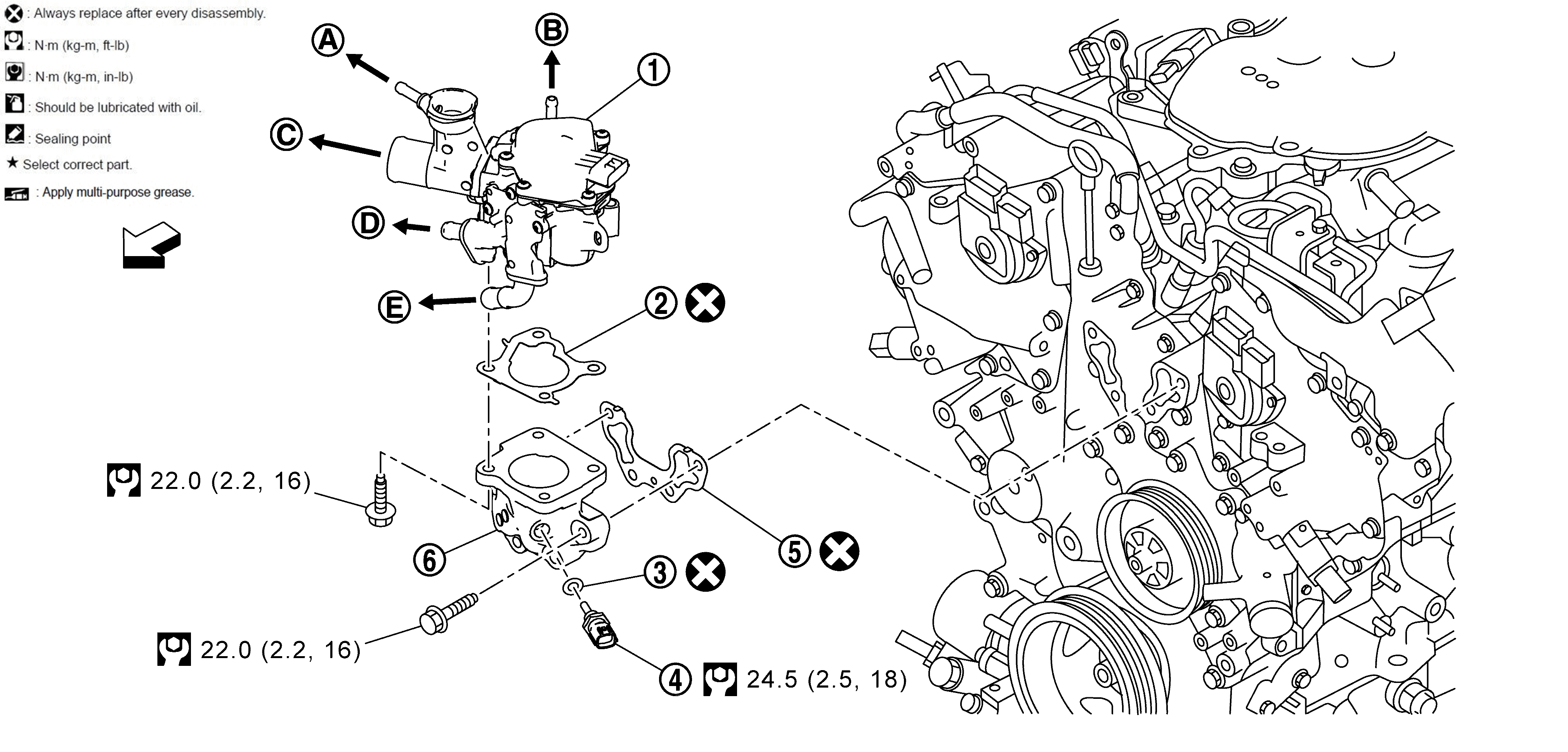

Fig 1: Multi-Way Control Valve With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Multi-way control valve	Gasket	Gasket
Engine coolant temperature sensor 2	Gasket	Water outlet
To reservoir tank. Refer to Exploded View .	To turbocharger assembly. Refer to Exploded View .	To radiator. Refer to Exploded View .
To heater pipe. Refer to Exploded View . To A/T fluid warmer. Refer to Exploded View .	To heater. Refer to Exploded View .
: Engine front
: N.m (kg-m, ft-lb)
: Always replace after every disassembly.
