System Description (A/T Models)

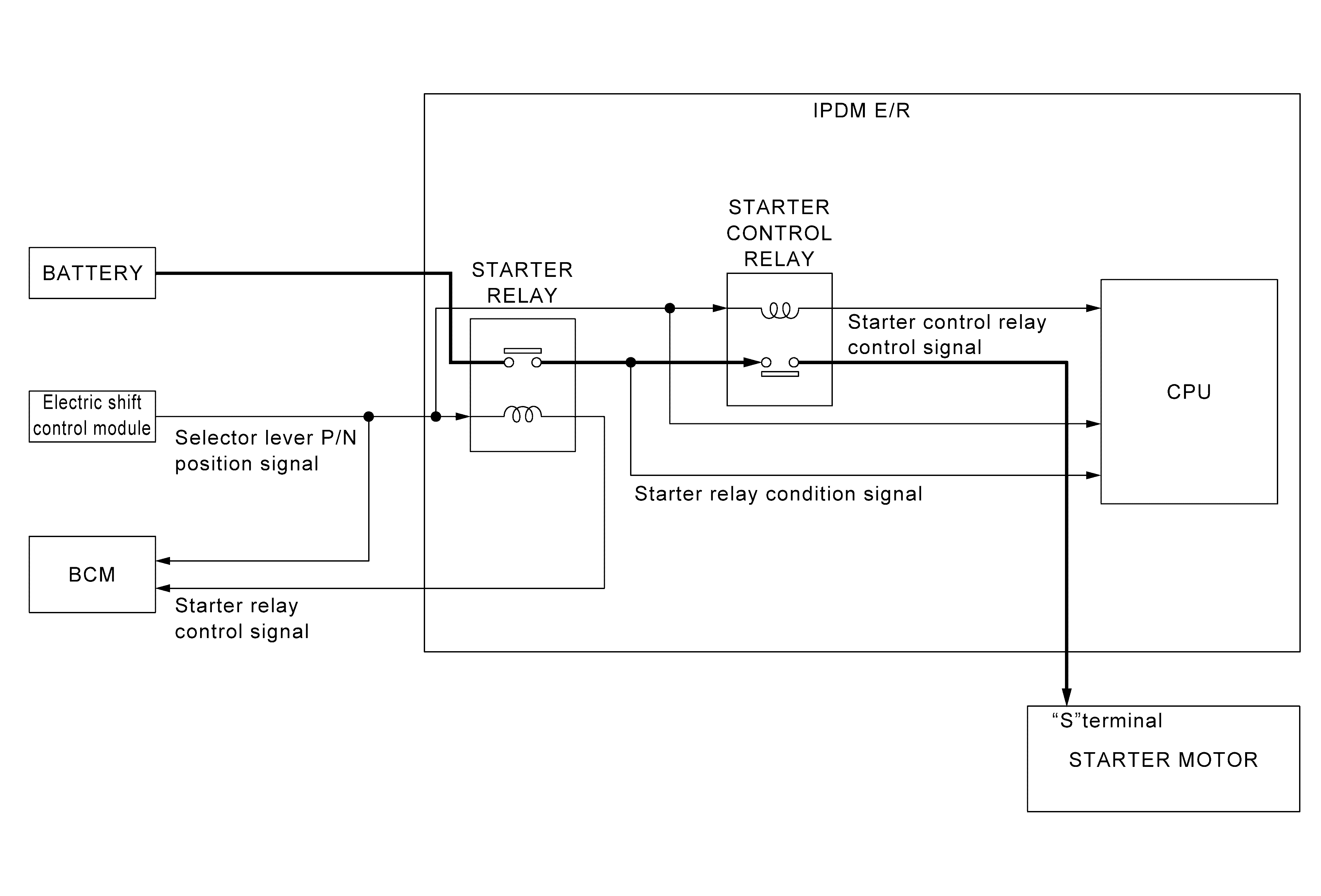

System Diagram
| Component | Function |
|---|---|
| Electric shift control module | Electric shift control module supplies power to starter relay and starter control relay when the shift position is P or N position. |
| BCM | BCM controls starter relay. |
| IPDM E/R | CPU inside IPDM E/R controls starter control relay. |
| Starter motor | Refer to Starter motor . |
System Description
- When shift position is "P" or "N", power is supplied to starter relay and starter control relay by electric shift control module. And BCM and IPDM E/R (CPU) detect selector lever P/N condition by the inputted signal.
- When starter operating condition is satisfied, IPDM E/R turns starter control relay ON by starter control relay control signal.
- When engine cranking condition is satisfied, BCM turns starter relay ON by starter relay control signal.
- Then battery power is supplied to starter motor ("S" terminal) through starter control relay and starter relay. And IPDM E/R (CPU) detect starter relay condition by the inputted signal.
