Exploded View

REMOVAL

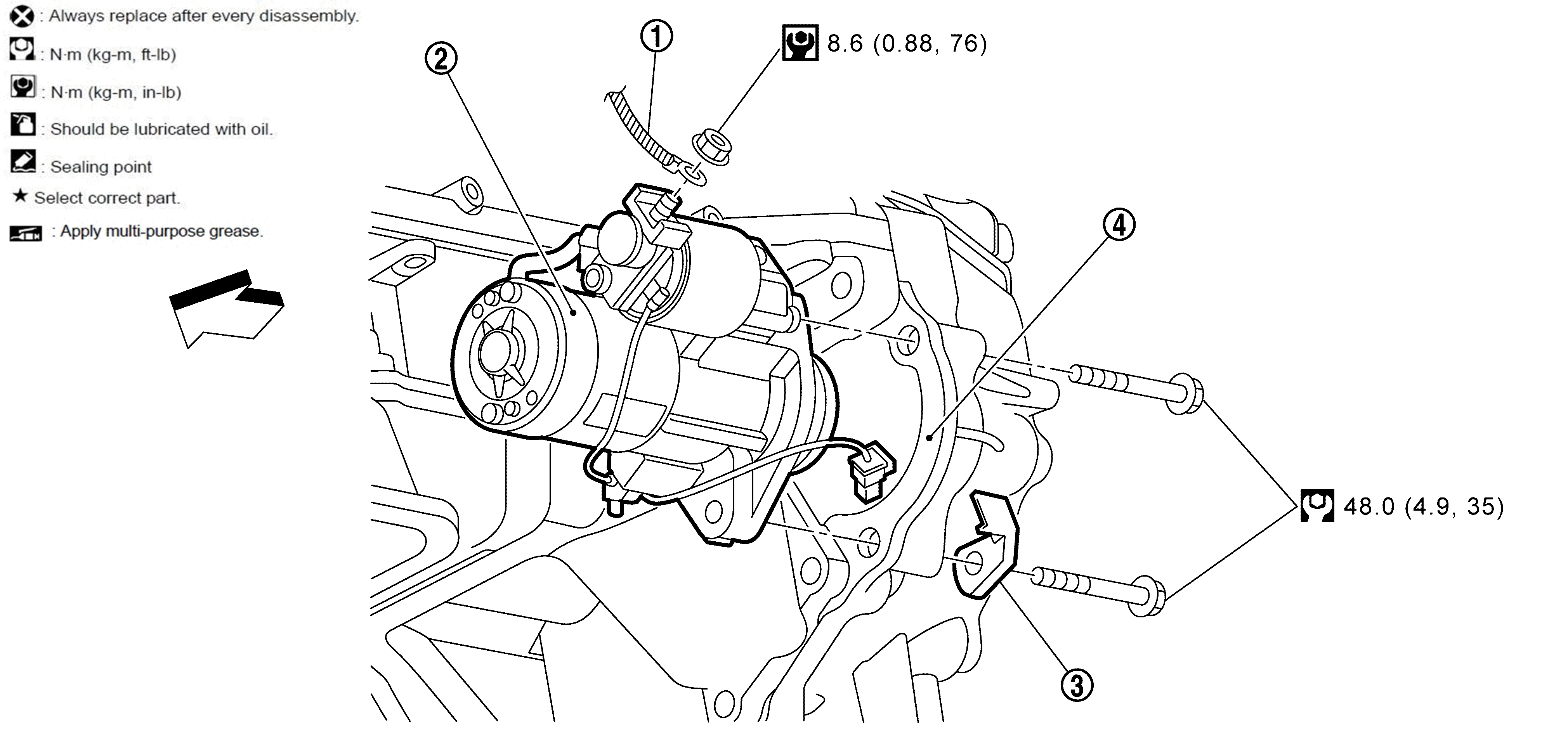

Fig 1: Starter Motor With Torque Specifications
GNSDB155816SYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLCourtesy of NISSAN NORTH AMERICA, INC.
SYMBOL "B" terminal harness SYMBOL Starter motor SYMBOL Harness clip bracket
SYMBOL Converter housing (A/T models), Transmission case (M/T models)
SYMBOL : Vehicle front
SYMBOL : N.m (kg-m, in-lb)
SYMBOL : N.m (kg-m, ft-lb)

DISASSEMBLY

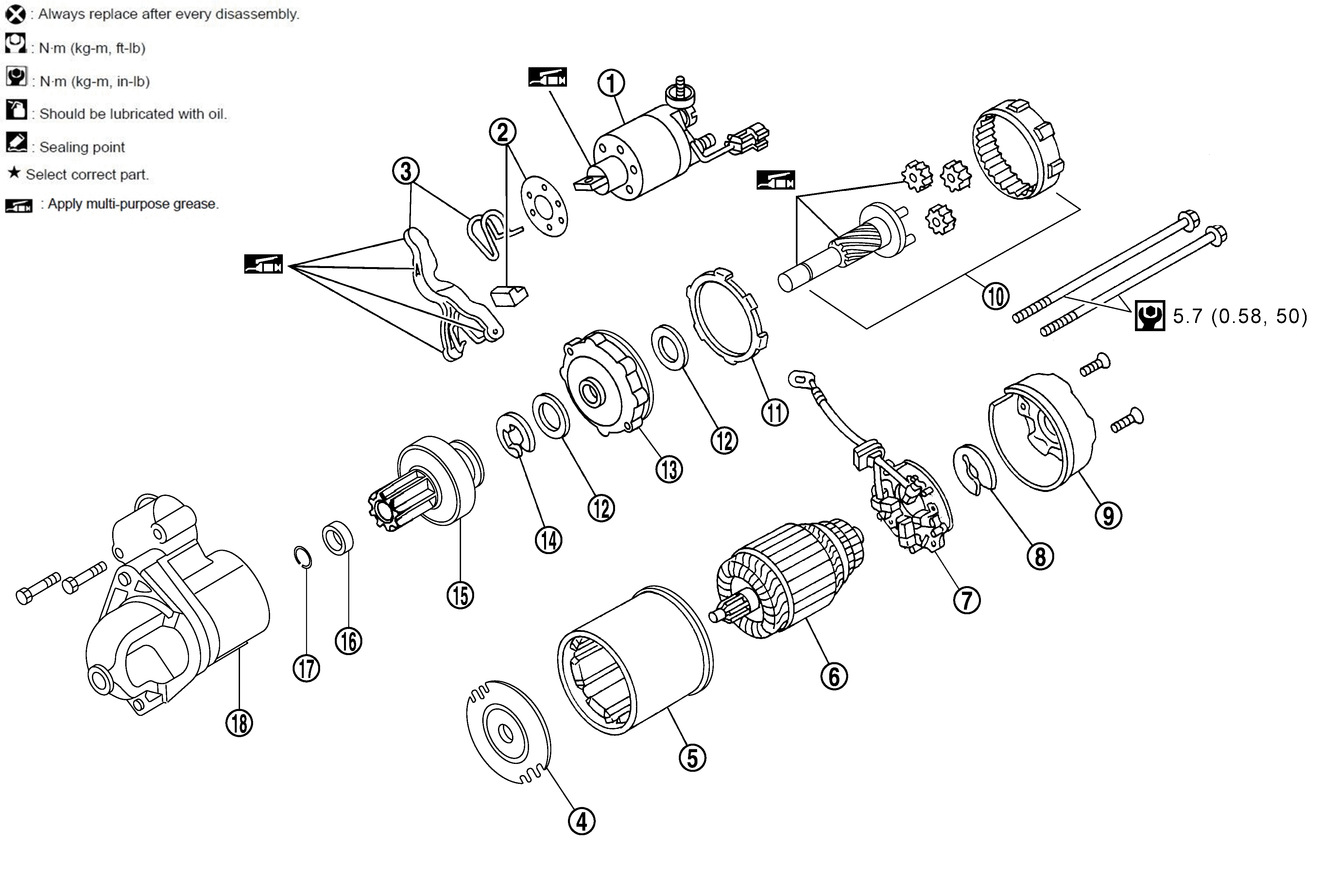

Fig 2: Starter Motor With Torque Specifications - Disassembly
GNSDB154657Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Magnetic switch assembly SYMBOL Dust cover kit SYMBOL Shift lever set
SYMBOL Center bracket (A) SYMBOL Yoke assembly SYMBOL Armature assembly
SYMBOL Brush holder assembly SYMBOL Thrust washer SYMBOL Rear cover assembly
SYMBOL Shaft gear assembly SYMBOL Packing SYMBOL Thrust washer
SYMBOL Center bracket (P) SYMBOL E-ring SYMBOL Pinion assembly
SYMBOL Pinion stopper SYMBOL Pinion stopper clip SYMBOL Gear case assembly
SYMBOL : N.m (kg-m, in-lb)
SYMBOL : High-temperature grease point
NOTE: SYMBOL Apply high-temperature grease to lubricate the bearing, gears and frictional surface when assembling the starter.
