Exploded View

REMOVAL

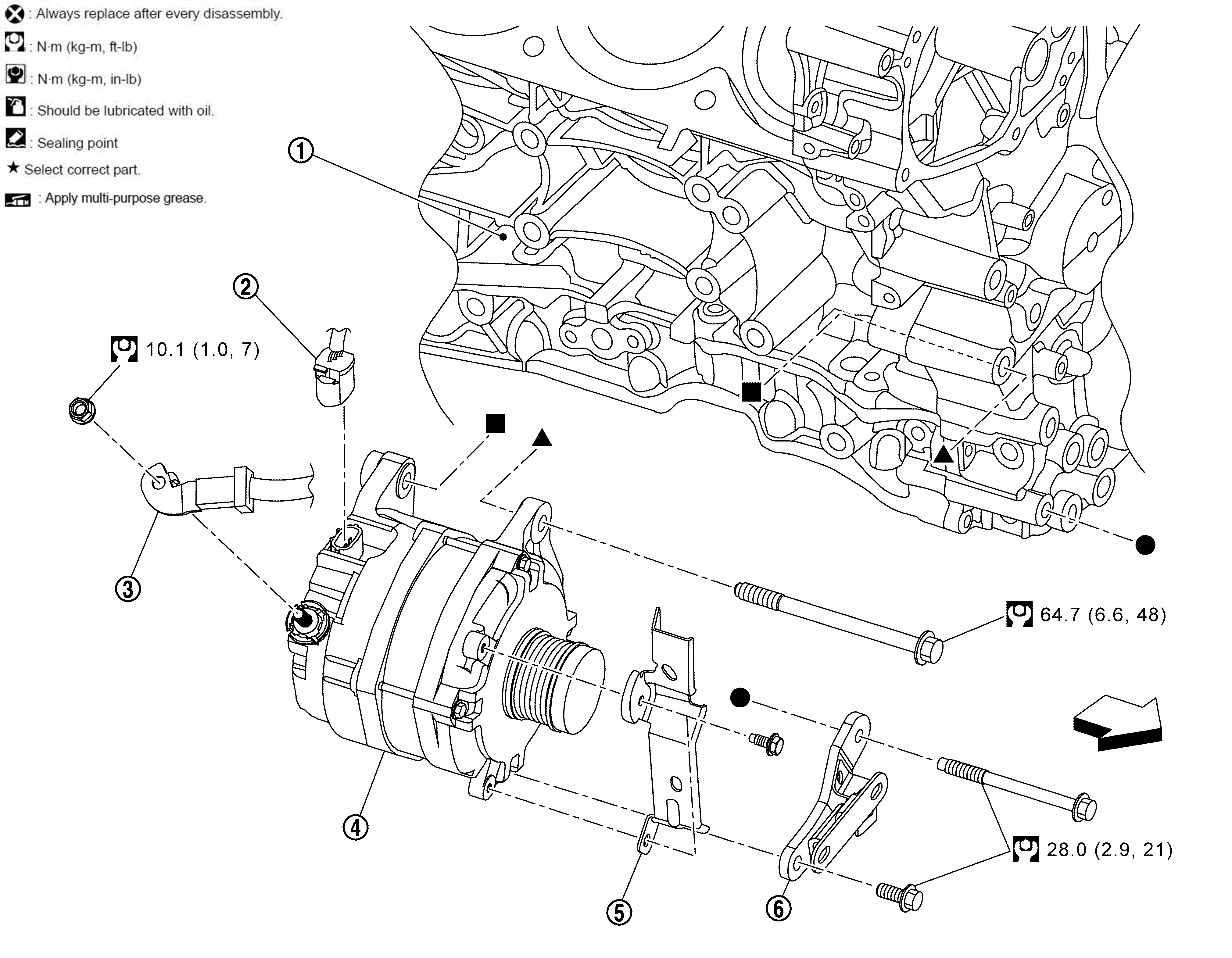

Fig 1: Alternator With Torque Specifications
GNSDB155827SYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLCourtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Engine assembly SYMBOL Alternator connector SYMBOL "B" terminal harness
SYMBOL Alternator SYMBOL Harness bracket SYMBOL Alternator stay
SYMBOL : Vehicle front
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL , SYMBOL
SYMBOL : Indicates that the part is connected at points with same symbol in actual vehicle.

DISASSEMBLY

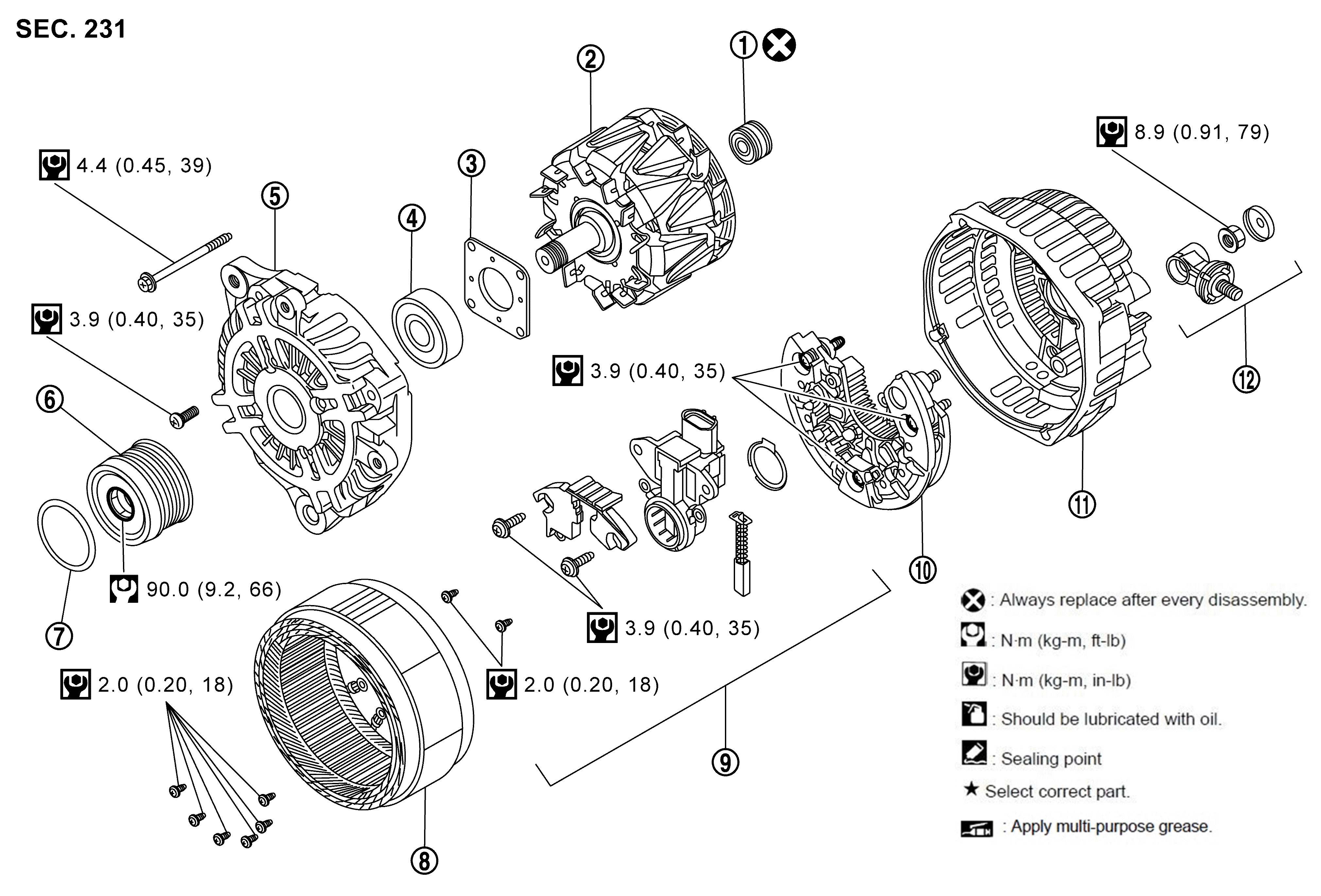

Fig 2: Alternator With Torque Specifications - Disassembly
GNSDB155305Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Rear bearing SYMBOL Rotor assembly SYMBOL Retainer
SYMBOL Front bearing SYMBOL Front bracket assembly SYMBOL Pulley
SYMBOL Pulley nut SYMBOL Stator assembly SYMBOL IC voltage regulator assembly
SYMBOL Diode assembly SYMBOL Rear bracket assembly SYMBOL Terminal set
SYMBOL : Always replace after every disassembly.
SYMBOL : N.m (kg-m, in-lb)
SYMBOL : N.m (kg-m, ft-lb)
