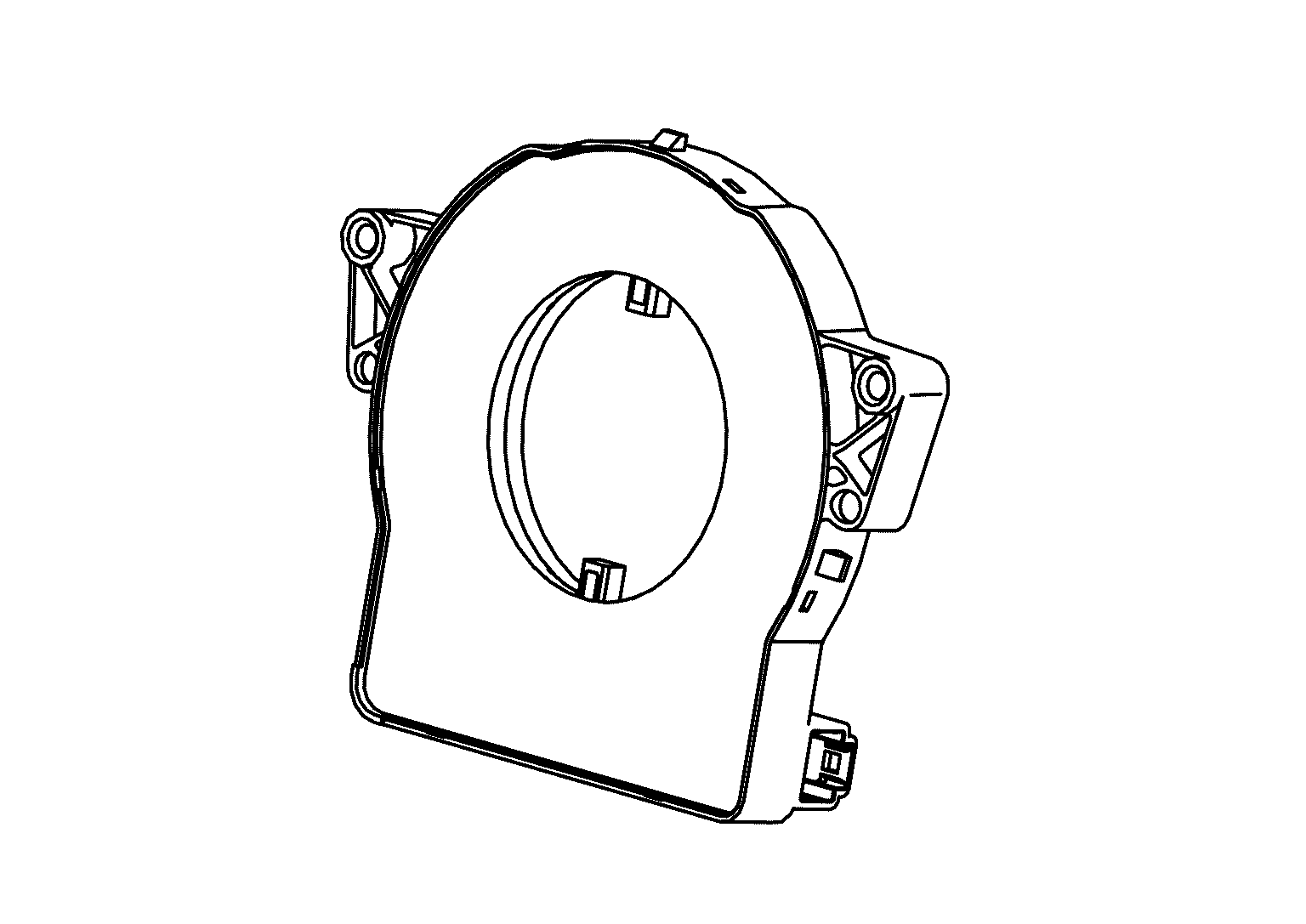

Steering Angle Sensor

FUNCTIONS WITHIN THE SYSTEM

Steering angle sensor transmits steering angle sensor signal to ABS actuator and electric unit (control unit) via CAN communication.

Courtesy of NISSAN NORTH AMERICA, INC.

INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM

Steering angle sensor detects the following status.

• Steering wheel rotation amount
• Steering wheel rotation angular velocity
• Steering wheel rotation direction

INDIVIDUAL OPERATION

Steering angle sensor converts the rotation amount, rotation angular velocity and rotation direction of the steering wheel as the steering angle sensor signal.

COMPONENT LOCATION

Refer to Component Location .
