Power Window Motor (Passenger Side)

Courtesy of NISSAN NORTH AMERICA, INC.

• The power window motor (passenger side) opens/closes the passenger side door glass when receiving the UP/DOWN signal from the power window switch (passenger side).

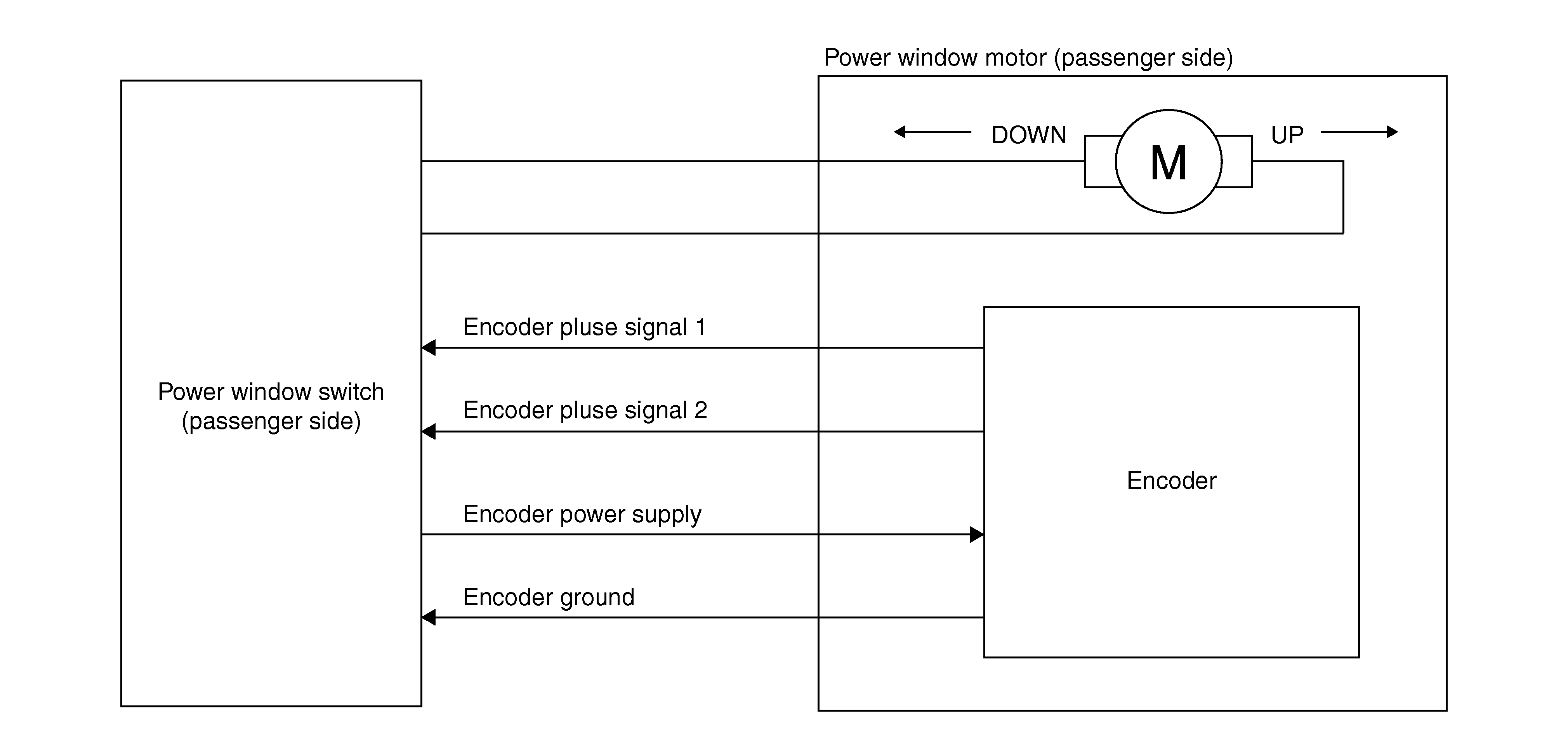

• The power window motor (passenger side) converts the motor rotation state into pulse signals and transmits them as encoder signal 1 and encoder signal 2 to the power window switch (passenger side).

INDIVIDUAL COMPONENT FUNCTION

Opens/closes door glass.

COMPONENT OPERATION

The power window motor (passenger side) opens/closes the passenger side door glass when receiving the UP/DOWN signal from the power window switch (passenger side).

Courtesy of NISSAN NORTH AMERICA, INC.

COMPONENT LOCATION

Power window motor (passenger side) is installed to door regulator. Refer to Component Location .
