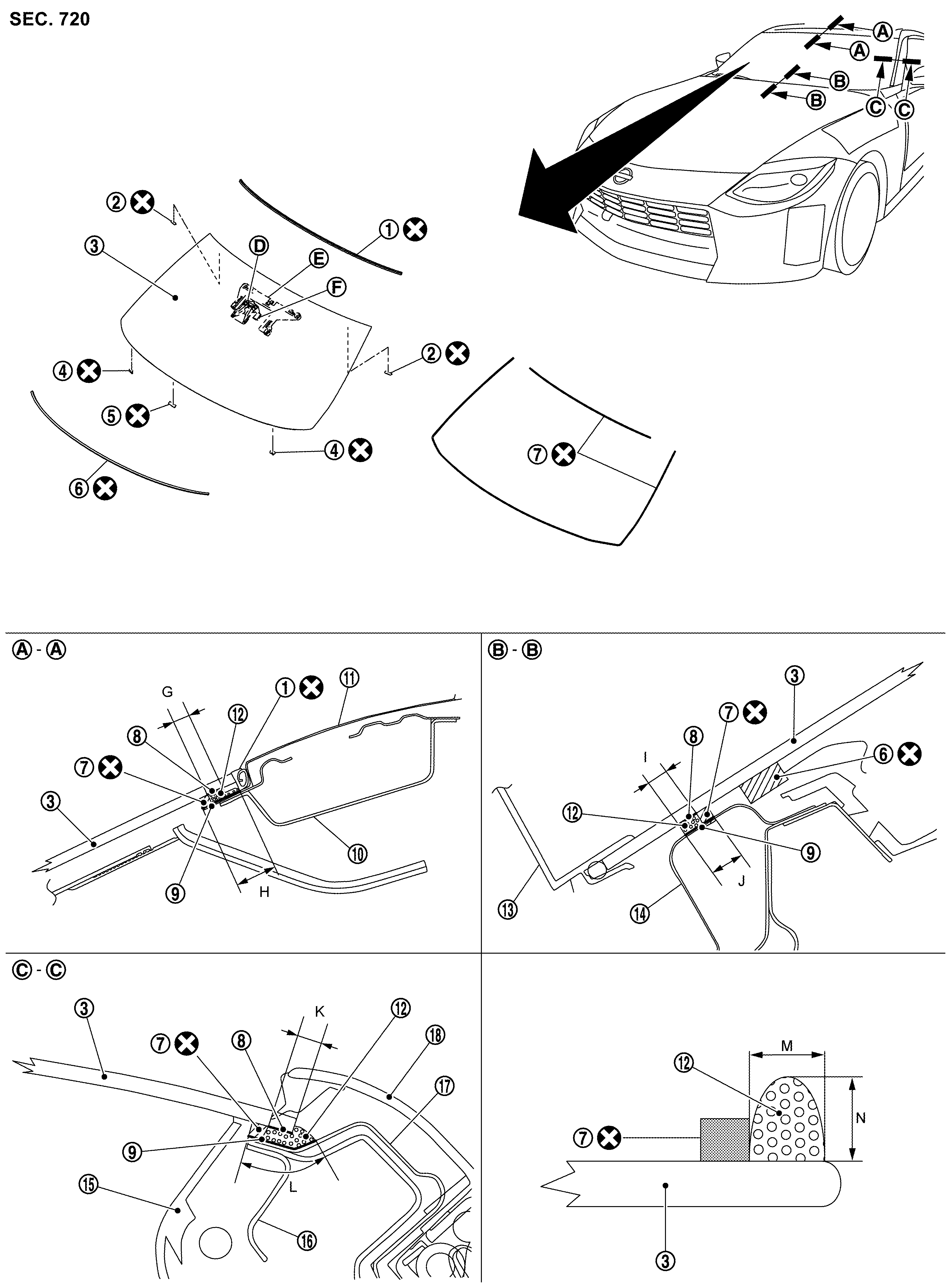

Exploded View

Courtesy of NISSAN NORTH AMERICA, INC.

	Windshield upper molding		Spacer A		Windshield glass assembly
	Spacer B		Spacer C		Windshield insulator
	Dam sealant rubber		Glass side primer		Painted surface primer
	Front roof rail		Roof assembly		Adhesive
	Cowl top cover LH		Dash upper cross member		Front pillar garnish
	Front pillar inner upper		Front pillar outer upper		Front pillar finisher
	: Front camera unit bracket *
	: Front camera unit cover bracket *
	: Inside mirror base *
	: Always replace after every disassembly.

*: Never disassemble because it is assembly parts with windshield glass. When need replace it, replace windshield glass assembly.

Unit: mm (in)

Portion			Primer range	Adhesive range
				M	N
Windshield glass - Roof panel	-	G	8.0 (0.31)	7.0 (0.28) +2.0 (0.08)	12.0 (0.47) +2.0 (0.08)
		H	20.0 (0.79)
Windshield glass - Front pillar outer upper	-	I	8.0 (0.31)
		J	20.0 (0.79)
Windshield glass - Cowl top cover LH	-	K	8.0 (0.31)
		L	20.0 (0.79)
