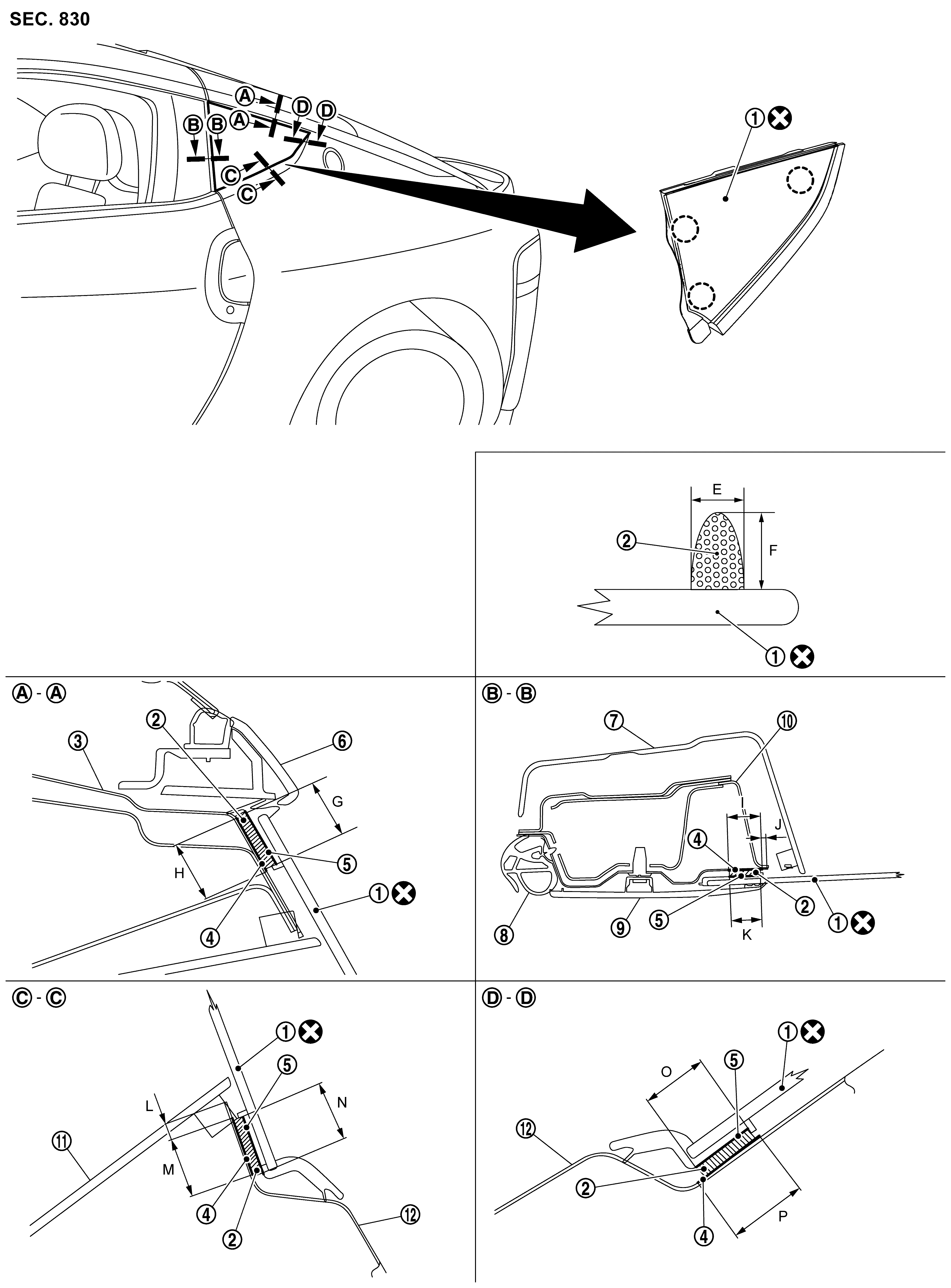

Exploded View
| Side window glass assembly | Adhesive | Rear fender | |||
| Painter surface primer | Glass surface primer | Rear fender molding | |||
| Rear pillar finisher | Body side weather-strip | Lock pillar finisher | |||
| Panel side inner | Rear pillar finisher | Rear fender | |||
| : Clip | |||||
| : Always replace after every disassembly. | |||||
Unit: mm (in)
| Portion | Primer range | Adhesive range | |||
|---|---|---|---|---|---|
| E | F | ||||
| Side window glass - Body side outer panel | G | 20.0 (0.79) | 7.0 (0.28) +2.0 (0.08) | 12.0 (0.47) +2.0 (0.08) | |
| H | 20.0 (0.79) | ||||
| I | 20.0 (0.79) | ||||
| J | 2.8 (0.11) | ||||
| K | 18.0 (0.71) | ||||
| L | 5.7 (0.22) | ||||
| M | 20.0 (0.79) | ||||
| N | 20.0 (0.79) | ||||
| H | 17.0 (0.67) | ||||
| I | 20.0 (0.79) | ||||
