Exploded View

REMOVAL

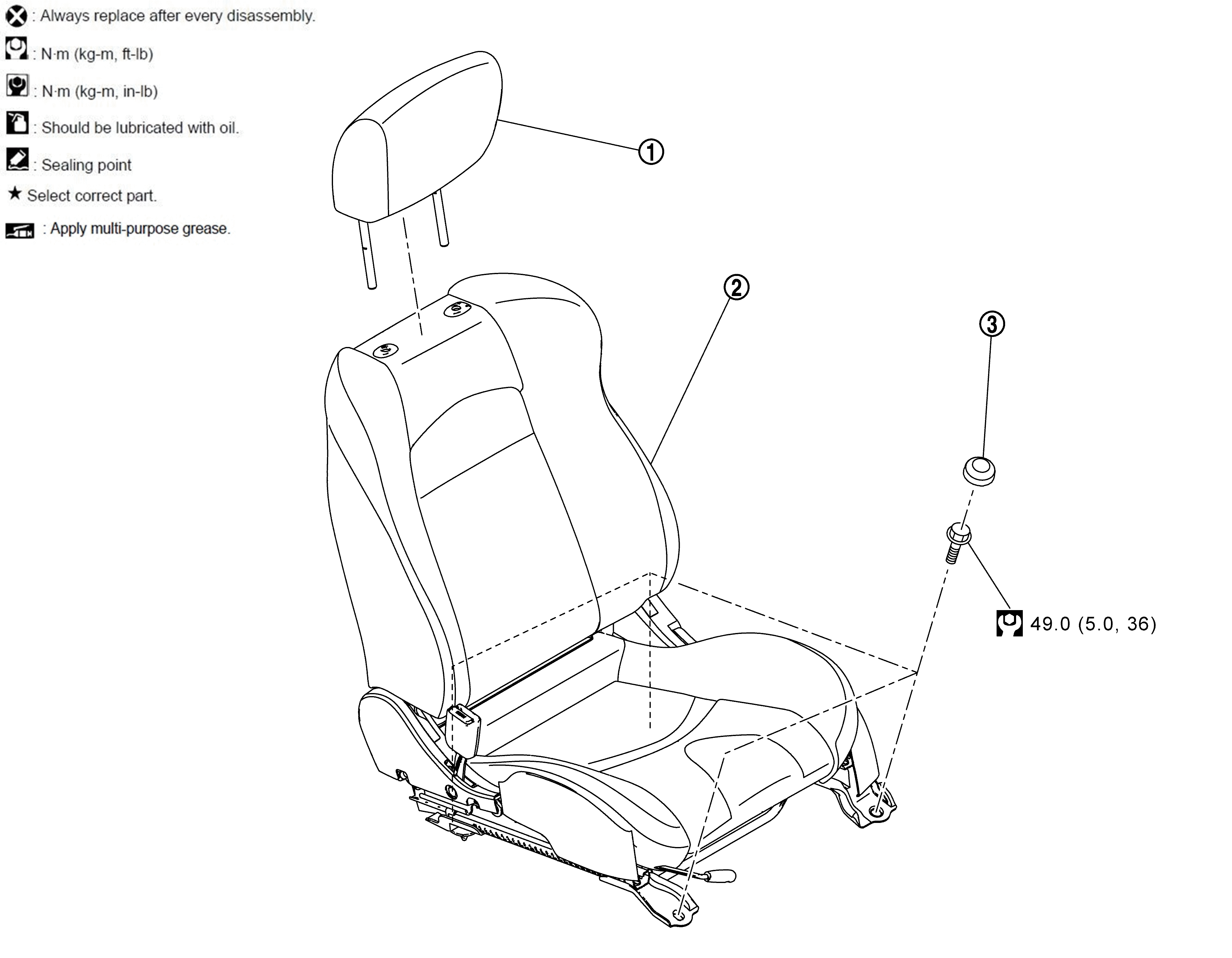

Fig 1: Front Seat With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Headrest		Front seat assembly		Bolt cap
	: N.m (kg-m, ft-lb)

DISASSEMBLY

Manual Seat (Driver Seat)

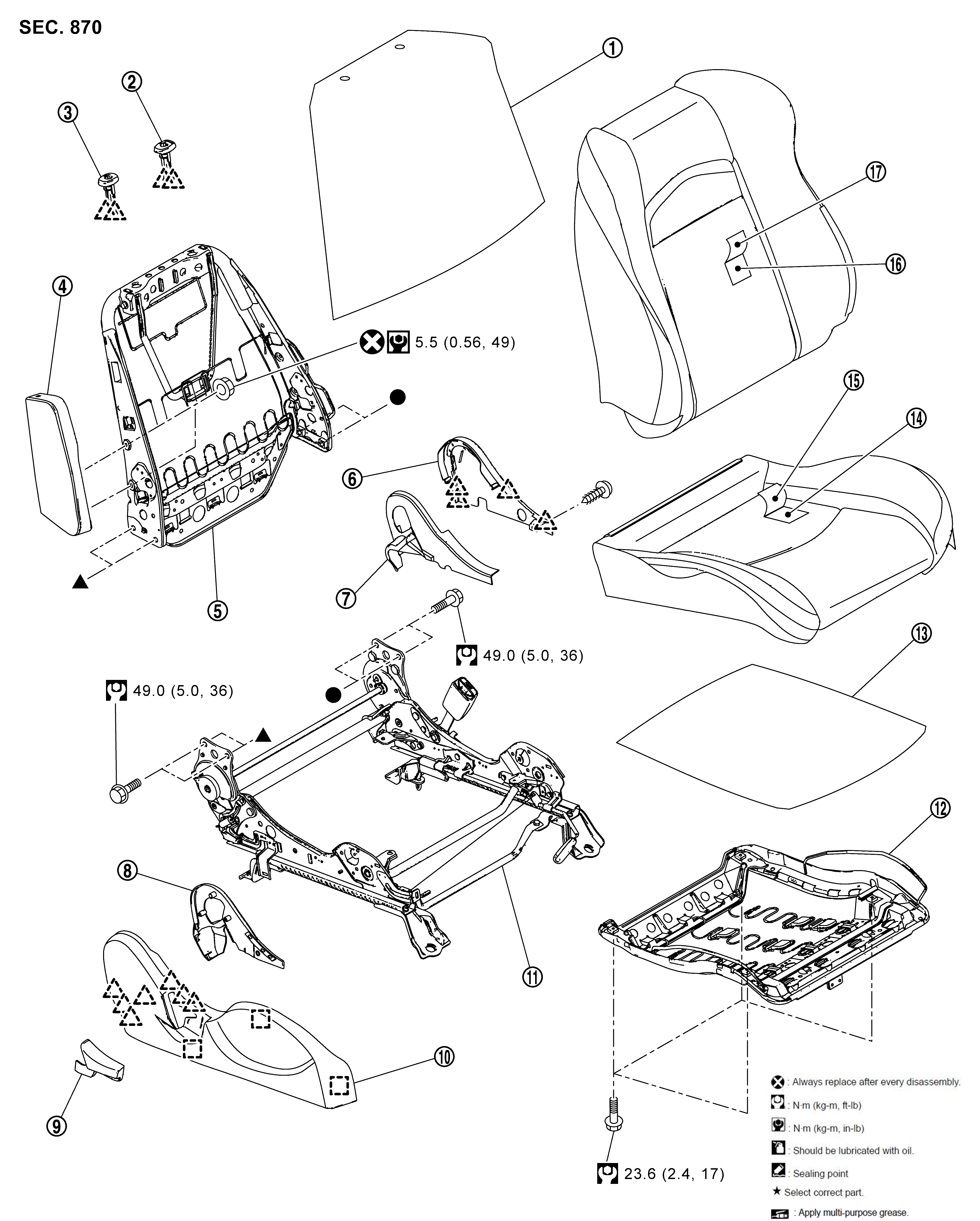

Fig 2: Manual Seat (Driver Seat) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Seatback silencer		Seatback trim		Seatback pad
	Seat cushion trim		Seat cushion pad		Seat cushion silencer
	Seat cushion frame		Harness bracket		Seat adjuster assembly
	Outside seat cushion finisher outer		Snap ring		Thigh support dial
	Lifter dial		Reclining knob		Outside seat cushion finisher inner
	Seatback frame		Inside seat cushion finisher inner		Inside seat cushion finisher outer
	Side air bag module		Headrest holder (lock)		Headrest holder (free)
	: Pawl
	: Metal clip
	: Always replace after every disassembly.
	: N.m (kg-m, in-lb)
	: N.m (kg-m, ft-lb)
, : Indicates that the part is connected at points with same symbol in actual vehicle.

Manual Seat (Passenger Seat)

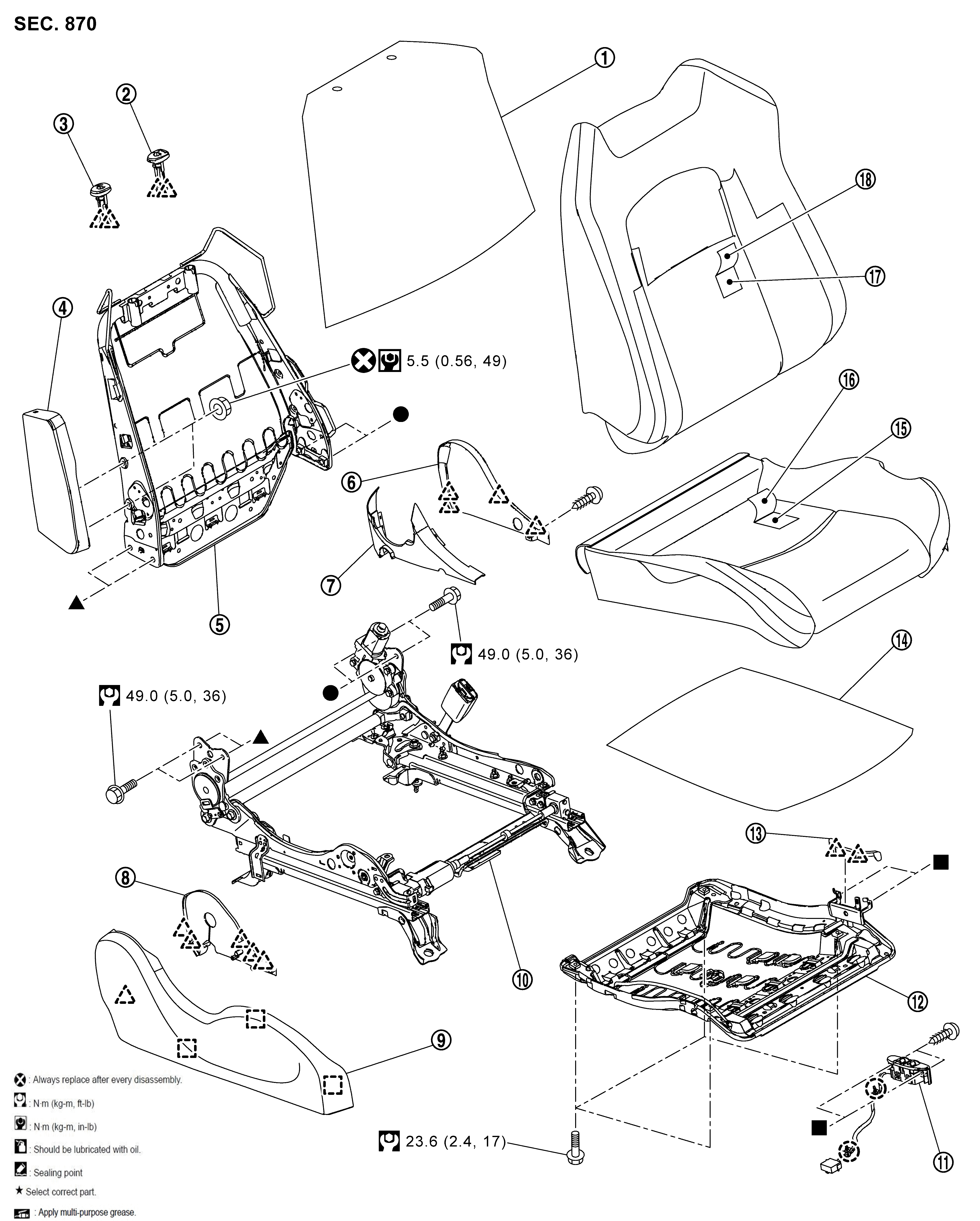

Fig 3: Manual Seat (Passenger Seat) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Seatback silencer		Headrest holder (lock)		Headrest holder (free)
	Side air bag module		Seatback frame		Inside seat cushion finisher outer
	Inside seat cushion finisher inner		Outside seat cushion finisher inner		Reclining knob
	Outside seat cushion finisher outer		Seat adjuster assembly		Seat cushion frame
	Seat cushion silencer		Seat cushion pad		Seat cushion trim
	Seatback pad		Seatback trim
	: Pawl
	: Metal clip
	: Always replace after every disassembly.
	: N.m (kg-m, in-lb)
	: N.m (kg-m, ft-lb)
, : Indicates that the part is connected at points with same symbol in actual vehicle.

Power Seat (Driver Seat)

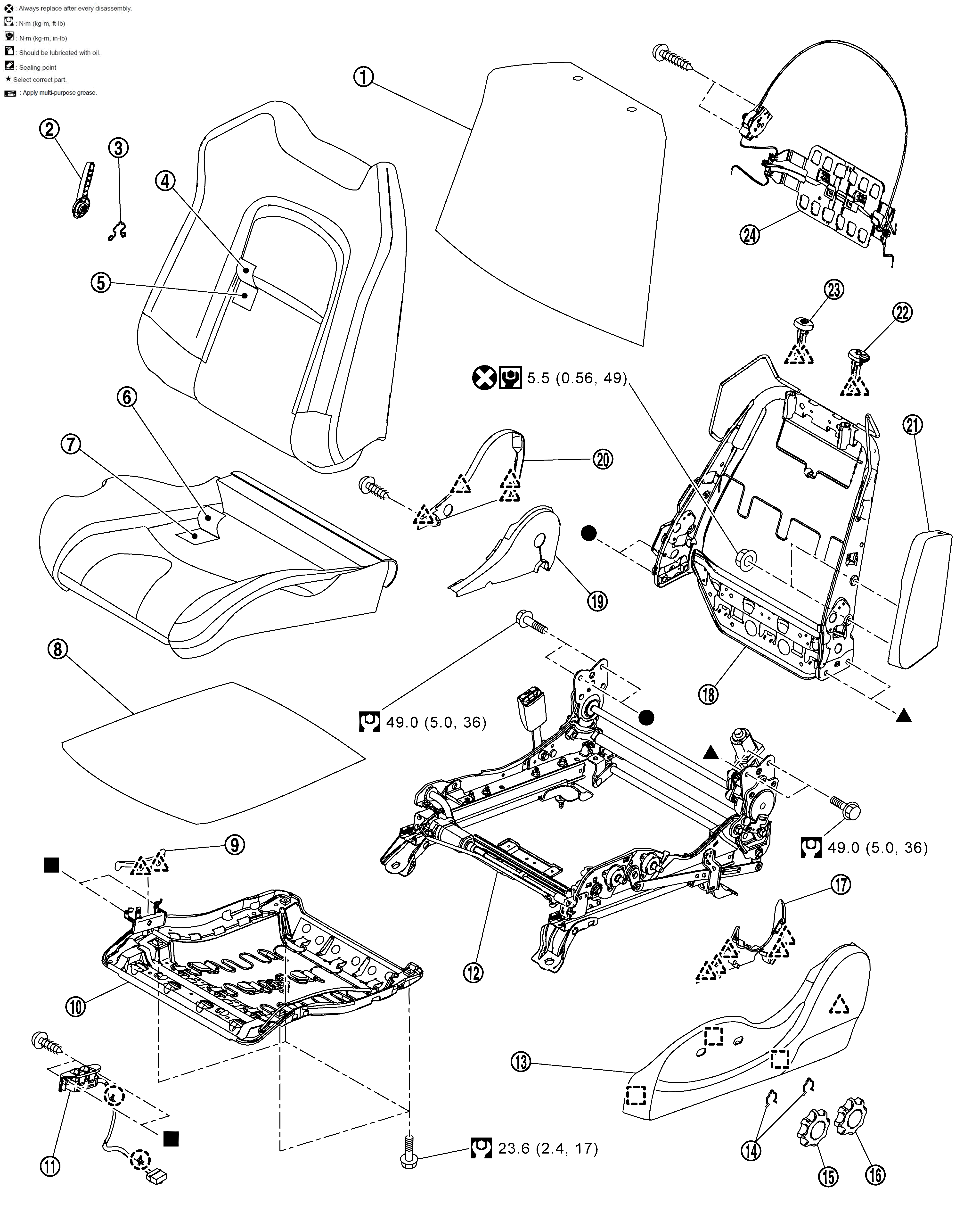

Fig 4: Power Seat (Driver Seat) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Seatback silencer		Lumbar support lever knob		Snap ring
	Seatback trim		Seatback pad		Seat cushion trim
	Seat cushion pad		Seat cushion silencer		Switch bracket cover
	Seat cushion frame		Power seat switch		Seat adjuster assembly
	Outside seat cushion finisher outer		Snap ring		Thigh support dial
	Lifter dial		Outside seat cushion finisher inner		Seatback frame
	Inside seat cushion finisher inner		Inside seat cushion finisher outer		Side air bag module
	Headrest holder (lock)		Headrest holder (free)		Lumbar support unit
	: Clip
	: Pawl
	: Metal clip
	: Always replace after every disassembly.
	: N.m (kg-m, in-lb)
	: N.m (kg-m, ft-lb)
, : Indicates that the part is connected at points with same symbol in actual vehicle.

Power Seat (Passenger Seat)

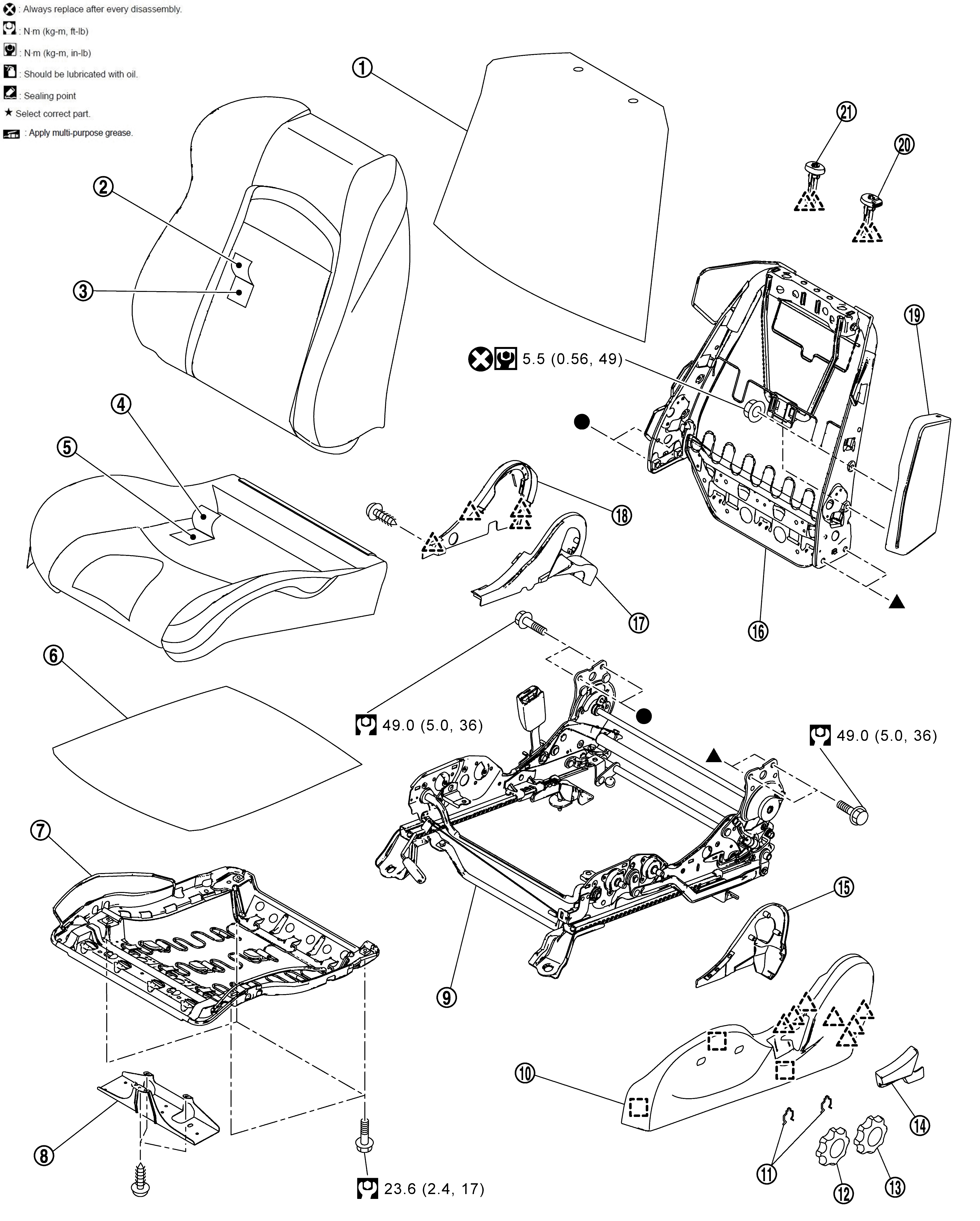

Fig 5: Power Seat (Passenger Seat) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Seatback silencer		Headrest holder (lock)		Headrest holder (free)
	Side air bag module		Seatback frame		Inside seat cushion finisher outer
	Inside seat cushion finisher inner		Outside seat cushion finisher inner		Outside seat cushion finisher outer
	Seat adjuster assembly		Power seat switch		Seat cushion frame
	Switch bracket cover		Seat cushion silencer		Seat cushion pad
	Seat cushion trim		Seatback pad		Seatback trim
	: Clip
	: Pawl
	: Metal clip
	: Always replace after every disassembly.
	: N.m (kg-m, in-lb)
	: N.m (kg-m, ft-lb)
, : Indicates that the part is connected at points with same symbol in actual vehicle.
