Exploded View

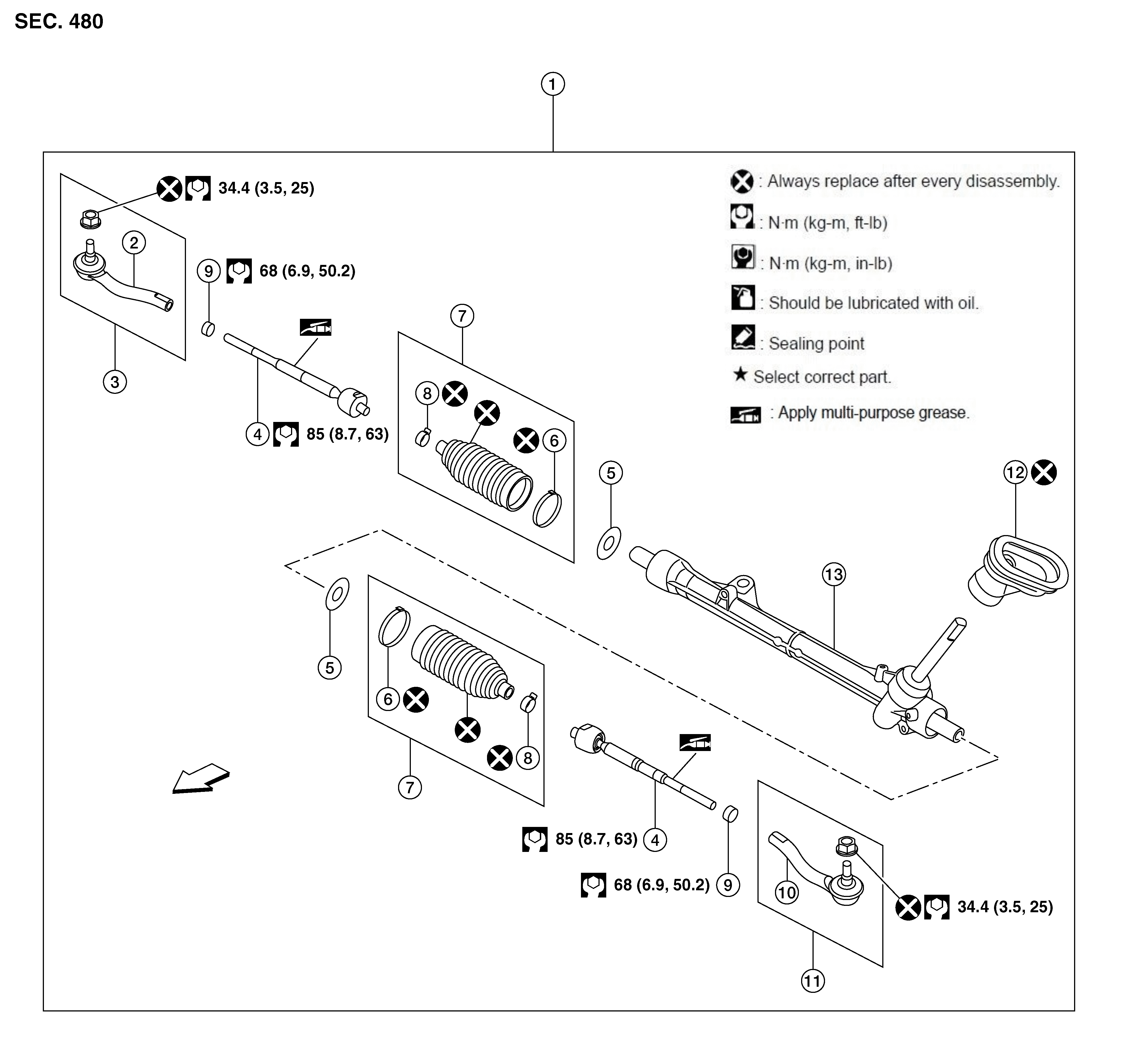

Fig 1: Steering Gear and Linkage Components with Torque Specifications
GNSDB54546Courtesy of NISSAN
1. Steering gear and linkage assembly 2. Outer socket (RH) 3. Outer socket kit (RH)
4. Inner socket 5. Spacer 6. Large boot clamp
7. Boot kit 8. Small boot clamp 9. Lock nut
10. Outer socket (LH) 11. Outer socket kit (LH) 12. Hole cover
13. Steering gear SYMBOL Front
