Exploded View

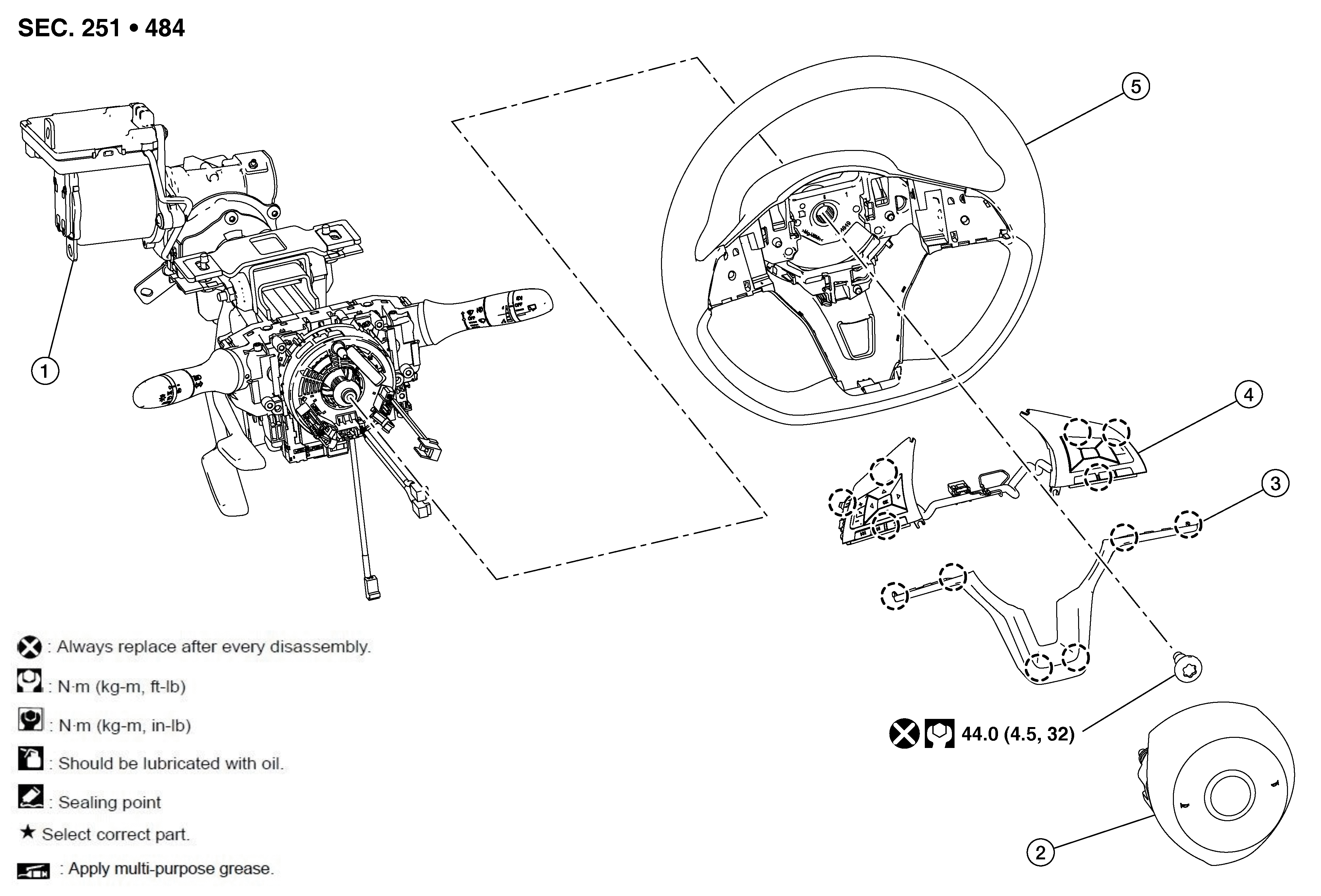

Fig 1: Steering Wheel Components with Torque Specifications

GNSDB51975

Courtesy of NISSAN

1.	Steering column assembly	2.	Driver air bag module	3.	Finisher
4.	ASCD/ICC steering switches	5.	Steering wheel		Pawl
