Component Location

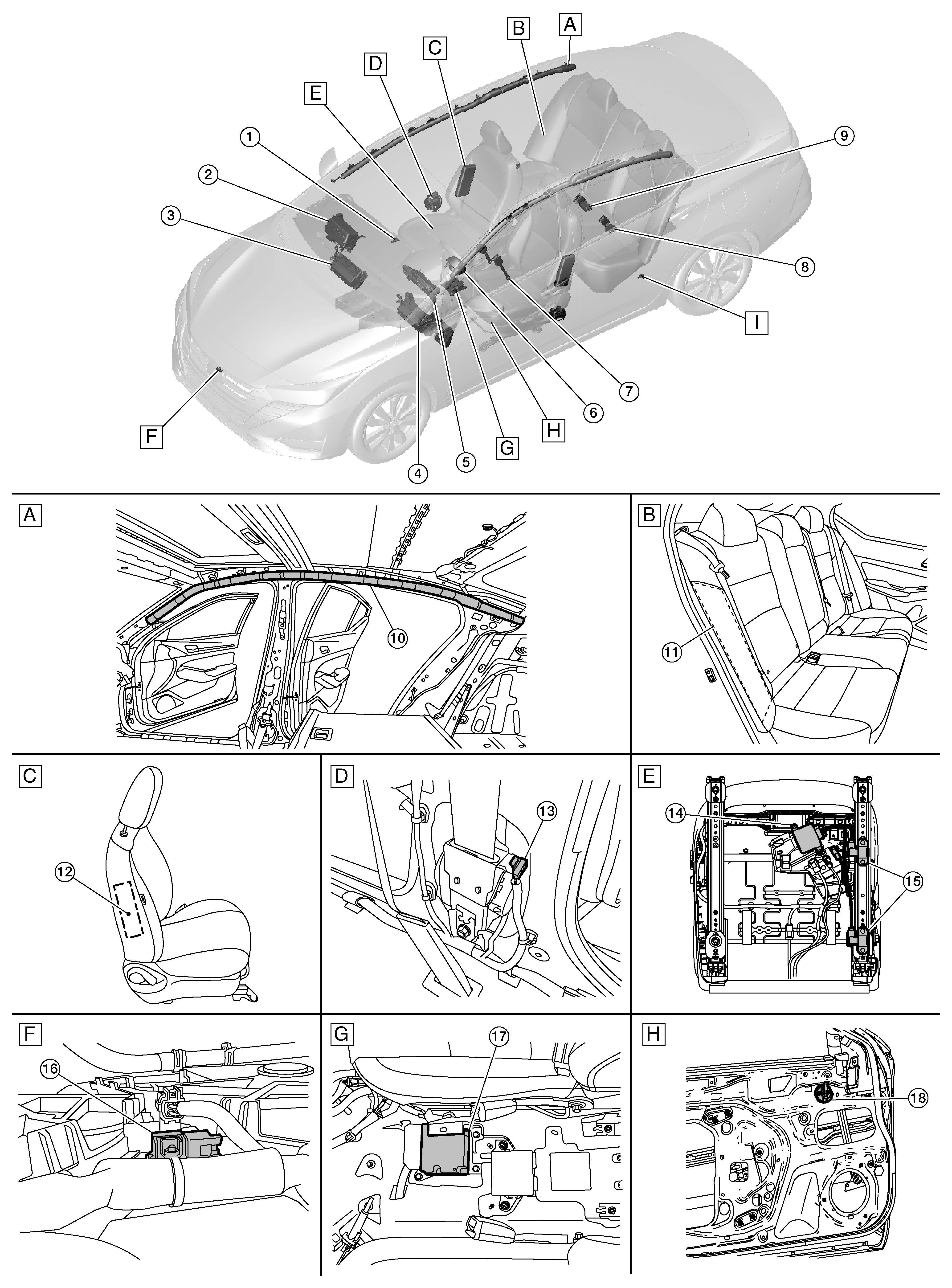

GNSDB54291Courtesy of NISSAN

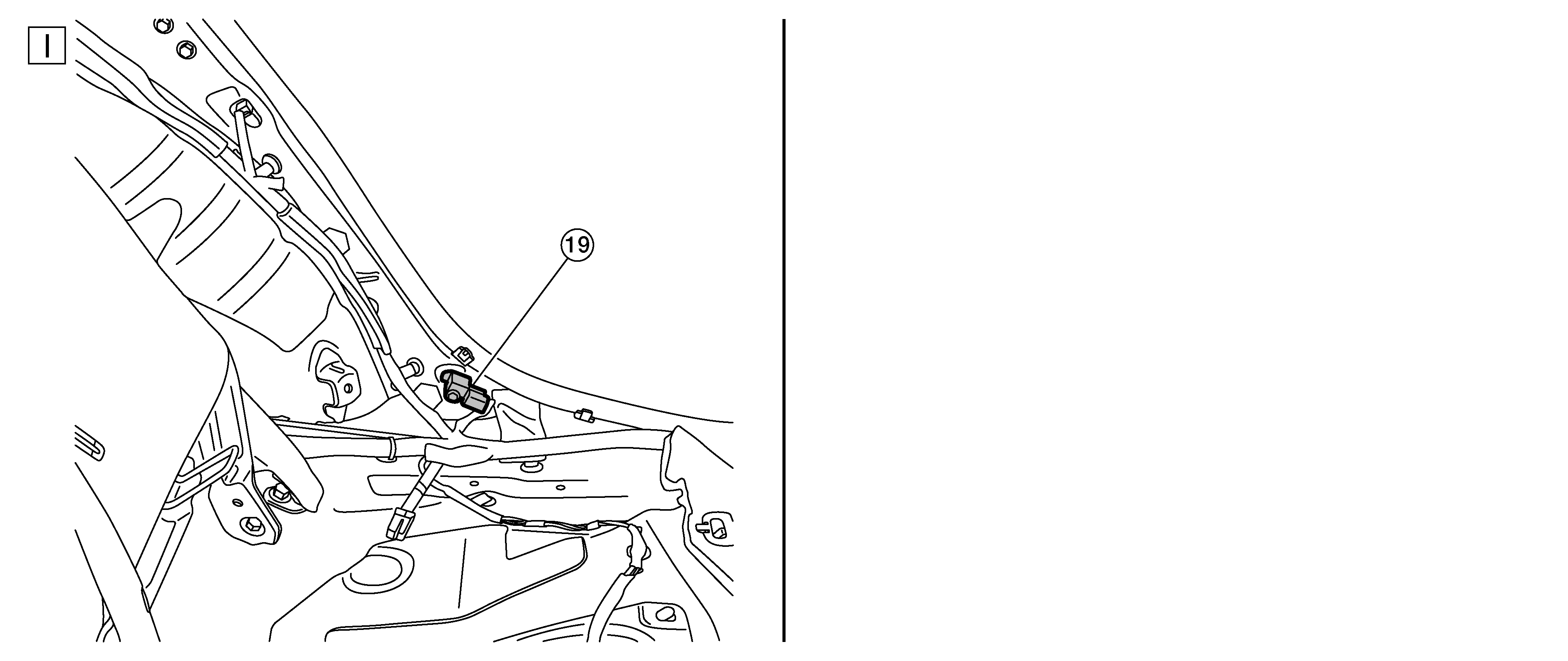

GNSDB54423Courtesy of NISSAN
A. Right side of roof line (view with headliner removed) B. Right of rear passenger seat C. Front passenger seat (view with front passenger seat removed)
D. Right of front passenger seat (view with the lower B-pillar finisher removed) E. Bottom of front passenger seat(view with front passenger seat removed) F. Radiator core support assembly
G. Between driver and passenger seat (view with center console removed) H. Driver door area (view with front door finisher LH removed) I. Left of rear passenger seat (view with lower C-pillar finisher removed)
No. Component Function
1. Front passenger air bag off indicator Refer to Front Passenger Air Bag Off Indicator .
2. Front passenger air bag module Refer to Front Passenger Air Bag Module .
3. Knee air bag module RH Refer to Knee Air Bag Module .
4. Knee air bag module LH
5. Combination meter Displays air bag and seat belt information to the driver.
6. Driver air bag module Refer to Driver Air Bag Module .
7. Seat belt buckle switch LH (RH similar) Refer to Seat Belt Buckle Switch .
8. Rear seat belt buckle switch LH Transmits the rear seat belt buckle switch LH signal to the air bag diagnosis sensor unit.
9. Rear seat belt buckle switch RH and center Transmits the rear seat belt buckle switch RH and center signal to the air bag diagnosis sensor unit.
10. Side curtain air bag module RH (LH similar) Refer to Side Curtain Air Bag Module .
11. Rear side air bag module RH (LH similar) Refer to Rear Side Air Bag Module .
12. Front side air bag module RH (LH similar) Refer to Front Side Air Bag Module .
13. Front RH seat belt pre-tensioner (LH similar) Refer to Front Seat Belt Pre-tensioner .
14. Occupant classification system control unit Refer to System Description .
15. Occupant classification system sensors Refer to System Description .
16. Crash zone sensor Refer to Crash Zone Sensor .
17. Air bag diagnosis sensor unit Refer to Air Bag Diagnosis Sensor Unit .
18. Front door satellite sensor LH (RH similar) Refer to Front Door Satellite Sensor .
19. Rear side air bag satellite sensor LH (RH similar) Refer to Rear Side Air Bag Satellite Sensor .
