Exploded View

EXPLODED VIEW

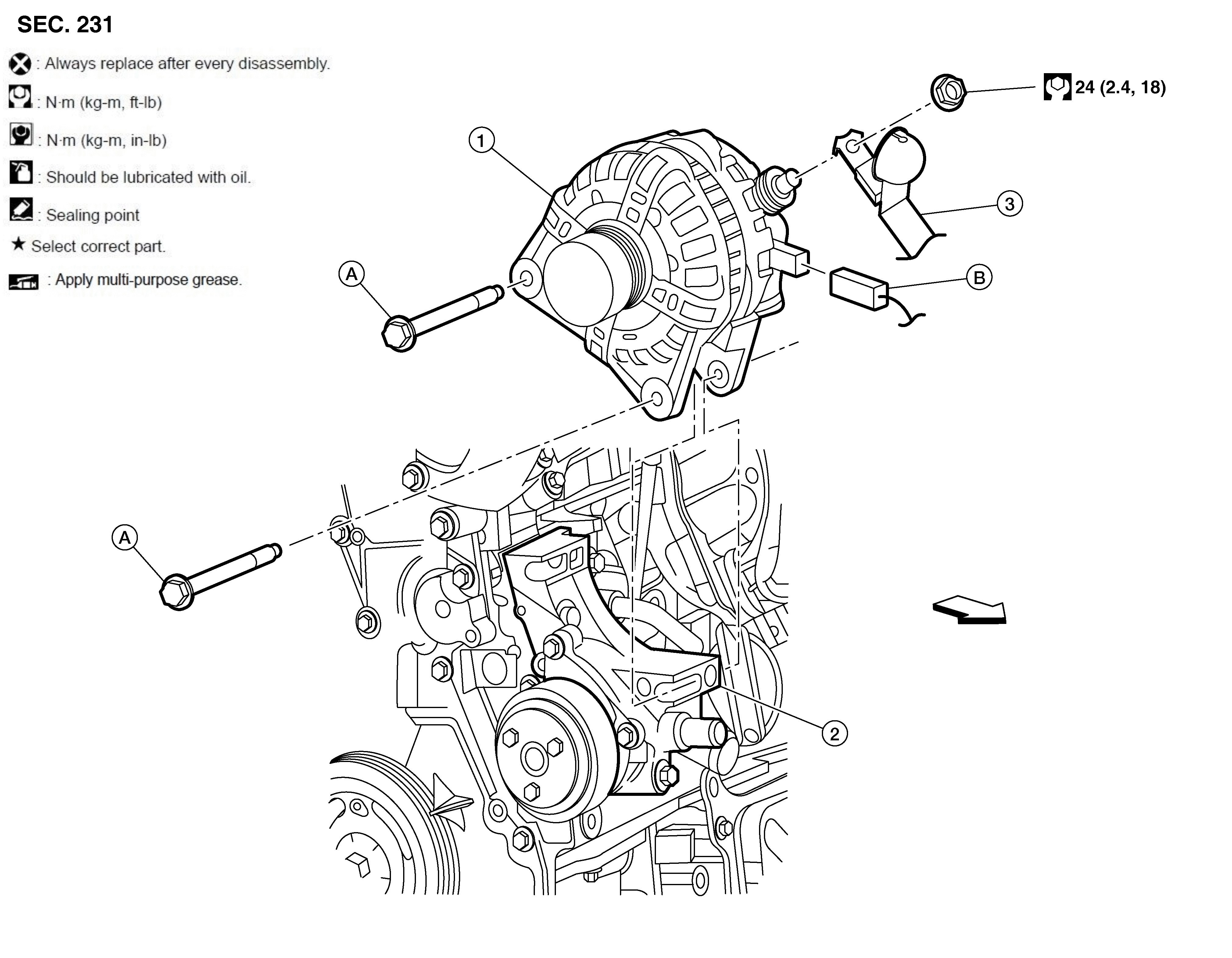

Fig 1: Generator Components with Torque Specifications
GNSDB54623SYMBOLCourtesy of NISSAN
1. Generator 2. Water pump housing 3. "B" terminal harness
A. Refer to Removal and Installation . B. Harness connector   SYMBOL Front
