Component Location

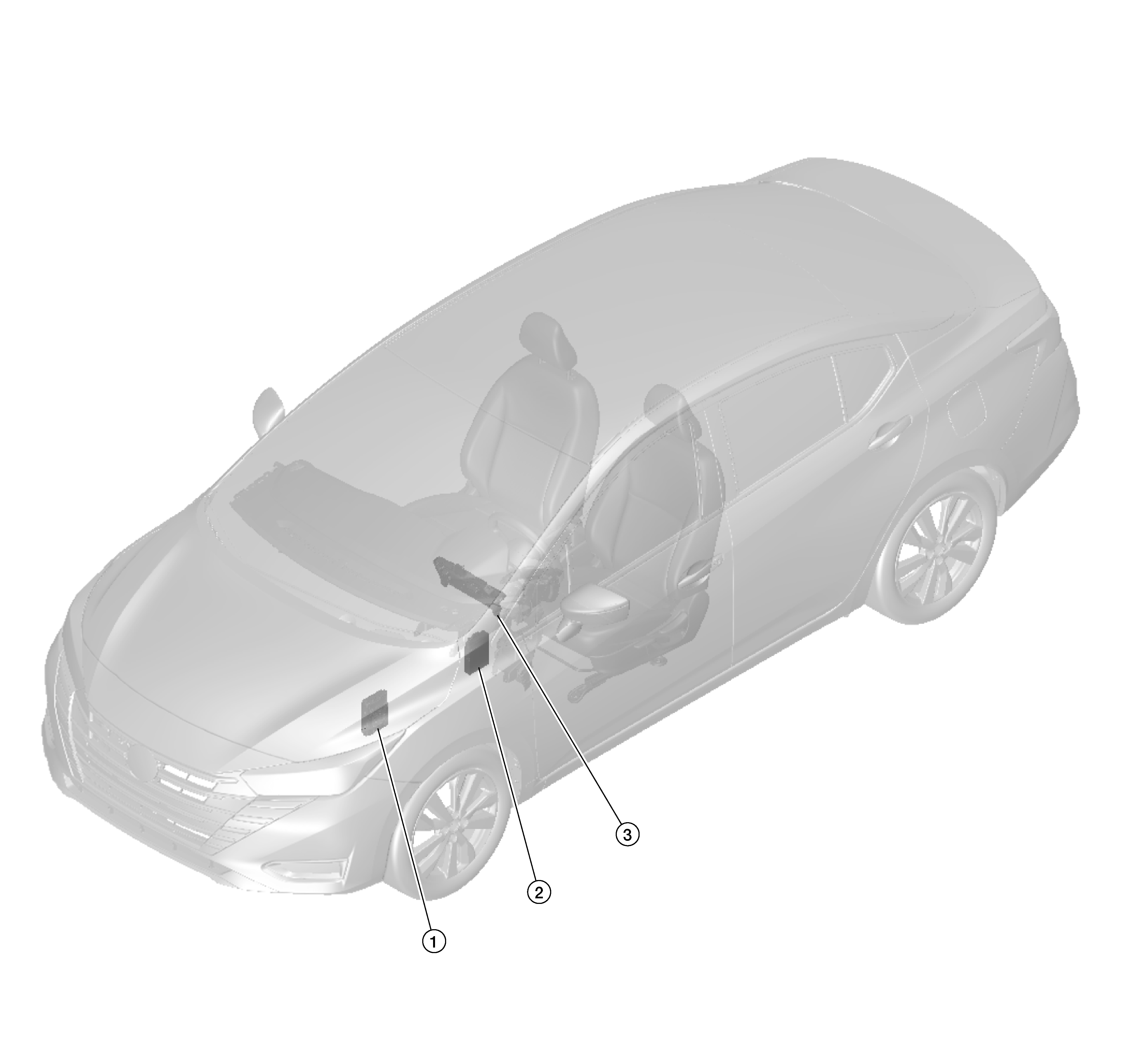

GNSDB54401Courtesy of NISSAN
No. Component Function
1. IPDM E/R (Intelligent Power Distribution Module Engine Room) Refer to System Description .
2. BCM (Body Control Module) Refer to System Description .
3. Combination meter Refer to Combination Meter (type A) or Combination Meter (type B) for detail component location.
