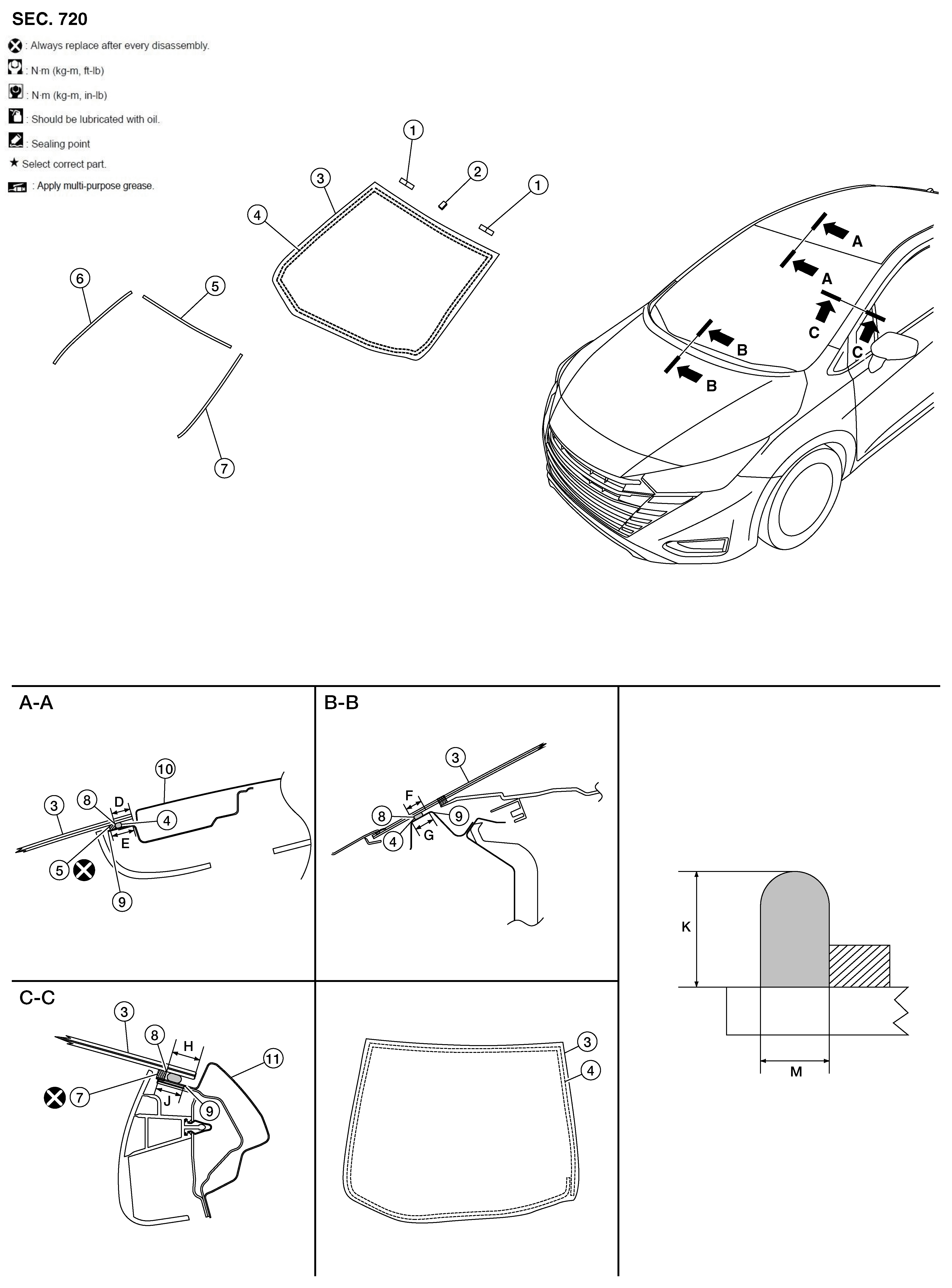

Exploded View
Unit: mm (in)
| 1. | Spacer | 2. | Inside mirror base | 3. | Windshield glass |
| 4. | Adhesive | 5. | Dam sealant rubber (upper) | 6. | Dam sealant rubber (RH) |
| 7. | Dam sealant rubber (LH) | 8. | Glass primer | 9. | Body primer |
| 10. | Roof panel | 11. | Body side outer panel | D. | 17.0 mm (0.6 in) |
| E. | 25.5 mm (1.0 in) | F. | 20.0 mm (0.7 mm) | G. | 24.4 mm (0.9 in) |
| H. | 17.0 mm (0.6 in) | J. | 17.0 mm (0.6 in) | K. | 12 + 2, 0 mm (0.4 + 0.07, 0 in) |
| M. | 7 + 2, 0 mm (0.2 + 0.07, 0 in) |
