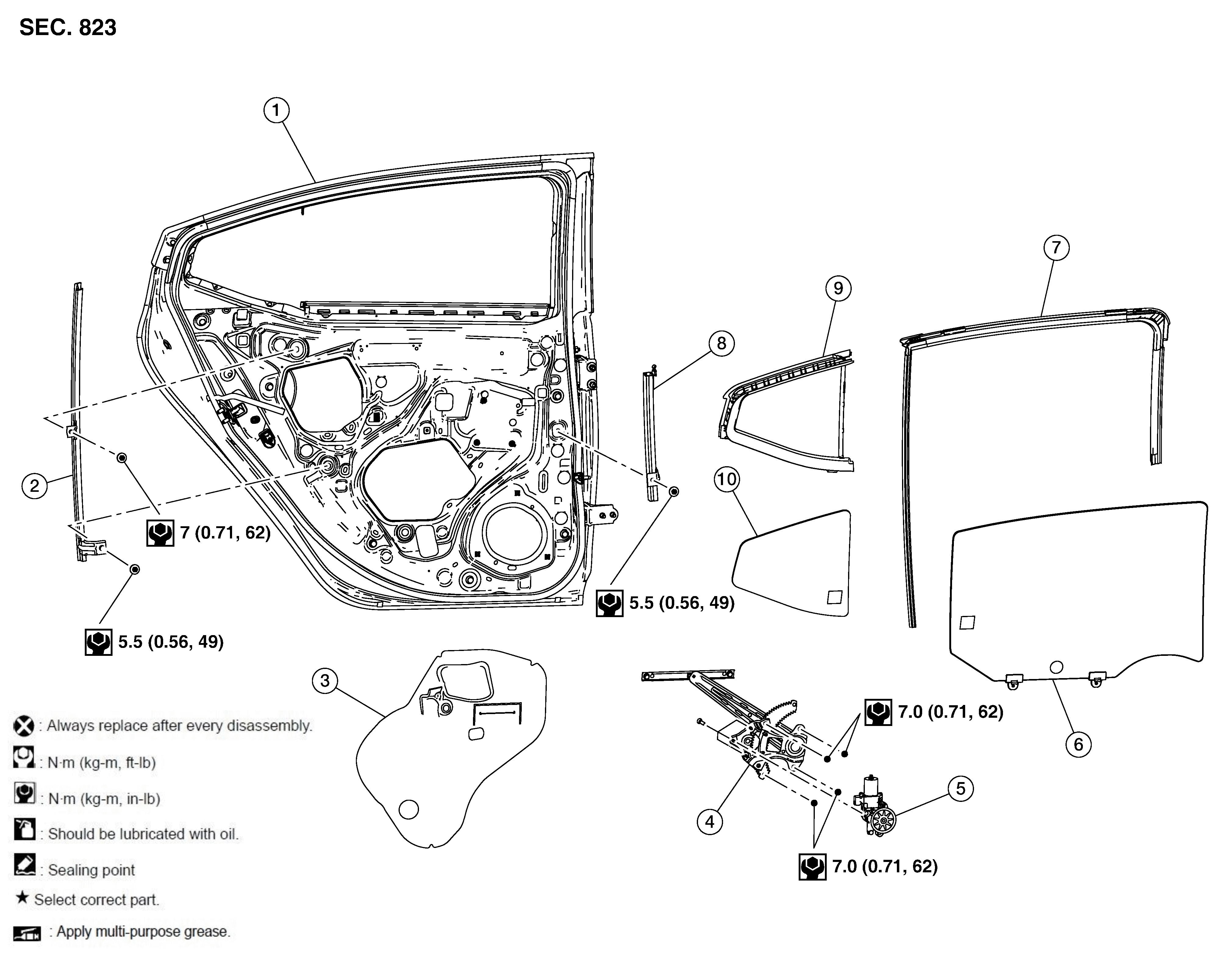

Exploded View

GNSDB54228Courtesy of NISSAN
1. Rear panel 2. Door glass rear run 3. Vapor barrier
4. Door glass regulator 5. Rear door power window motor 6. Door glass
7. Door glass rubber run 8. Door glass front run 9. Partition weather-strip
10. Partition glass
