Front Regulator
>>

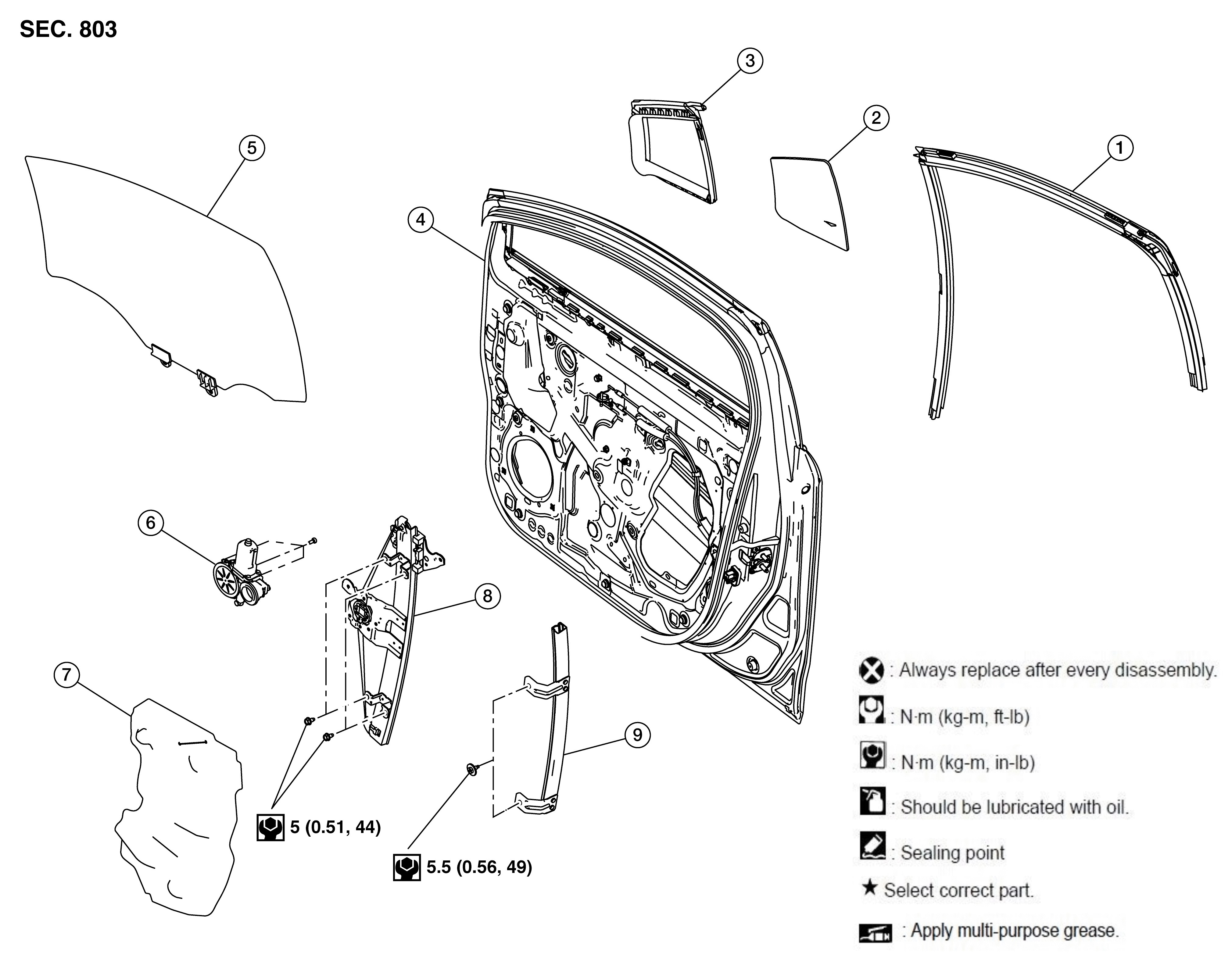

Exploded View
Exploded View
Courtesy of NISSAN
1.
Door glass rubber run
2.
Front partition glass
3.
Front partition weather-strip
4.
Front door
5.
Door glass
6.
Front power window motor
7.
Vapor barrier
8.
Door glass regulator
9.
Door glass rear run
