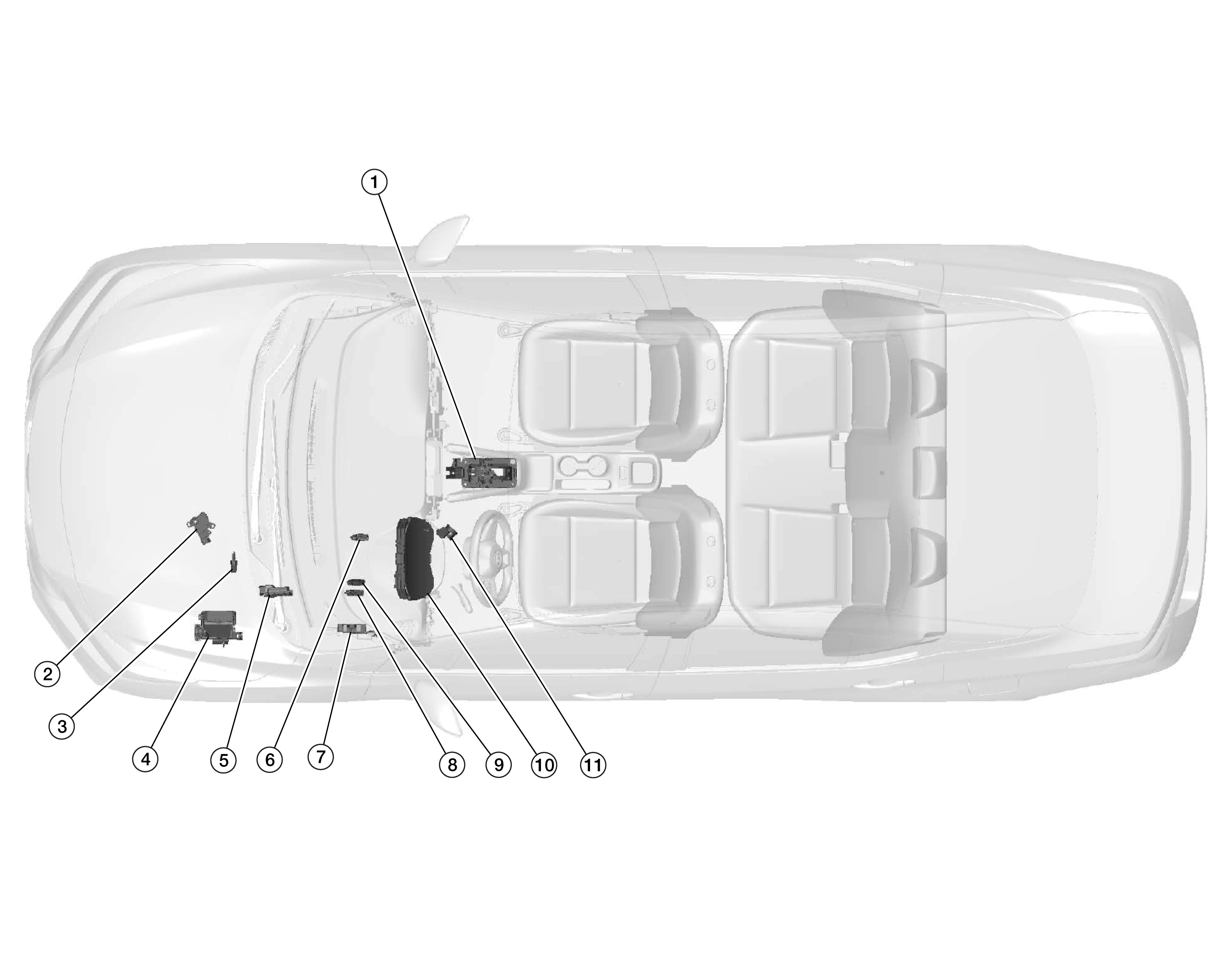

| 1. |
CVT shift selector (detent switch) (with CVT) |
CVT shift selector detects the shift lever status and transmits detent switch signal status to the Intelligent Key unit. Refer to Component Location
for detailed component location. |
| 2. |
Transmission range switch(with CVT) |
Supplies power to the starter cut relay (inside IPDM E/R) when the CVT shift selector is shifted into the P or N position. Refer to Component Location
for detailed component location. |
| 3. |
Park/neutral position (PNP) switch (neutral switch) (with MT) |
Park/neutral position (PNP) switch (neutral switch) detects that the Transmission is in the neutral position, and transmits the signal to the BCM. |
| 4. |
IPDM E/R (Intelligent Power Distribution Module Engine Room) |
IPDM E/R detects hood open/closed signal and controls horns when horn chirp is required. Refer to Component Location
for detailed component location. |
| 5. |
ECM (Engine Control Module) |
ECM Sends transmission gear position to the BCM. Refer to Component Location
for detailed component location. |
| 6. |
Stop lamp switch |
Stop lamp switch detects that the brake pedal is depressed, and transmits the signal to the BCM. Refer to Stop lamp switch
for detailed component location. |
| 7. |
BCM (Body Control Module) |
BCM controls the door lock actuators. Refer to Component Location
for detailed component location. |
| 8. |
Clutch pedal position switch(with MT) |
Clutch pedal position switch detects that the clutch pedal is depressed, and transmits the signal to the BCM. |
| 9. |
Clutch interlock switch(with MT) |
Clutch interlock switch detects that clutch pedal is depressed, then provides power source to starter control relay and starter relay, and transmits ON/OFF signal to BCM. |
| 10. |
Combination meter |
- Combination meter transmits the vehicle speed signal to BCM via CAN communication.
- BCM also receives the vehicle speed signal from ABS actuator and electric unit (control unit) via CAN communication. BCM compares both signals to detect the vehicle speed.
- Security indicator lamp is located on combination meter.
- Security indicator lamp blinks when ignition switch is in any position other than ON to warn that NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] is on board.
Refer to Component Location
for detailed component location. |
| 11. |
NATS antenna amp. |
Refer to NATS Antenna Amp. |
