Exploded View
Exploded View

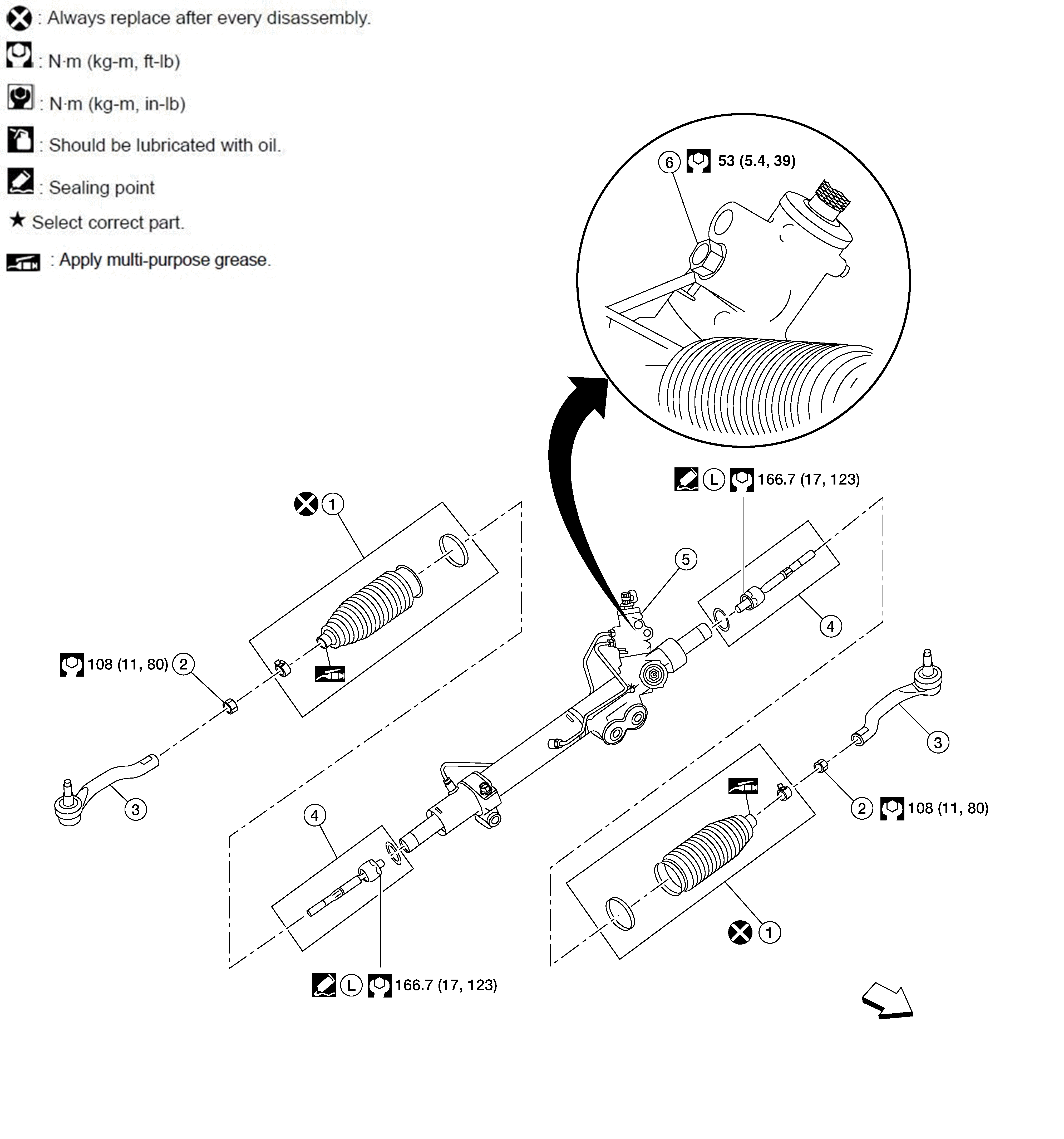

Fig 1: Steering Gear And Linkage With Torque Specifications - Non-XD Models
Courtesy of NISSAN
1.
Boot
2.
Lock nut
3.
Outer socket
4.
Inner socket
5.
Steering gear
6.
Check valve insert
Front
Courtesy of NISSAN
