Exploded View

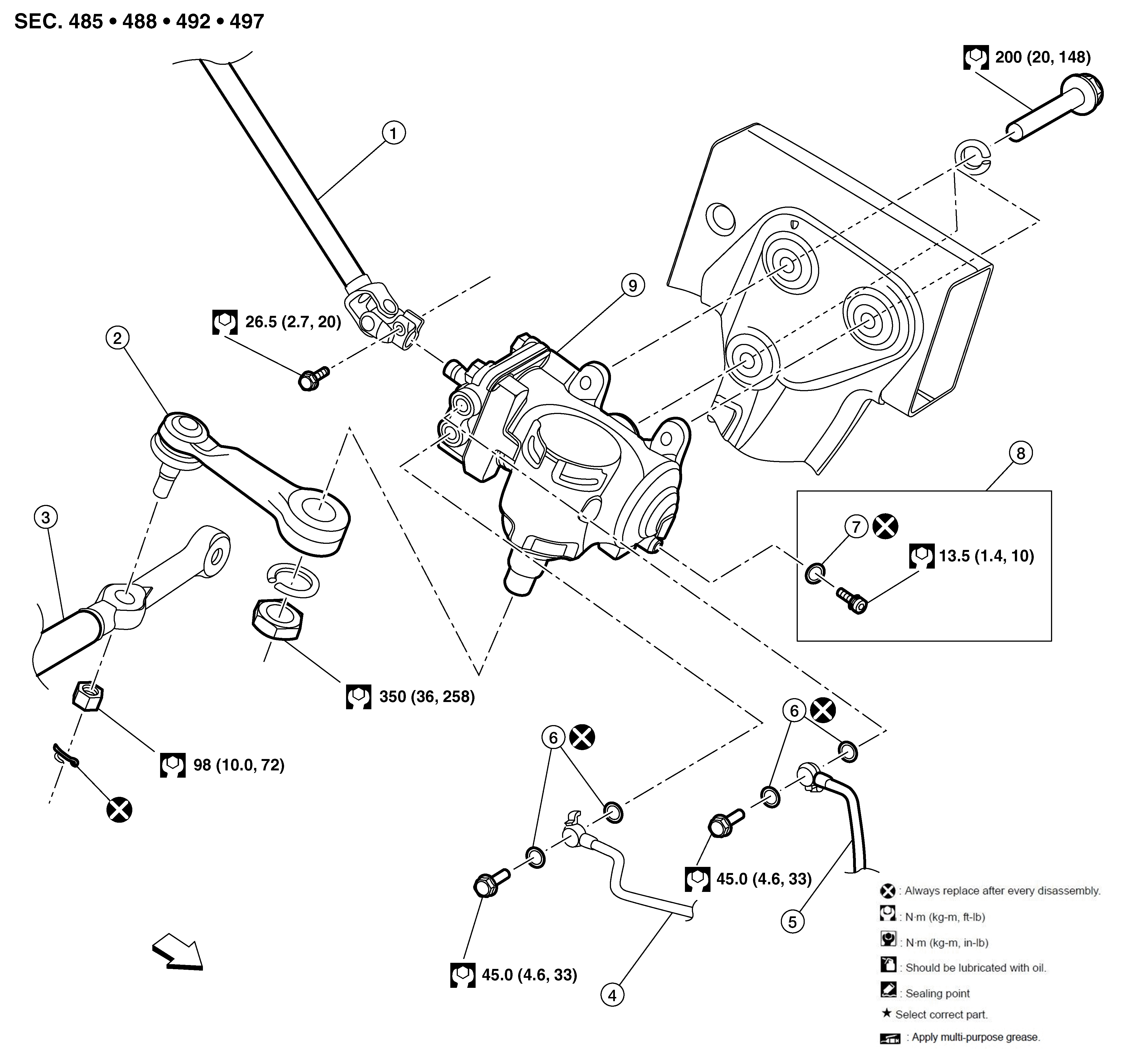

Fig 1: Steering Box With Torque Specifications - XD Models
GNSDB50393Courtesy of NISSAN
1. Steering lower joint 2. Pitman arm 3. Relay rod
4. Power steering return line 5. Power steering pressure line 6. Copper sealing washer
7. Drain plug o-ring 8. Drain plug 9. Steering box
SYMBOL Front
