Exploded View

XD Models

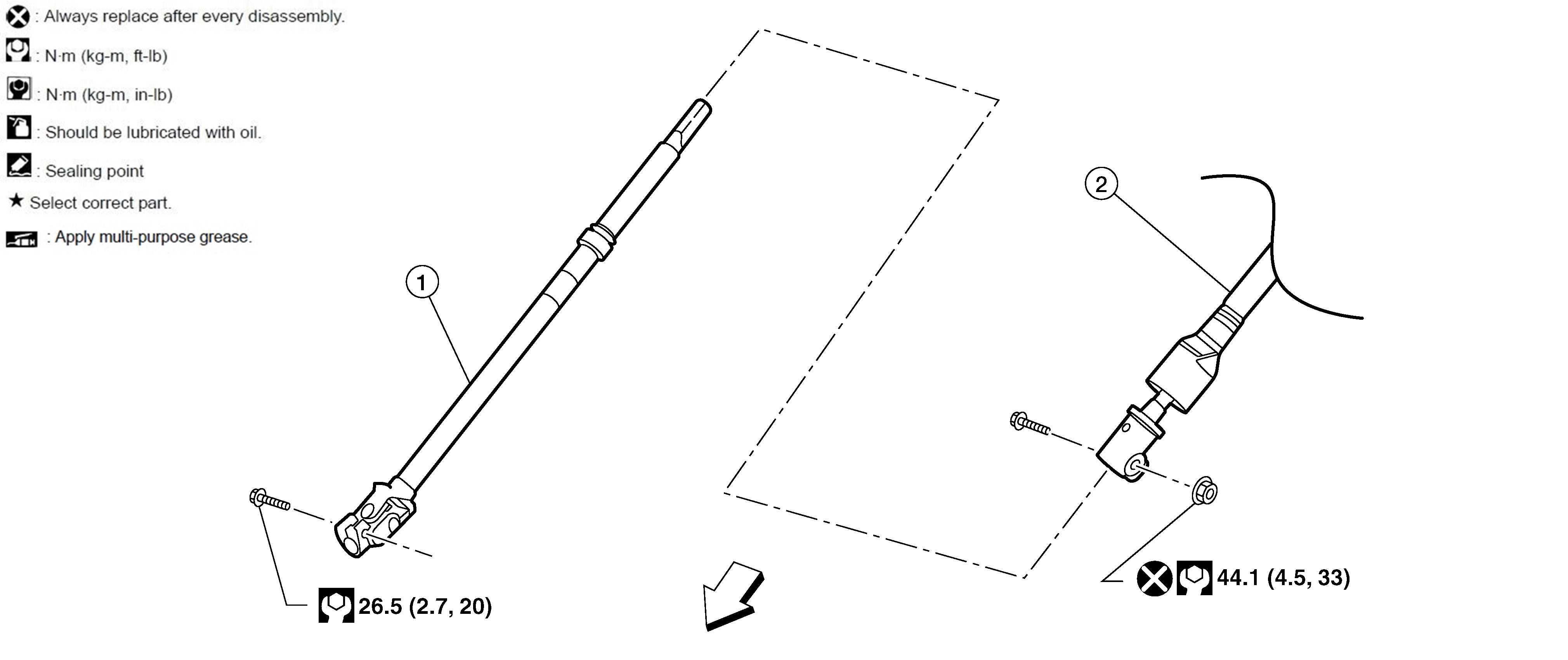

Fig 1: Lower Joint With Torque Specifications - XD Models
GNSDB50746Courtesy of NISSAN
1. Lower joint 2. Intermediate shaft SYMBOL Front

Non-XD Models

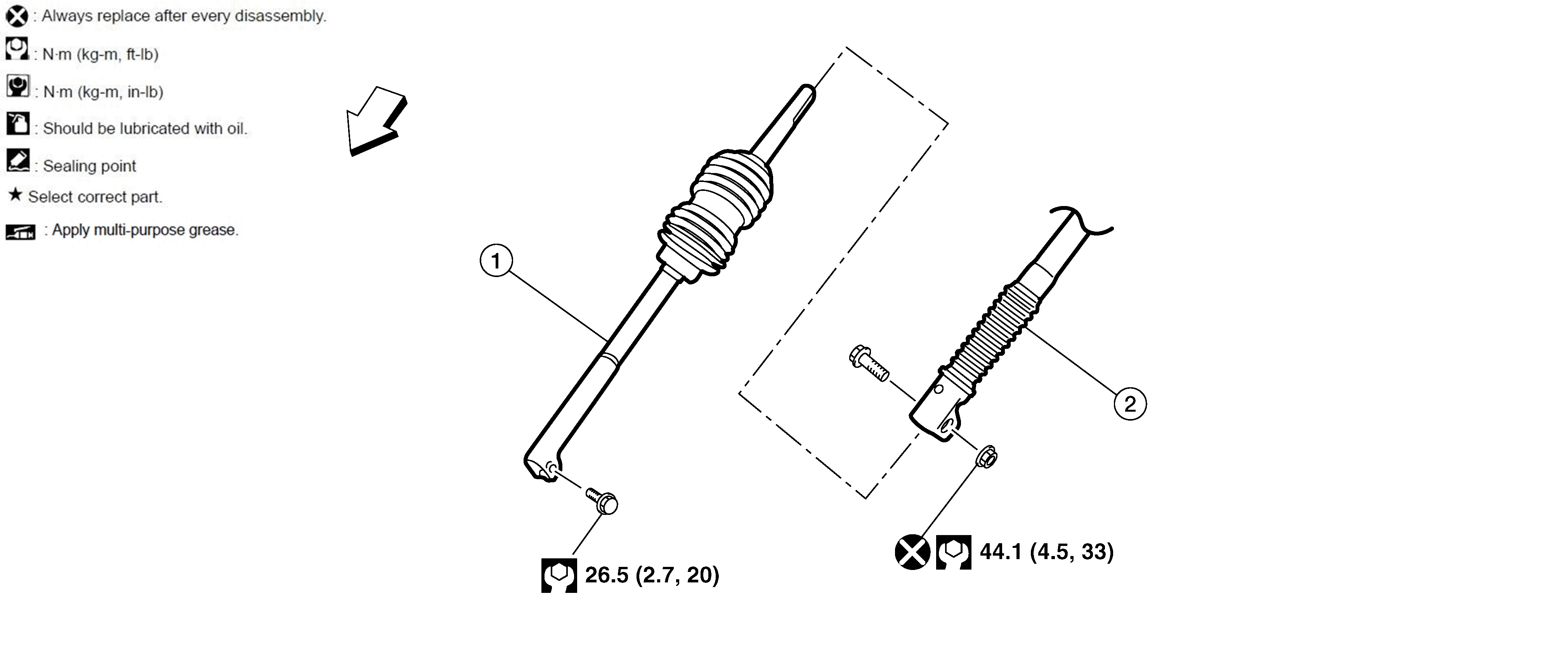

Fig 2: Lower Joint With Torque Specifications - Non-XD Models
GNSDB51077Courtesy of NISSAN
1. Lower joint 2. Intermediate shaft SYMBOL Front
