Exploded View

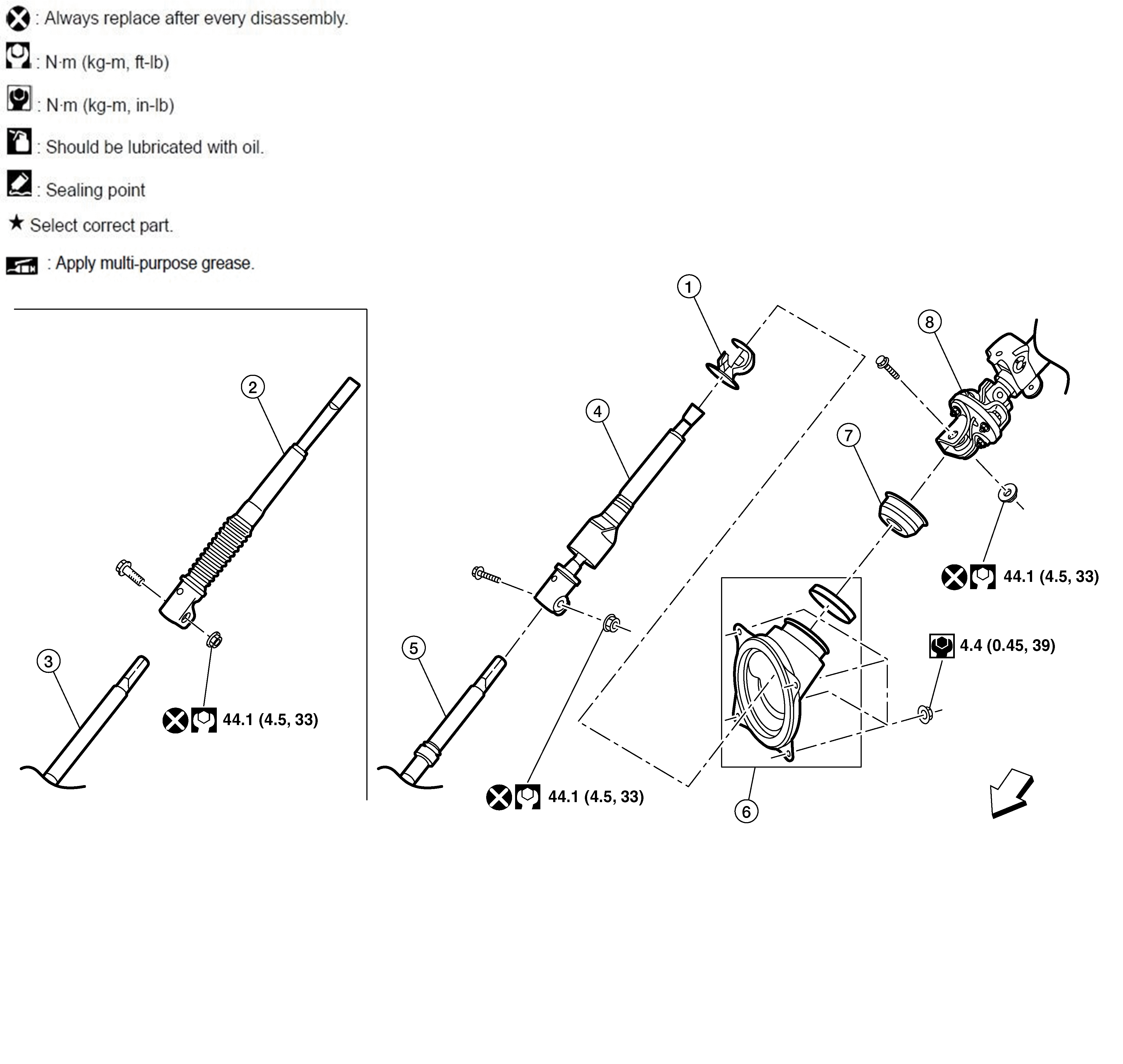

Fig 1: Intermediate Shaft With Torque Specifications
GNSDB50980Courtesy of NISSAN
1. Steering column collar 2. Intermediate shaft (Non-XD Models) 3. Lower joint (Non-XD Models)
4. Intermediate shaft (XD Models) 5. Lower joint (XD Models) 6. Hole cover and clamp
7. Hole cover seal 8. Steering column SYMBOL Front
