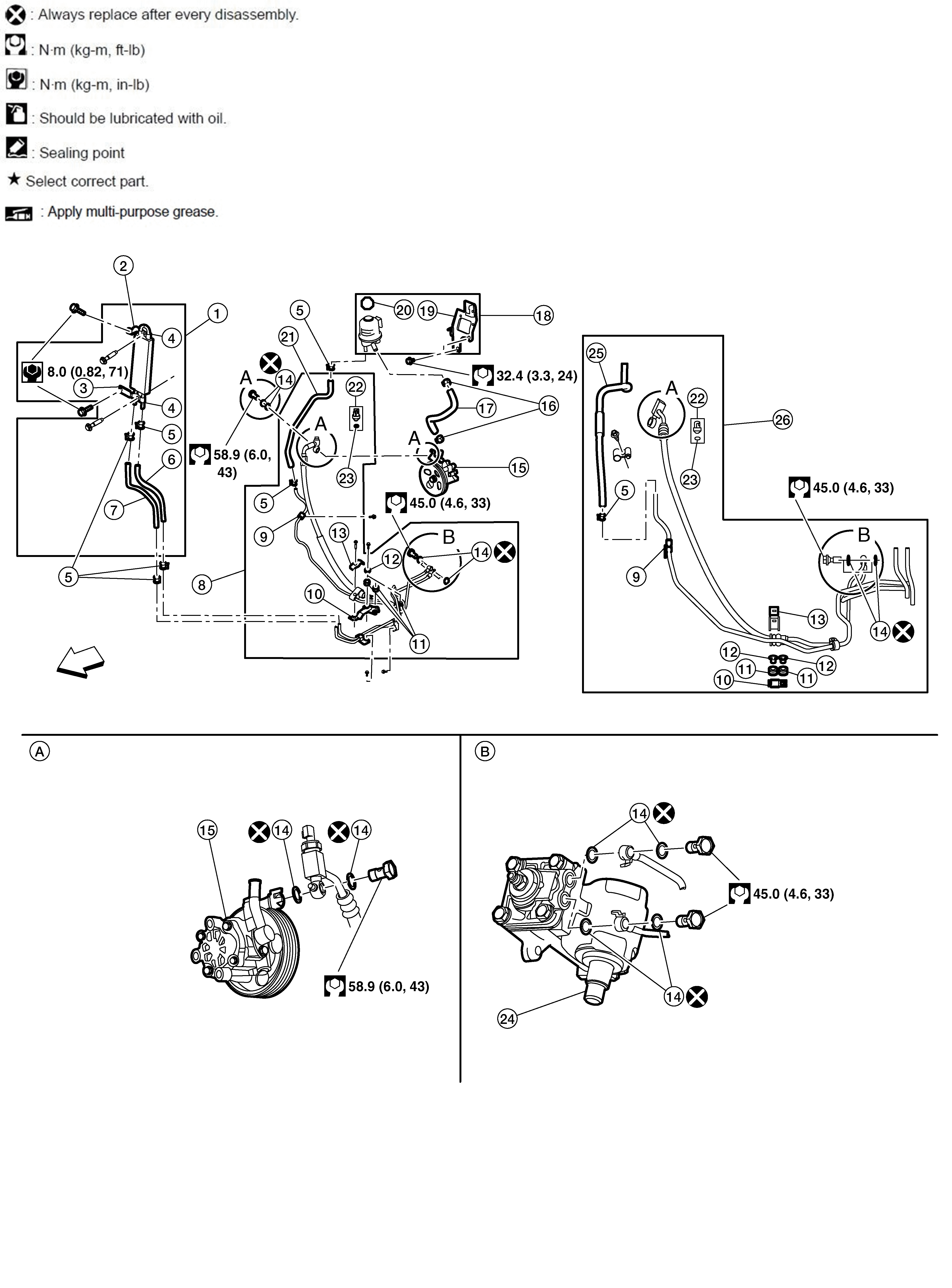

Exploded View
XD Models
| 1. | Power steering oil cooler | 2. | Bracket, upper (rear) | 3. | Bracket, lower (rear) |
| 4. | Bracket, front | 5. | Return hose clamp | 6. | Power steering oil cooler inlet hose |
| 7. | Power steering oil cooler outlet hose | 8. | Power steering hose assembly (early production) | 9. | Power steering pipe clamp |
| 10. | Power steering hose assembly clamp (lower) | 11. | Clamp insulator bushing | 12. | Insulator bushing insert |
| 13. | Power steering hose clamp (upper) | 14. | Copper sealing washer | 15. | Power steering oil pump |
| 16. | Power steering suction hose clamp | 17. | Power steering suction hose | 18. | Power steering oil reservoir |
| 19. | Power steering oil reservoir bracket | 20. | Power steering oil reservoir cap | 21. | Power steering oil return hose (early production) |
| 22. | Power steering pressure switch | 23. | O-ring | 24. | Power steering box |
| 25. | Power steering oil return hose (late production) | 26. | Power steering hose assembly (late production) | Front |

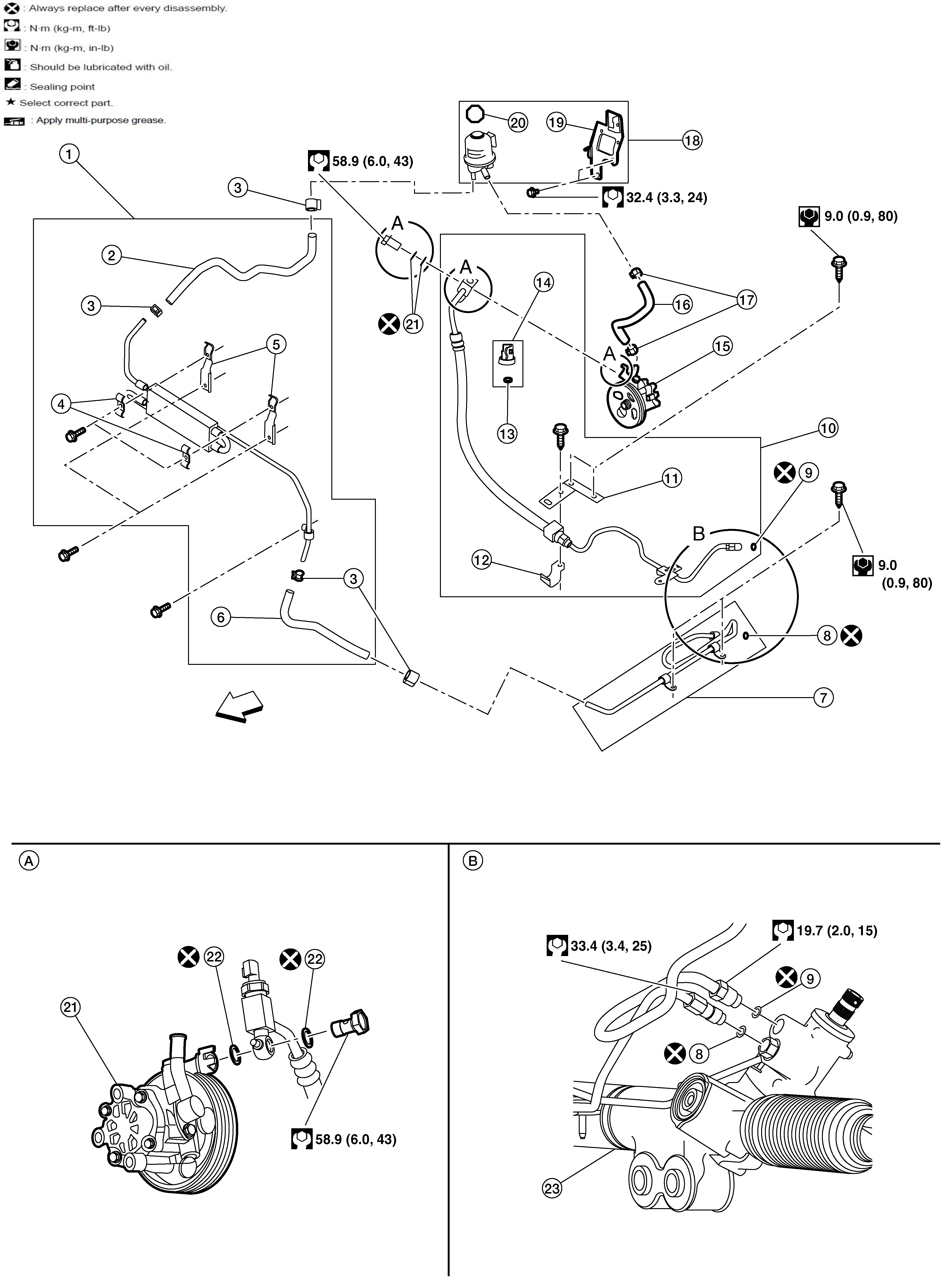

Non-XD Models
| 1. | Power steering oil cooler assembly | 2. | Power steering oil cooler outlet hose | 3. | Clamp |
| 4. | Power steering oil cooler bracket (front) | 5. | Power steering oil cooler bracket (rear) | 6. | Power steering oil cooler inlet hose |
| 7. | Power steering oil return pipe assembly | 8. | O-ring | 9. | O-ring |
| 10. | Power steering oil pressure hose assembly | 11. | Power steering pressure hose bracket (upper) | 12. | Power steering pressure hose bracket (lower) |
| 13. | O-ring | 14. | Power steering pressure switch | 15. | Power steering oil pump |
| 16. | Power steering suction hose | 17. | Clamp | 18. | Power steering oil reservoir assembly |
| 19. | Power steering oil reservoir bracket | 20. | Power steering oil reservoir cap | 21. | Power steering oil pump |
| 22. | Copper sealing washer | 23. | Power steering gear | Front |
