Ignition Timing: Inspection

  1. CHECK IGNITION TIMING

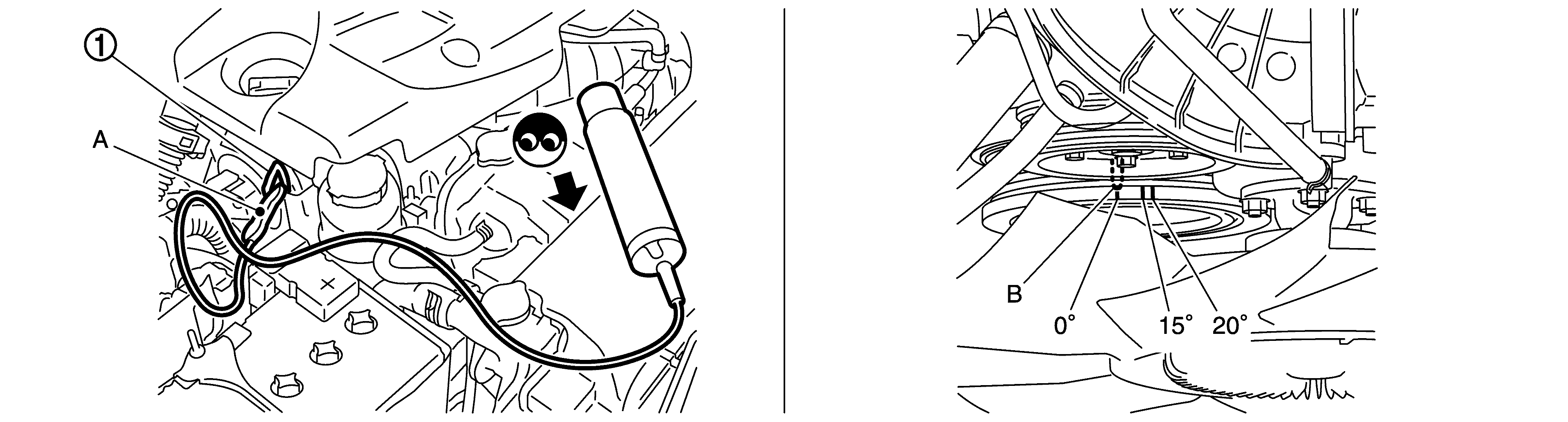

    1. Attach timing light to loop wire as shown, below.
      GNSDB51451Courtesy of NISSAN
      1. Loop wire
      A. Timing light B. Timing indicator
    2. Check ignition timing.

    >>

    INSPECTION END
