Reference Value

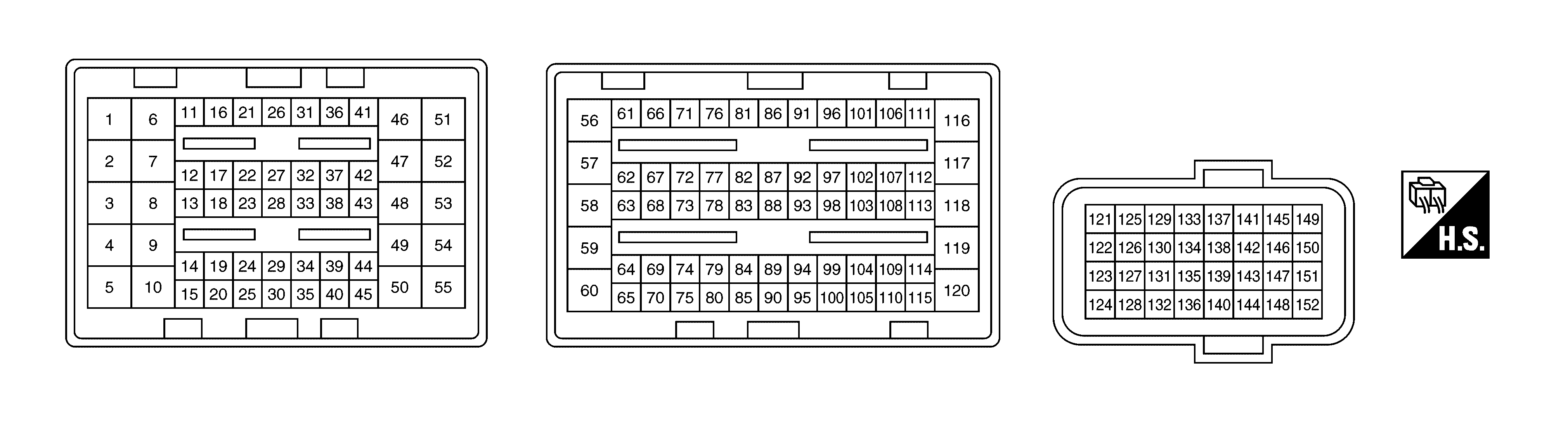

TERMINAL LAYOUT
PHYSICAL VALUES
NOTE:

- Specification data are reference values and are measured between each terminals.
- Pulse signal is measured by CONSULT.
| Terminal No. (Wire color) | Description | Condition | Value (Approx.) | ||
|---|---|---|---|---|---|
| + | - | Signal name | Input/Output | ||
| 1 (R) | 152 (B) | Fuel injector driver power supply | Input | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14 V) |
| 2 (SB) | 152 (B) | High pressure fuel pump driver power supply | Input | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14 V) |
| 3 (B/R), 8 (B/W) | 50 (B) | Fuel injector No. 8 (LO) Fuel injector No. 5 (LO) | Input | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
||||
| 4 (O), 9 (R/W) | 50 (B) | Fuel injector No. 3 (LO), Fuel injector No. 2 (LO) | Input | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
||||
| 5 (G) | 50 (B) | Fuel injector No. 2 (HI), Fuel injector No. 3 (HI) | Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
||||
| 6 (R) | 152 (B) | Fuel injector driver power supply | Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
| [Ignition switch: OFF] | 1.5 V | ||||
| 7 (V/B) | 50 (B) | Fuel injector No. 5 (HI), Fuel injector No. 8 (HI) | Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
||||
| 10 (B) | - | ECM ground | - | - | - |
| 12 (L/Y) | 13 (W/L) | Refrigerant pressure sensor | Input | [Engine is running]
|
1.0 - 4.0 V |
| 13 (W/L) | - | Sensor ground (Fuel rail pressure sensor/Engine oil pressure sensor/Refrigerant pressure sensor/Power steering pressure sensor) | - | - | - |
| 14 (-) | - | Shield | - | - | - |
| 15 (W) | 20 (-) | Knock sensor (bank 1) | Input | [Engine is running]
|
2.0 V*1 |
| 17 (V) | 43 (R) | Exhaust gas temperature sensor (bank 2) | Input | [Engine is running]
|
1.29 - 2.94 V. Output voltage varies with exhaust gas temperature. |
| 18 (W) | 20 (-) | Knock sensor (bank 2) | Input | [Engine is running]
|
2.0 V*1 |
| 19 (GR/R) | 43 (R) | Exhaust gas temperature sensor (bank 1) | Input | [Engine is running]
|
1.29 - 2.94 V. Output voltage varies with exhaust gas temperature. |
| 20 (-) | - | Sensor ground (Knock sensor) | - | - | - |
| 22 (L/Y) | 43 (R) | Engine oil temperature sensor | Input | [Engine is running] | 0 - 4.8 V. Output voltage varies with engine oil temperature. |
| 23 (L/Y) | 13 (W/L) | Engine oil pressure sensor | Input | [Engine is running]
|
1.2 V |
[Engine is running]
|
2.8 V |
||||
| 24 (P/GR) | 13 (W/L) | Power steering pressure sensor | Input | [Engine is running]
|
0.5 - 4.5 V |
[Engine is running]
|
0.4 - 0.8 V | ||||
| 25 (G/O) | 13 (W/L) | Fuel rail pressure sensor | Input | [Engine is running]
|
0.82 - 1.22 V |
[Engine is running]
|
0.82 - 3.06 V | ||||
| 27 (W/G) | 44 (G/W) | Sensor power supply (Crankshaft position sensor) | - | [Ignition switch: ON] | 5 V |
| 28 (Y/R) | 45 (BR/W) | Sensor power supply [Camshaft position sensor (bank 1)/Exhaust valve timing control position sensor (bank 1)] | - | [Ignition switch: ON] | 5 V |
| 29 (SB) | 13 (W/L) | Sensor power supply (Fuel rail pressure sensor/Engine oil pressure sensor/Refrigerant pressure sensor/Power steering pressure sensor) | - | [Ignition switch: ON] | 5 V |
| 30 (SB) | 43 (R) | Sensor power supply (Battery current sensor/Fan clutch assembly/Multi-way control valve) | - | [Ignition switch: ON] | 5 V |
| 31 (BR) | 152 (B) | Cooling fan speed | Input | [Ignition switch: ON]
|
5 V |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
||||
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
||||
| 32 (LG) | 152 (B) | Battery temperature sensor | Input | [Engine is running]
|
3.3 V |
| 33 (R/W) | 44 (G/W) | Crankshaft position sensor (POS) | Input | [Engine is running]
|
4.0 - 5.0 V |
[Engine is running]
|
4.0 - 5.0 V |
||||
| 35 (R/W) | 43 (R) | Engine coolant temperature sensor 1 | Input | [Engine is running] | 0 - 4.8 V. Output voltage varies with engine coolant temperature. |
| 36 (G/O) | 42 (R) | Intake air temperature sensor | Input | [Engine is running] | 0 - 4.8 V. Output voltage varies with intake air temperature. |
| 37 (G/B) | 42 (R) | Mass air flow sensor | Input | [Engine is running]
|
0.7 - 1.2 V |
[Engine is running]
|
1.4 - 1.9 V | ||||
| 38 (V) | 43 (R) | Battery current sensor | Input | [Engine is running]
|
2.6 - 3.5 V |
| 40 (W/R) | 45 (BR/W) | Camshaft position sensor (PHASE) (bank 1) | Input | [Engine is running]
|
3.0 - 5.0 V |
[Engine is running]
|
3.0 - 5.0 V |
||||
| 41 (P) | 45 (BR/W) | Exhaust valve timing control position sensor (bank 1) | Input | [Engine is running]
|
3.0 - 5.0 V |
[Engine is running]
|
3.0 - 5.0 V |
||||
| 42 (R) | - | Sensor ground (Mass air flow sensor/Intake air temperature sensor) | - | - | - |
| 43 (R) | - | Sensor ground [Fan clutch assembly/Battery current sensor/Multi-way control valve/Heated oxygen sensor 2 (bank 1)/Heated oxygen sensor 2 (bank 2)/Engine coolant temperature sensor 1/Engine coolant temperature sensor 2/Engine oil temperature sensor/Exhaust gas temperature sensor (bank 1)/Exhaust gas temperature sensor (bank 2)] | - | - | - |
| 44 (G/W) | - | Sensor ground (Crankshaft position sensor) | - | - | - |
| 45 (BR/W) | - | Sensor ground [Camshaft position sensor (bank 1)/Exhaust valve timing control position sensor (bank 1)] | - | - | - |
| 46 (SB) | 152 (B) | High pressure fuel pump driver power supply | Input | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14 V) |
| [Ignition switch: OFF] | 1.5 V | ||||
| 47 (BR) | 50 (B) | Fuel injector No. 1 (HI), Fuel injector No. 6 (HI) | Input | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
||||
| 48 (Y), 52 (R) | 50 (B) | Fuel injector No. 1 (LO). Fuel injector No. 6 (LO) | Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
||||
| 49 (L), 53 (V) | 50 (B) | Fuel injector No. 4 (LO), Fuel injector No. 7 (LO) | Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
||||
| 50 (B) | - | ECM ground | - | - | - |
| 51 (P) | 152 (B) | High pressure fuel pump driver power supply | Input | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
| 54 (W) | 50 (B) | Fuel injector No. 4 (HI), Fuel injector No. 7 (HI) | Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
||||
| 55 (B) | - | ECM ground | - | - | - |
| 56 (V) | 152 (B) | Multi-way control valve power supply | Input | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14 V) |
| 57 (R) | 58 (B) | Multi-way control valve motor (-) | Output | [Ignition switch: ON]
|
0 V |
| 58 (B) | 57 (R) | Multi-way control valve motor (+) | Output | [Ignition switch: ON]
|
0 V |
| 59 (B) | 50 (B) | High pressure fuel pump (HI) | Input | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
||||
| 60 (W) | 50 (B) | High pressure fuel pump (LO) | Input | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
||||
| 61 (BR) | 43 (R) | Multi-way control valve position sensor | Input | [Ignition switch: ON]
|
4.5 V |
[Engine is running]
|
1.8 V | ||||
[Engine is running]
|
2.4 V |
||||
[Engine is running]
|
2.8 V |
||||
| 62 (B/R) | 152 (B) | PNP signal | Input | [Ignition switch: ON]
|
BATTERY VOLTAGE (11 - 14 V) |
[Ignition switch: ON]
|
0 V | ||||
| 63 (LG/B) | - | Sensor ground [Camshaft position sensor (bank 2)/Exhaust valve timing control position sensor (bank 2)] | - | - | - |
| 64 (-) | - | Shield | - | - | - |
| 65 (W) | 43 (R) | Engine coolant temperature sensor 2 | Input | [Engine is running] | 0 - 4.8 V. Output voltage varies with engine coolant temperature. |
| 66 (P/GR) | 63 (LG/B) | Camshaft position sensor (bank 2) | Input | [Engine is running]
|
3.0 - 5.0 V |
[Engine is running]
|
3.0 - 5.0 V |
||||
| 68 (P) | 63 (LG/B) | Exhaust valve timing control position sensor (bank 2) | Input | [Engine is running]
|
3.0 - 5.0 V |
[Engine is running]
|
3.0 - 5.0 V |
||||
| 69 (L/W) | 152 (B) | A/F sensor 1 (bank 2) | Input | [Engine is running]
|
2.2 V. Output voltage varies with air fuel ratio. |
| 70 (Y/B) | 152 (B) | A/F sensor 1 (bank 2) | Input | [Ignition switch: ON] | 2.2 V |
| 73 (LG/R) | 63 (LG/B) | Sensor power supply [Camshaft position sensor (bank 2)/Exhaust valve timing control position sensor (bank 2)] | - | [Ignition switch: ON] | 5 V |
| 74 (R) | 152 (B) | A/F sensor 1 (bank 1) | Input | [Ignition switch: ON] | 2.2 V |
| 77 (L/W) | 43 (R) | Heated oxygen sensor 2 (bank 2) | Input | [Engine is running]
|
0 - 1.0 V |
| 78 (R/L) | 85 (L) | Throttle position sensor 1 | Input | [Ignition switch: ON]
|
More than 0.36 V |
[Ignition switch: ON]
|
Less than 4.75 V | ||||
| 79 (W) | 152 (B) | A/F sensor 1 (bank 1) | Input | [Engine is running]
|
2.2 V. Output voltage varies with air fuel ratio. |
| 80 (B/W) | 85 (L) | Throttle position sensor 2 | Input | [Ignition switch: ON]
|
Less than 4.75 V |
[Ignition switch: ON]
|
More than 0.36 V | ||||
| 83 (V/G) | 85 (L) | Sensor power supply (Throttle position sensor) | - | [Ignition switch: ON] | 5 V |
| 84 (W/R) | 43 (R) | Heated oxygen sensor 2 (bank 1) | Input | [Engine is running]
|
0 - 1.0 V |
| 85 (L) | - | Sensor ground (Throttle position sensor) | - | - | - |
| 86 (L/G) | - | LIN communication | Input/Output | - | - |
| 88 (L/LG) | 152 (B) | ECM relay (Self shut-off) | Output | [Engine is running] [Ignition switch: OFF]
|
0 - 1.5 V |
[Ignition switch: OFF]
|
BATTERY VOLTAGE (11 - 14 V) | ||||
| 90 (BR/W) | 152 (B) | VVEL actuator motor relay abort signal (VVEL control module) | Input | [Ignition switch: ON] | 0 V |
| 91 (L/B), 92 (BR/Y), 95 (Y), 104 (LG/R) | 152 (B) | Ignition signal No. 2, Ignition signal No. 3, Ignition signal No. 1, Ignition signal No. 4 | Input | [Engine is running]
|
0 - 0.2 V |
[Engine is running]
|
0.1 - 0.4 V |
||||
| 93 (GR) | 152 (B) | Fuel pump relay | Output | [Ignition switch: ON]
[Engine is running] |
0 - 1.0 V |
| 94 (Y/R), 101 (O), 102 (P/G), 105 (G/Y) | 152 (B) | Ignition signal No. 6, Ignition signal No. 8, Ignition signal No. 5, Ignition signal No. 7 | Input | [Engine is running]
|
0 - 0.2 V |
[Engine is running]
|
0.1 - 0.4 V |
||||
| 99 (V/R) | 152 (B) | Throttle control motor relay | Output | [Ignition switch: ON -> OFF] | 0 - 1.0 V/BATTERY VOLTAGE (11 - 14 V)/0 V |
| [Ignition switch: ON] | 0 - 1.0 V | ||||
| 106 (V/W) | 152 (B) | EVAP canister purge volume control solenoid valve | Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
||||
| 107 (W) | 152 (B) | Throttle control motor (Open) | Output | [Ignition switch: ON]
|
0 - 14 V |
[Ignition switch: ON]
|
0 - 14 V |
||||
| 108 (R) | 152 (B) | Throttle control motor (Close) | Output | [Ignition switch: ON]
|
0 - 14 V |
| 111 (O) | 152 (B) | Throttle control motor power supply | Input | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14 V) |
| 112 (LG/B) | 152 (B) | Intake valve timing control solenoid valve (bank 1) | Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
[Engine is running]
|
7 - 12 V |
||||
| 113 (LG/R) | 152 (B) | Intake valve timing control solenoid valve (bank 2) | Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
[Engine is running]
|
7 - 12 V |
||||
| 114 (LG/B) | 152 (B) | Exhaust valve timing control solenoid valve (bank 1) | Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
[Engine is running]
|
7 - 12 V |
||||
| 115 (LG/R) | 152 (B) | Exhaust valve timing control solenoid valve (bank 2) | Output | [Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
[Engine is running]
|
7 - 12 V |
||||
| 116 (L/W) | 152 (B) | A/F sensor 1 heater (bank 1) | Output | [Engine is running]
|
14 V |
| 117 (SB) | 152 (B) | A/F sensor 1 heater (bank 2) | Output | [Engine is running]
|
14 V |
| 118 (LG) | 152 (B) | Heated oxygen sensor 2 heater (bank 1) | Output | [Engine is running]
|
14 V |
[Ignition switch: ON]
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) | ||||
| 119 (L/R) | 152 (B) | Heated oxygen sensor 2 heater (bank 2) | Output | [Engine is running]
|
14 V |
[Ignition switch: ON]
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) | ||||
| 120 (L) | 152 (B) | Power supply for ECM (Back-up) | Input | [Ignition switch: OFF] | BATTERY VOLTAGE (11 - 14 V) |
| 121 (O/B) | 148 (R) | EVAP control system pressure sensor | Input | [Ignition switch: ON] | 1.8 - 4.8 V |
| 123 (P) | - | CAN communication line (CAN-L) | - | - | - |
| 124 (L) | - | CAN communication line (CAN-H) | - | - | - |
| 125 (SB) | 148 (R) | Sensor power supply (EVAP control system pressure sensor) | - | [Ignition switch: ON] | 5 V |
| 128 (V/W) | 152 (B) | Fuel temperature sensor | Input | [Engine is running]
|
2.8 V |
| 130 (R/W) | 152 (B) | Fuel pump control module (FPCM) check | Input | [When cranking engine] | 0 V |
[Engine is running]
|
9 V | ||||
| 133 (W) | 152 (B) | Ignition switch | Input | [Ignition switch: OFF] | 0 V |
| [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14 V) | ||||
| 134 (G/Y) | 135 (B/Y) | ASCD steering switch | Input | [Ignition switch: ON]
|
4 V |
[Ignition switch: ON]
|
0 V | ||||
[Ignition switch: ON]
|
1 V | ||||
[Ignition switch: ON]
|
3 V | ||||
[Ignition switch: ON]
|
2 V | ||||
| 134 (G/Y) | 135 (B/Y) | ICC steering switch | Input | [Ignition switch: ON]
|
4 V |
[Ignition switch: ON]
|
0 V | ||||
[Ignition switch: ON]
|
1 V | ||||
[Ignition switch: ON]
|
1.9 V | ||||
[Ignition switch: ON]
|
3 V | ||||
[Ignition switch: ON]
|
2 V | ||||
| 135 (B/Y) | - | Sensor ground (ASCD steering switch/ICC steering switch) | - | - | - |
| 136 (GR) | 152 (B) | Fuel pump control module (FPCM) | Output | [When cranking engine] | 0 - 0.5 V |
[Engine is running]
|
0 - 4.0 V |
||||
| 137 (R/W) | - | ENG communication line (CAN-L) | - | - | - |
| 138 (W) | - | ENG communication line (CAN-H) | - | - | - |
| 139 (R/G) | 152 (B) | Stop lamp switch | Input | [Ignition switch: OFF]
|
0 V |
[Ignition switch: OFF]
|
BATTERY VOLTAGE (11 - 14 V) | ||||
| 140 (G/Y) | 152 (B) | Brake pedal position switch | Input | [Ignition switch: ON]
|
0 V |
[Ignition switch: ON]
|
BATTERY VOLTAGE (11 - 14 V) | ||||
| 141 (Y) | 152 (B) | EVAP canister vent control valve | Output | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14 V) |
| 142 (L/W) | 144 (P/L) | Sensor power supply (Accelerator pedal position sensor 2) | - | [Ignition switch: ON] | 5 V |
| 143 (O) | 144 (P/L) | Accelerator pedal position sensor 2 | Input | [Ignition switch: ON]
|
0.25 - 0.5 V |
[Ignition switch: ON]
|
2.0 - 2.5 V | ||||
| 144 (P/L) | - | Sensor ground (Accelerator pedal position sensor 2) | - | - | - |
| 145 (W) | 152 (B) | Power supply for ECM | Input | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14 V) |
| 146 (W/G) | 151 (R/Y) | Sensor power supply (Accelerator pedal position sensor 1) | - | [Ignition switch: ON] | 5 V |
| 147 (B) | - | ECM ground | - | - | - |
| 148 (R) | - | Sensor ground (EVAP control system pressure sensor) | - | - | - |
| 149 (B) | - | ECM ground | - | - | - |
| 150 (W/R) | 151 (R/Y) | Accelerator pedal position sensor 1 | Input | [Ignition switch: ON]
|
0.5 - 1.0 V |
[Ignition switch: ON]
|
4.2 - 4.8 V | ||||
| 151 (R/Y) | - | Sensor ground (Accelerator pedal position sensor 1) | - | - | - |
| 152 (B) | - | ECM ground | - | - | - |
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
*1: This may vary depending on internal resistance of the tester.
*2: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to How to Handle Battery .
