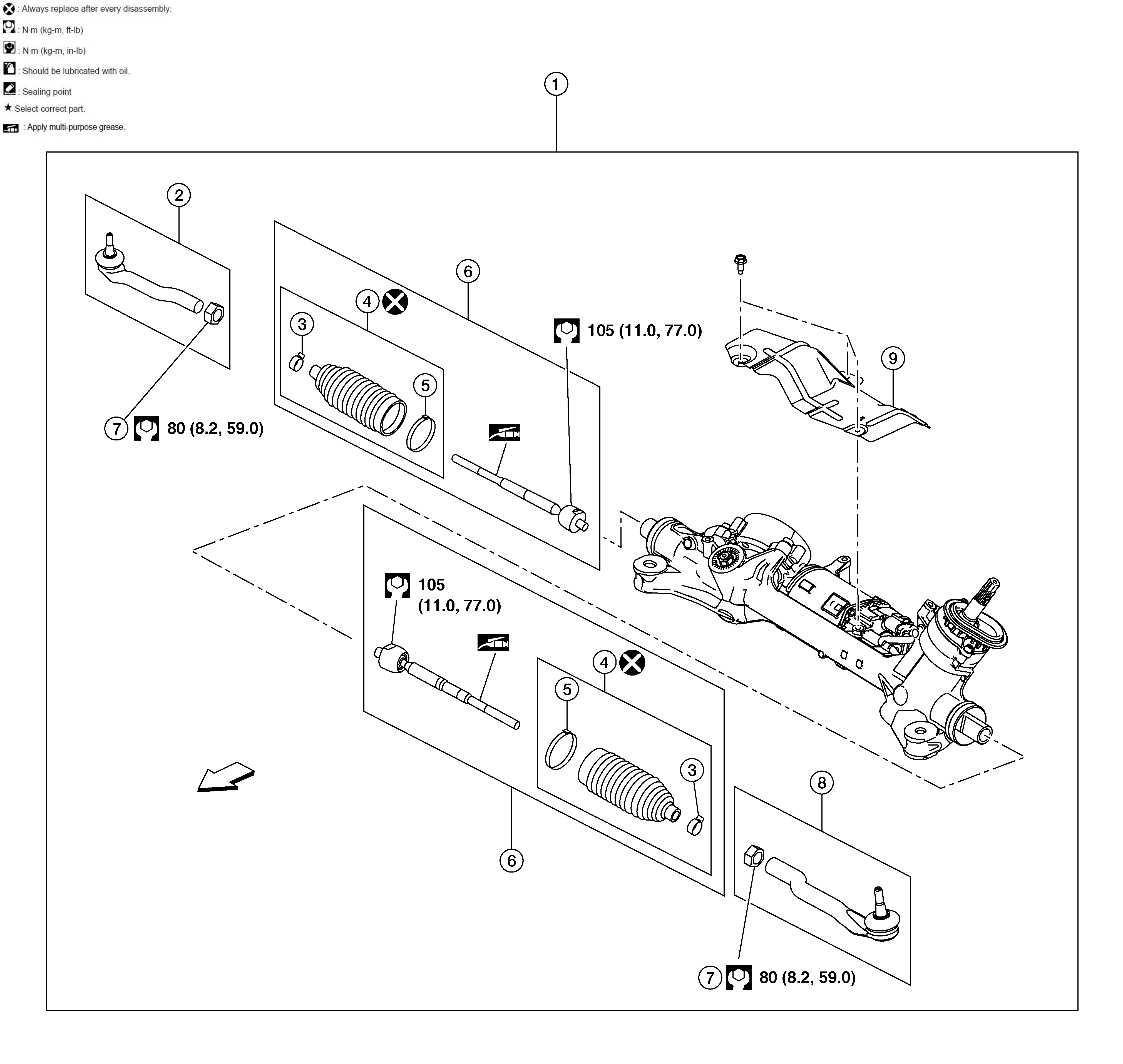

Exploded View
Exploded View
Courtesy of NISSAN
1.
Steering gear and linkage assembly
2.
Outer socket (RH)
3.
Small boot clamp
4.
Boot kit
5.
Large boot clamp
6.
Inner socket kit
7.
Lock nut
8.
Outer socket (LH)
Front
