Steering Column
>>
Exploded View
Exploded View

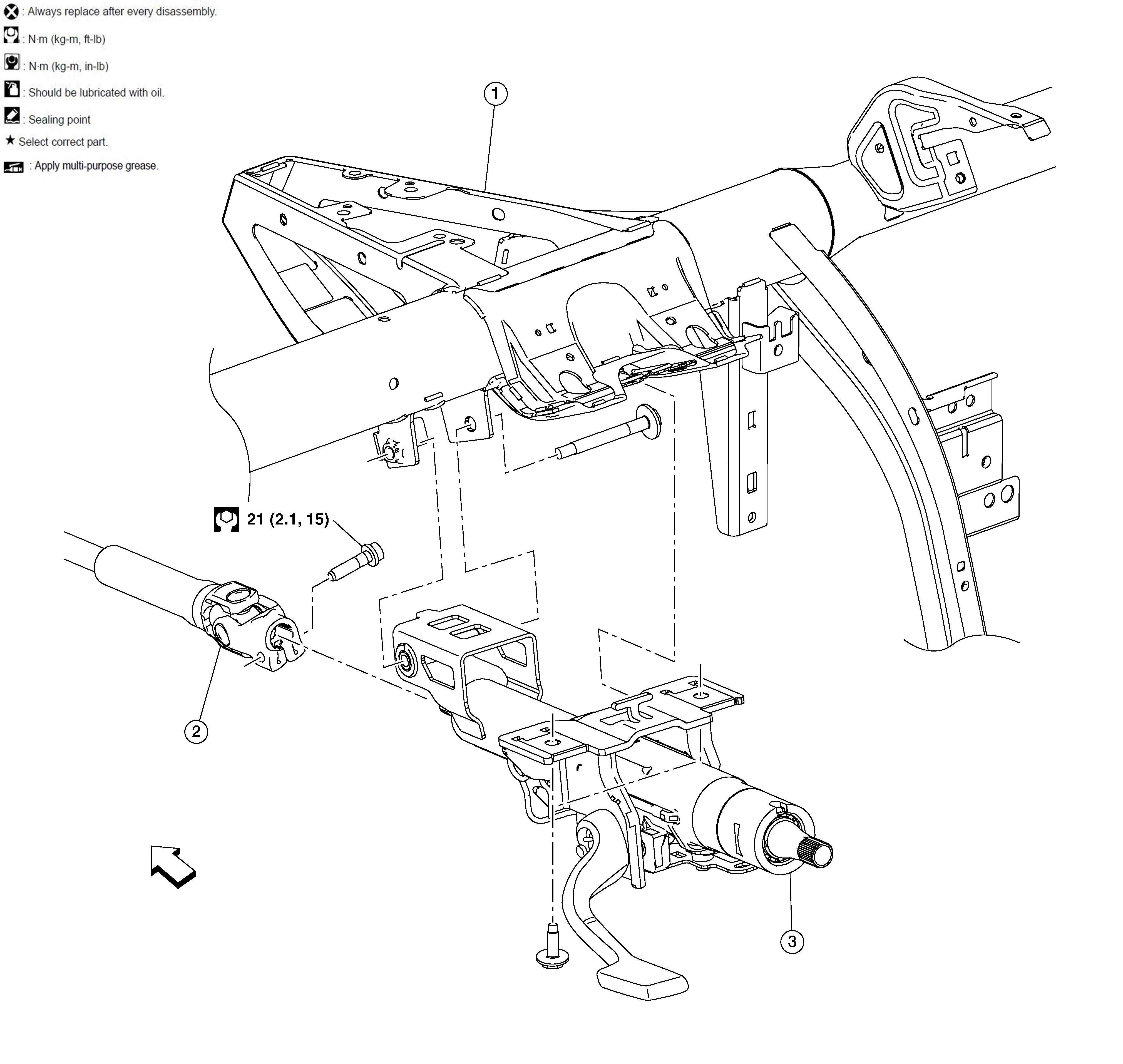

Fig 1: Steering Column With Torque Specifications
Courtesy of NISSAN
1.
Steering member
2.
Lower joint
3.
Steering column
Front
Courtesy of NISSAN
