SRS Component Connectors
DIRECT CONNECT
The following SRS components use direct-connect style harness connectors:
- Driver air bag module
- Front passenger air bag module
- LH side curtain air bag module
- RH side curtain air bag module
- Front LH side air bag module
- Front RH side air bag module
- Rear LH side air bag module
- Rear RH side air bag module
- Left knee air bag module
- Right knee air bag module
- Front LH seat belt pre-tensioner
- Front RH seat belt pre-tensioner
- Rear LH seat belt pre-tensioner
- Rear RH seat belt pre-tensioner

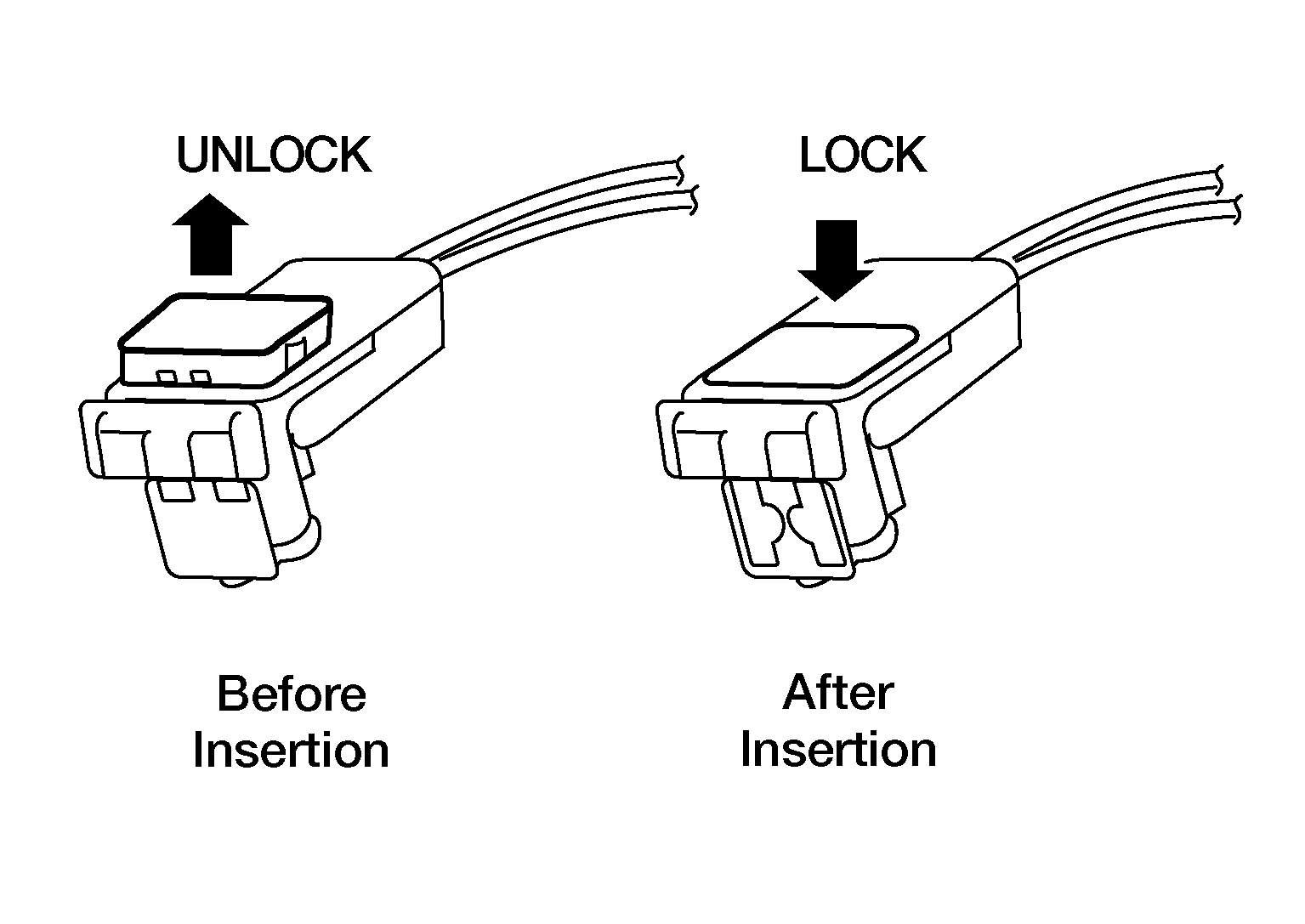

Always pull up to release locking tab prior to removing connector from SRS component. Always push down to lock locking tab after installing connector to SRS component. When locked, the locking tab is level with the connector housing.
SLIDE DOUBLE LOCKING
- A new style slide double locking type connector is used on certain systems and components, especially those related to airbag control systems.
- The slide double locking type connectors help prevent incomplete locking and accidental looseness or disconnection.

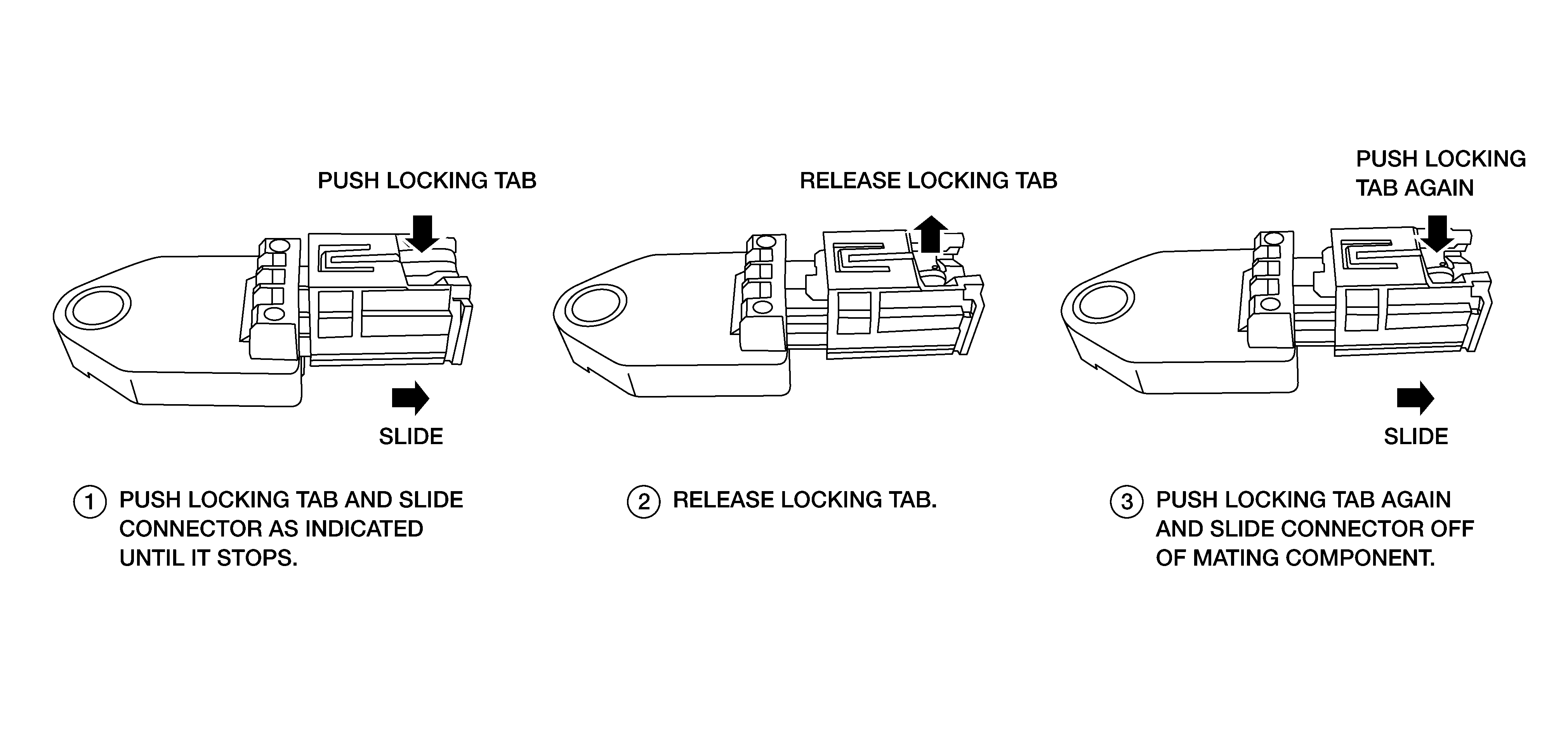

- The slide double locking type connectors are disconnected by pushing or pulling the slider. Refer to the figure below.
CAUTION:
- Do not pull the harness or wires when disconnecting the connector.
