Exploded View

CVT Models

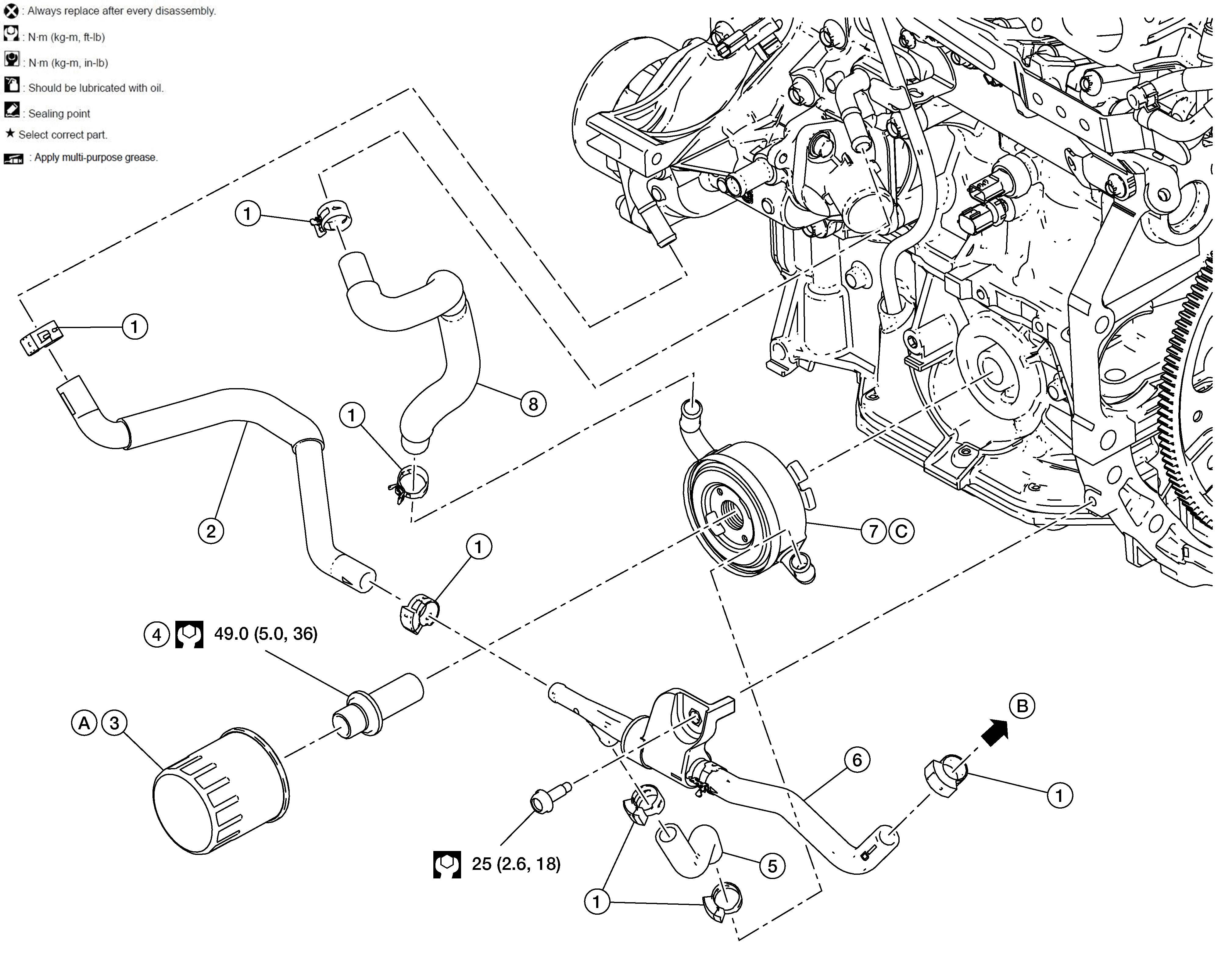

Fig 1: Oil Cooler With Torque Specifications - CVT Models

Courtesy of NISSAN

1.	Clamp	2.	Water hose A	3.	Oil filter
4.	Connector bolt	5.	Water hose B	6.	Heater thermostat housing
7.	Oil cooler	8.	Water hose C	A.	Refer to Removal and Installation .
B.	To CVT oil warmer. Refer to Exploded View .	C.	Refer to Removal and Installation .

M/T Models

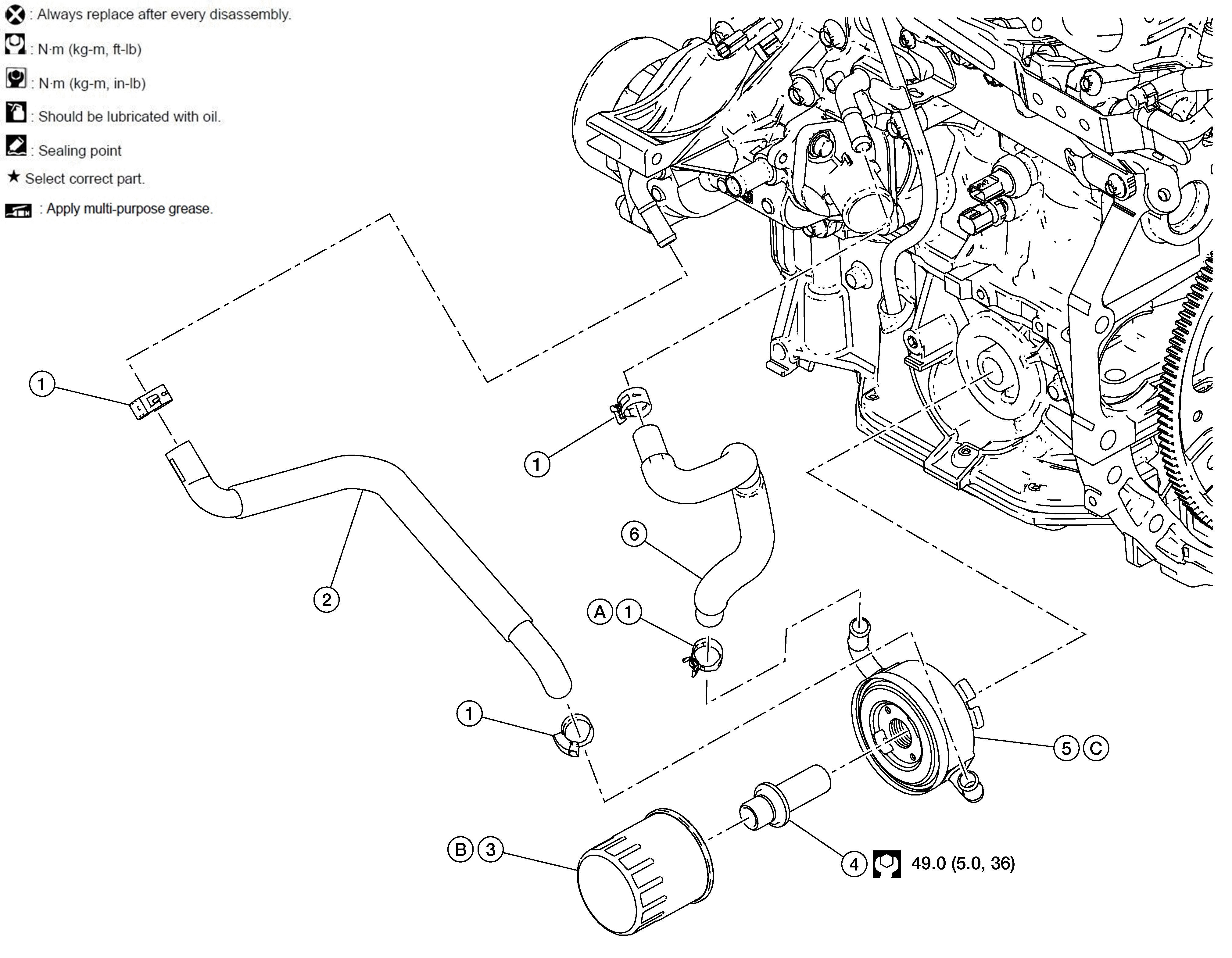

Fig 2: Oil Cooler With Torque Specifications - M/T Models

Courtesy of NISSAN

1.	Clamp	2.	Water hose A	3.	Oil filter
4.	Connector bolt	5.	Oil cooler	6.	Water hose B
A.	Refer to Removal and Installation .	B.	Refer to Removal and Installation .
