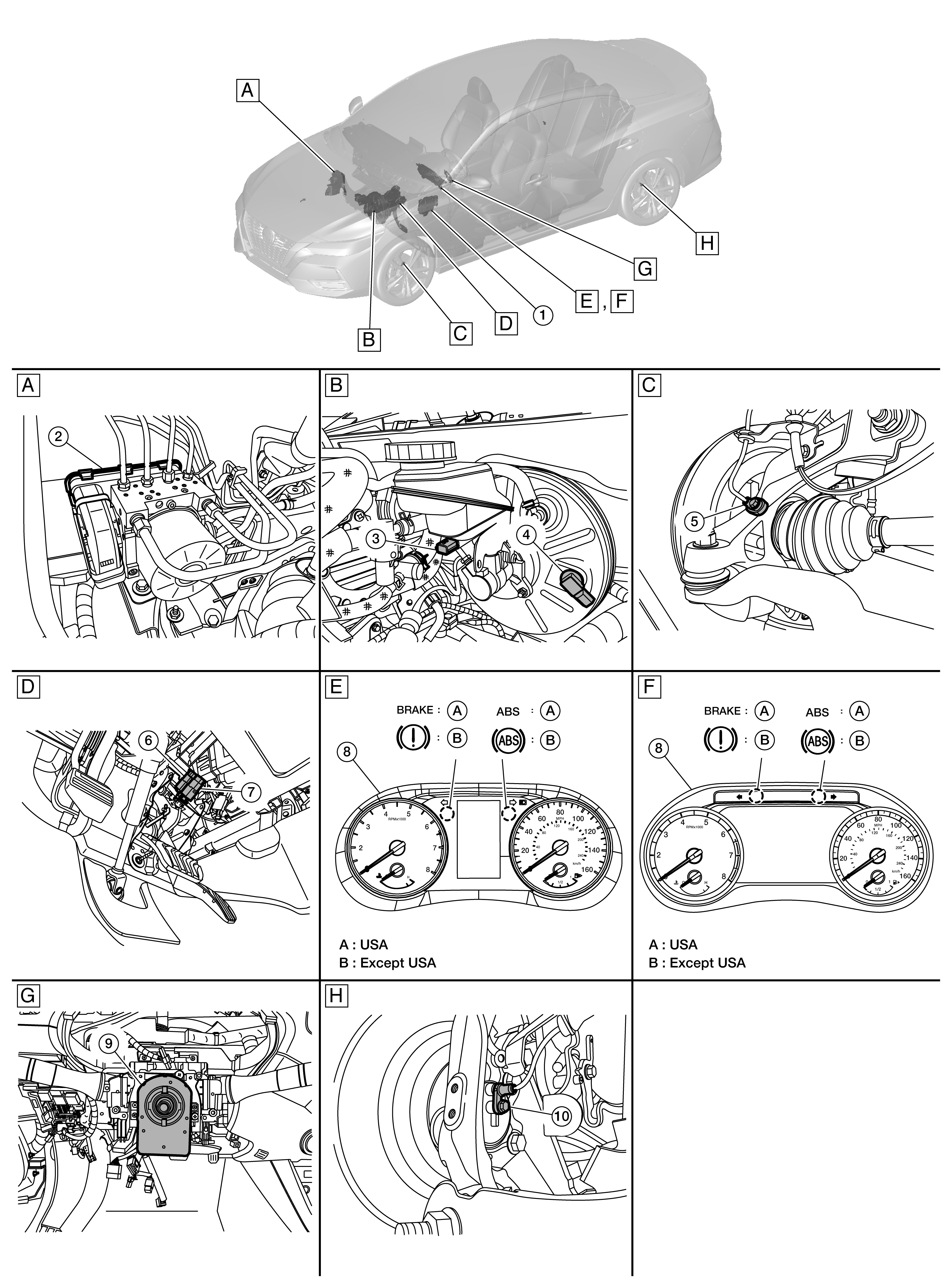

Component Location
| A. | Right side of engine compartment | B. | Left side of engine compartment | C. | Left front wheel area (RH similar) |
| D. | Brake pedal area | E. | Left side of instrument panel (view with component removed from vehicle) | F. | Left side of instrument panel (view with component removed from vehicle) |
| G. | Steering wheel area (view with steering wheel removed) | H. | Left rear wheel area (RH similar) | ||
| No. | Component | Function |
|---|---|---|
| 1. | BCM (Body Control Module) | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
Refer to Component Location for detailed component location. |
| 2. | ABS (Anti-lock Braking System) actuator and electric unit (control unit) | Refer to ABS Actuator and Electric Unit (Control Unit) . |
| 3. | Brake fluid level switch | Refer to Brake Fluid Level Switch . |
| 4. | Vacuum sensor | Refer to Vacuum Sensor . |
| 5. | Front wheel sensor LH (RH similar) | Refer to Wheel Sensor and Sensor Rotor . |
| 6. | Brake pedal position switch | Detects the operation status of brake pedal and transmits converted electric signal to ABS actuator and electric unit (control unit). |
| 7. | Stop lamp switch | Refer to Stop Lamp Switch . |
| 8. | Combination meter | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication:
Refer to Combination Meter (VDC OFF signal) . |
| 9. | Chassis control module (with built in steering angle sensor) | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
Refer to Chassis Control Module (With Built In Steering Angle Sensor) for detailed component location. |
| 10. | Rear wheel sensor LH (RH similar) | Refer to Wheel Sensor and Sensor Rotor . |
