Exploded View

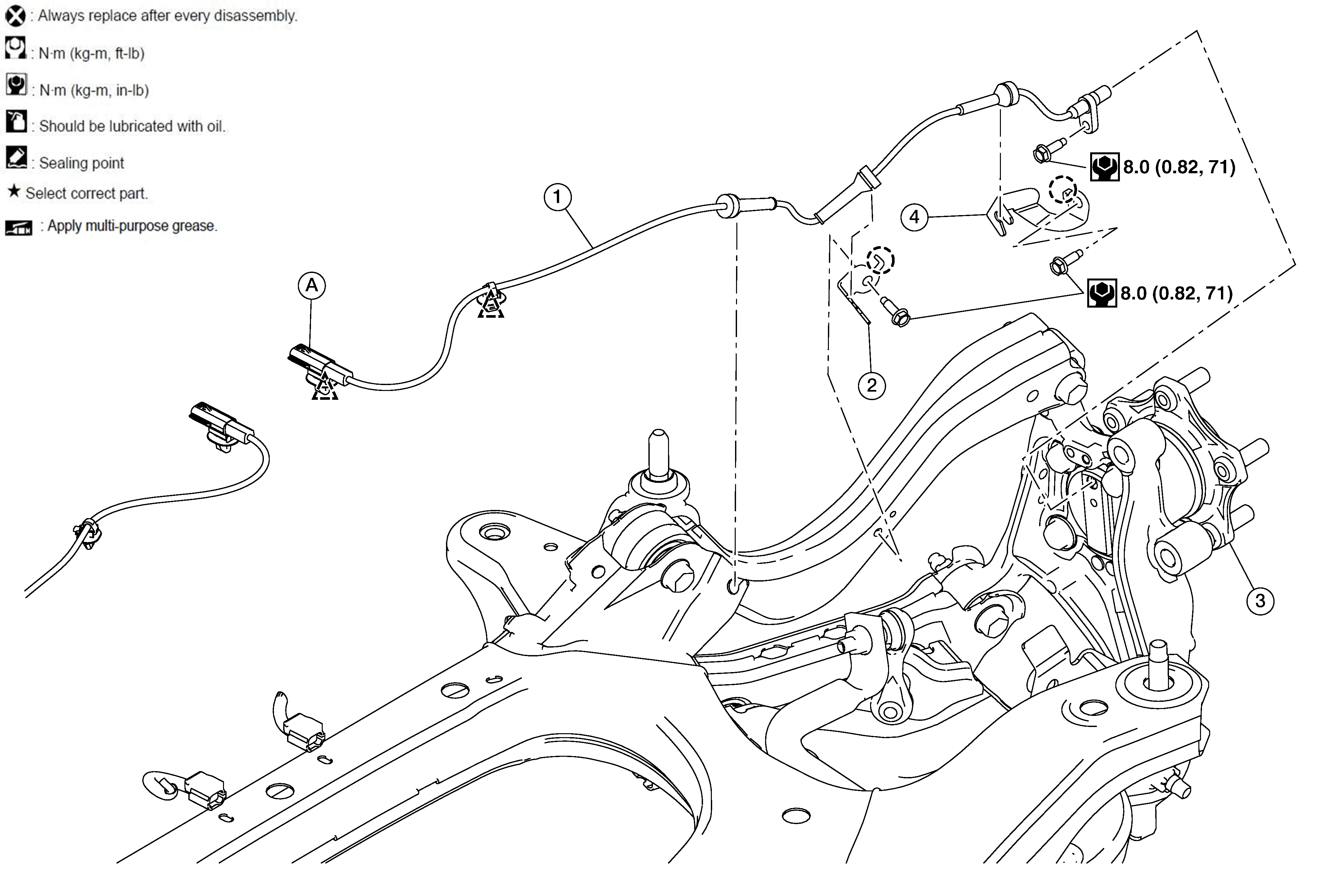

Fig 1: Rear Wheel Sensor With Torque Specifications
GNSDB48132Courtesy of NISSAN
1. Rear wheel sensor 2. Sensor bracket [LH/RH (inboard)] 3. Wheel hub assembly (Bearing-integrated type)
4. Sensor bracket [LH/RH (outboard)] A. Harness connector SYMBOL Pawl
SYMBOL Clip
