Exploded View

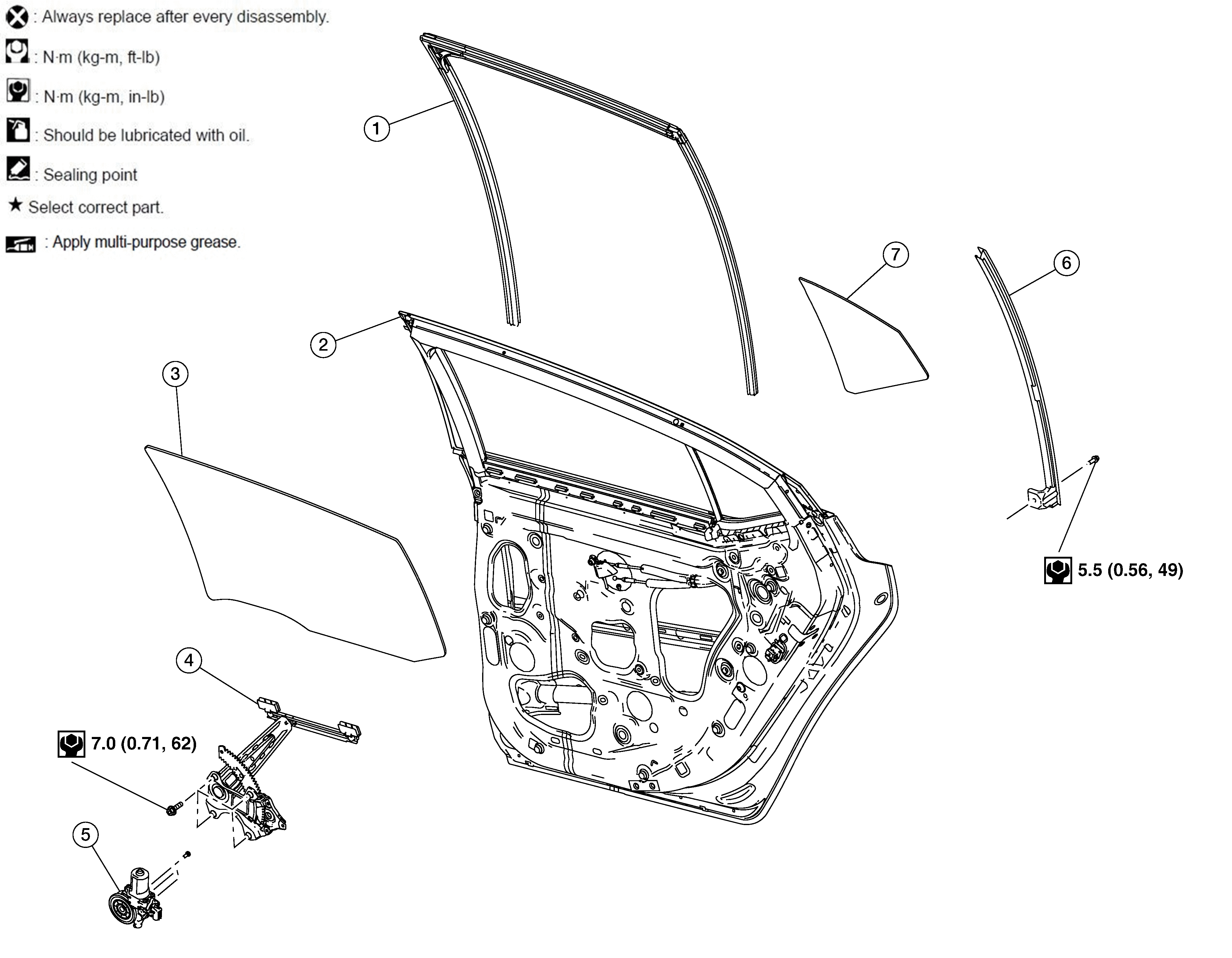

Fig 1: Rear Regulator With Torque Specifications
GNSDB46681Courtesy of NISSAN
1. Door glass rubber run 2. Rear door panel 3. Door glass
4. Door glass regulator 5. Rear power window motor 6. Door glass rear run
7. Partition glass
