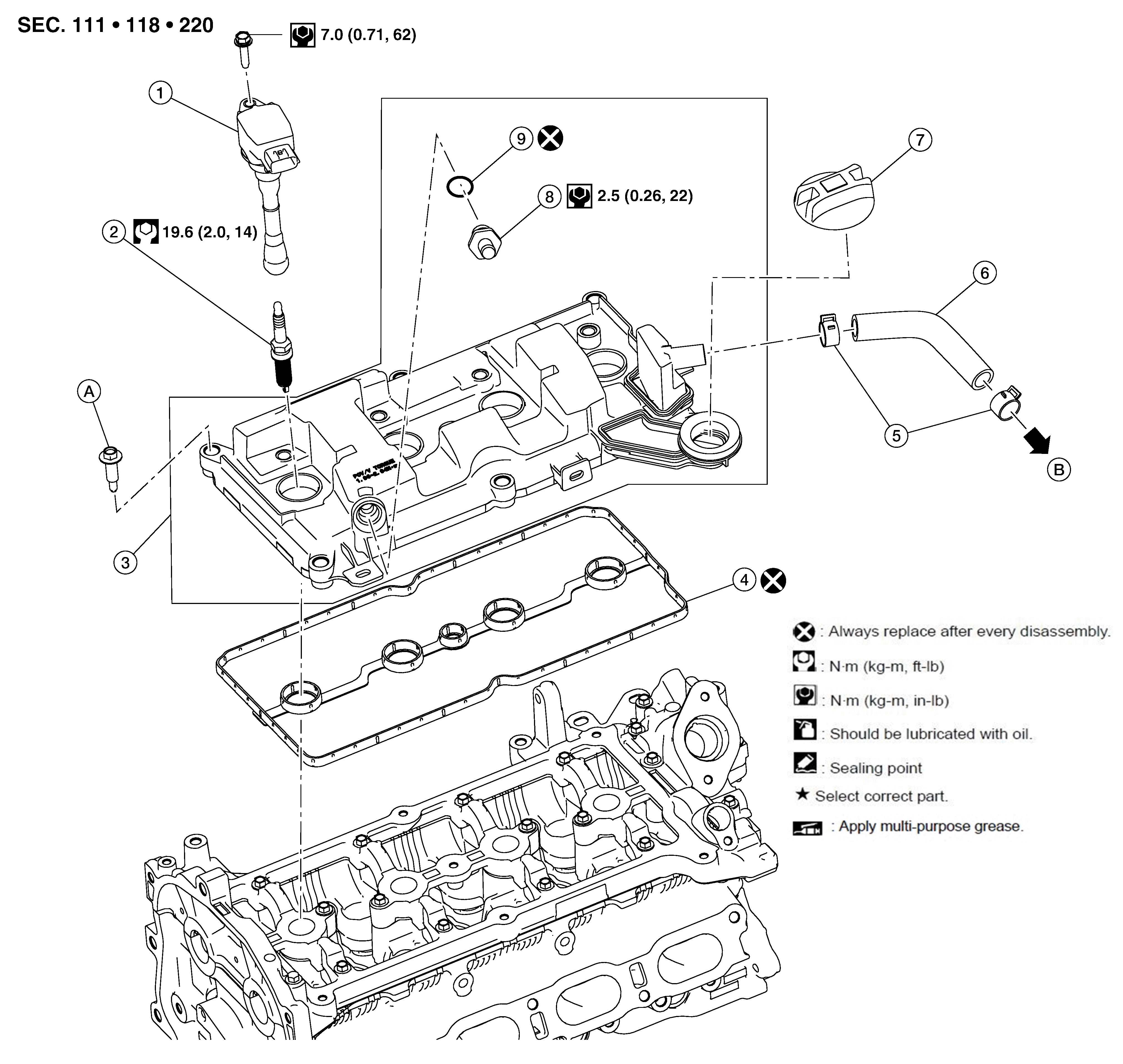

Exploded View
| 1. | Ignition coil | 2. | Spark plug | 3. | Rocker cover assembly |
| 4. | Rocker cover gasket | 5. | Clamp | 6. | Blow-by hose |
| 7. | Oil filler cap | 8. | PCV valve | 9. | O-ring |
| A. | Refer to Exploded View . | B. | To resonator duct. Refer to Exploded View . | ||
| 1. | Ignition coil | 2. | Spark plug | 3. | Rocker cover assembly |
| 4. | Rocker cover gasket | 5. | Clamp | 6. | Blow-by hose |
| 7. | Oil filler cap | 8. | PCV valve | 9. | O-ring |
| A. | Refer to Exploded View . | B. | To resonator duct. Refer to Exploded View . | ||
