Sentra SR Midnight Edition
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System (VDC/TCS/Abs)
>>
Removal And Installation
>>
Front Wheel Sensor
>>
Exploded View
Exploded View

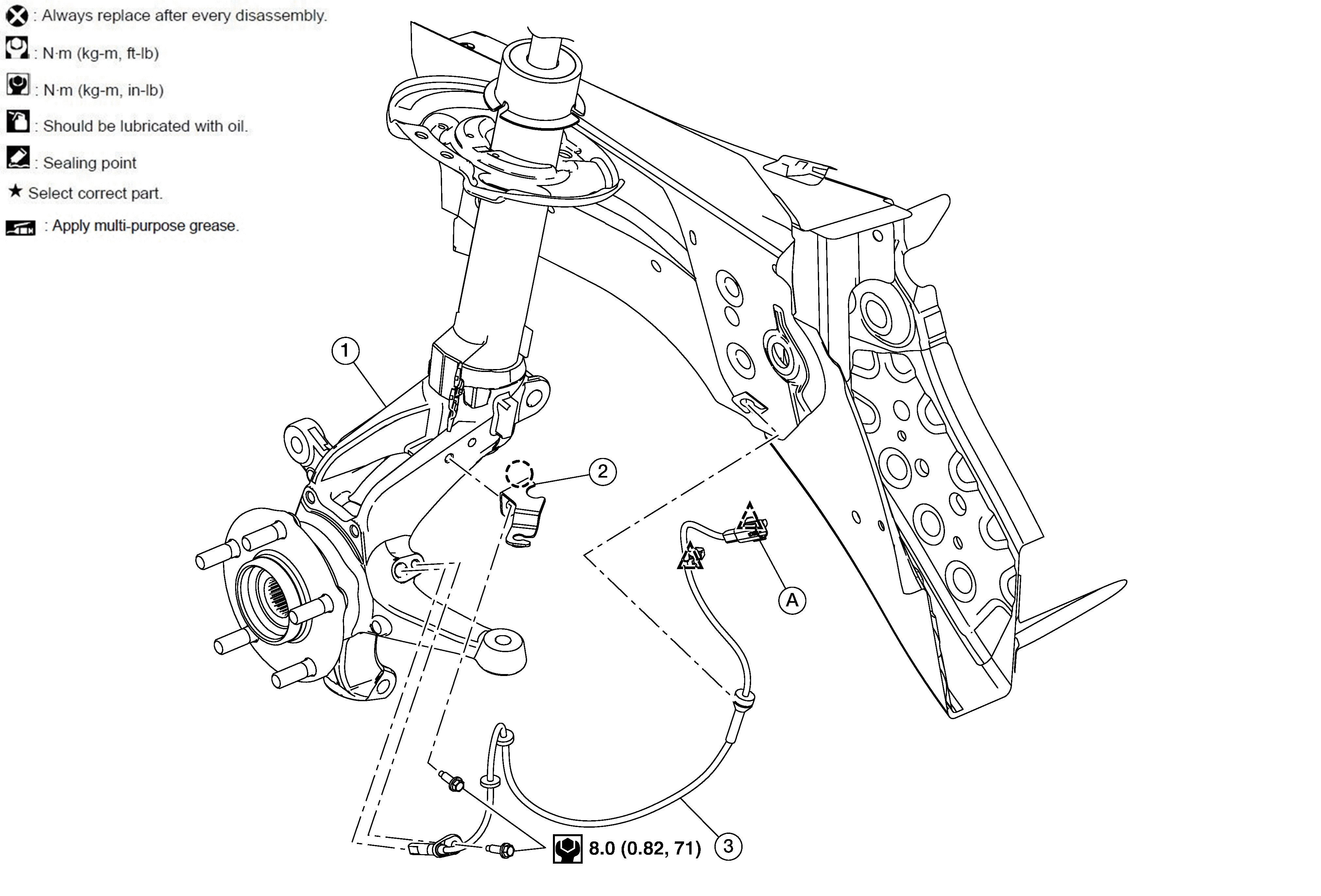

Fig 1: Front Wheel Sensor With Torque Specifications
Courtesy of NISSAN
1.
Steering knuckle
2.
Sensor bracket
3.
Front wheel sensor
A.
Harness connector
Pawl
Clip
Courtesy of NISSAN
