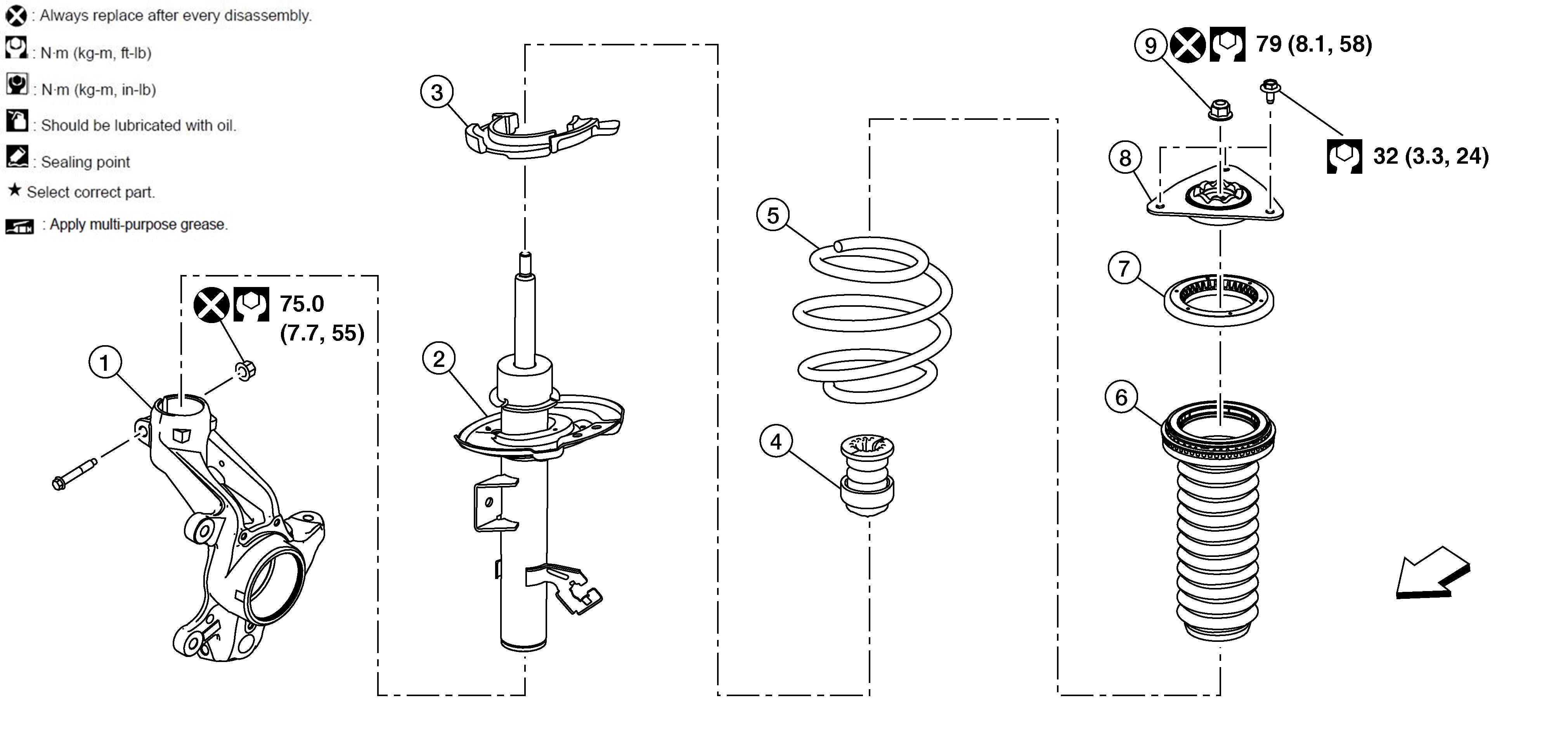

Exploded View
Exploded View
Courtesy of NISSAN
1.
Steering knuckle
2.
Strut
3.
Lower rubber seat
4.
Bound bumper
5.
Coil spring
6.
Dust cover
7.
Mounting bearing
8.
Mounting insulator
9.
Piston rod lock nut
Front
Courtesy of NISSAN
