Removal and Installation
REMOVAL
CAUTION:
When replacing chassis control module, configuration of chassis control module is required. Refer to Description .
- Remove the glove box. Refer to Removal and Installation .

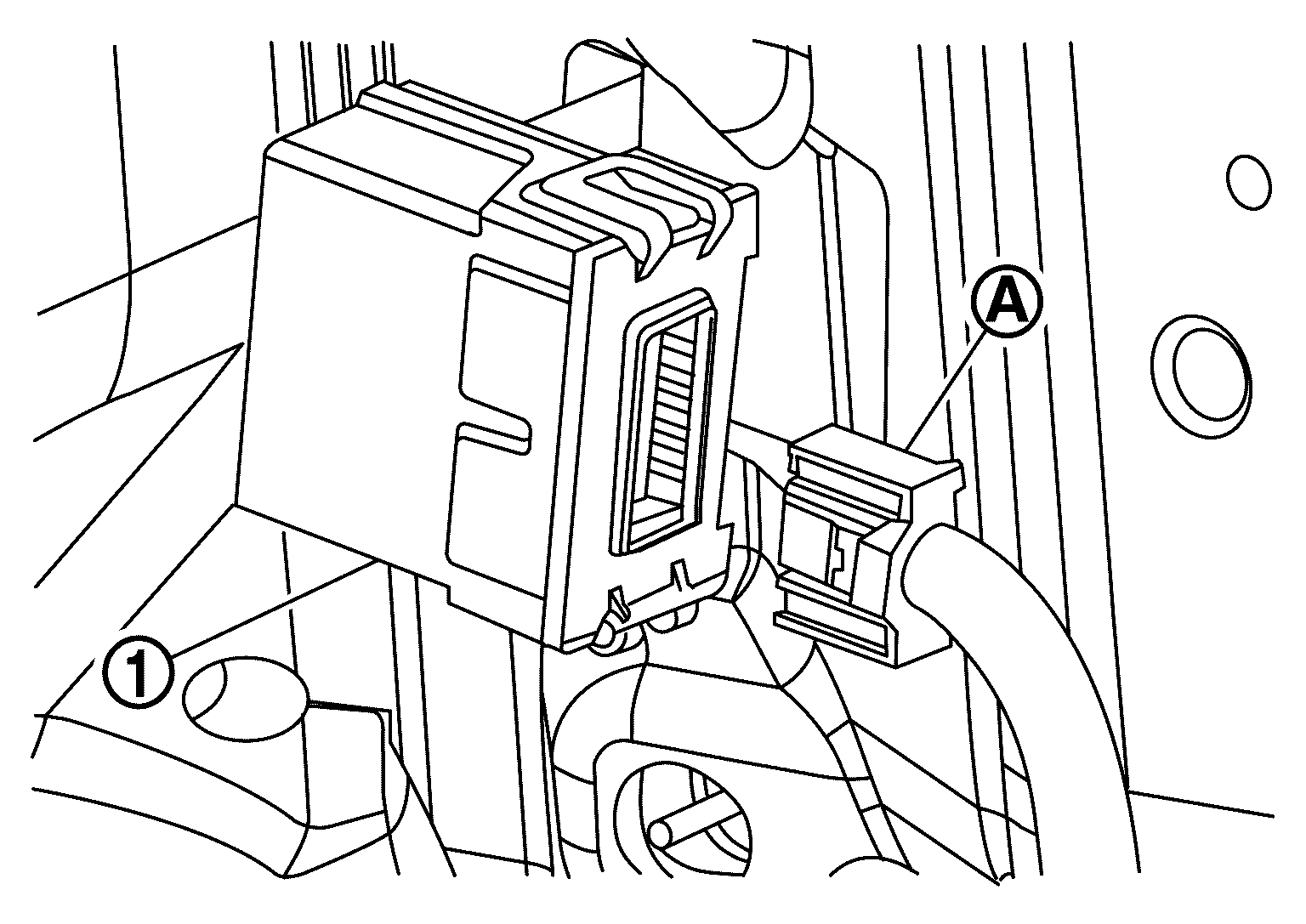

- Remove the chassis control module harness connector
from chassis control module
.

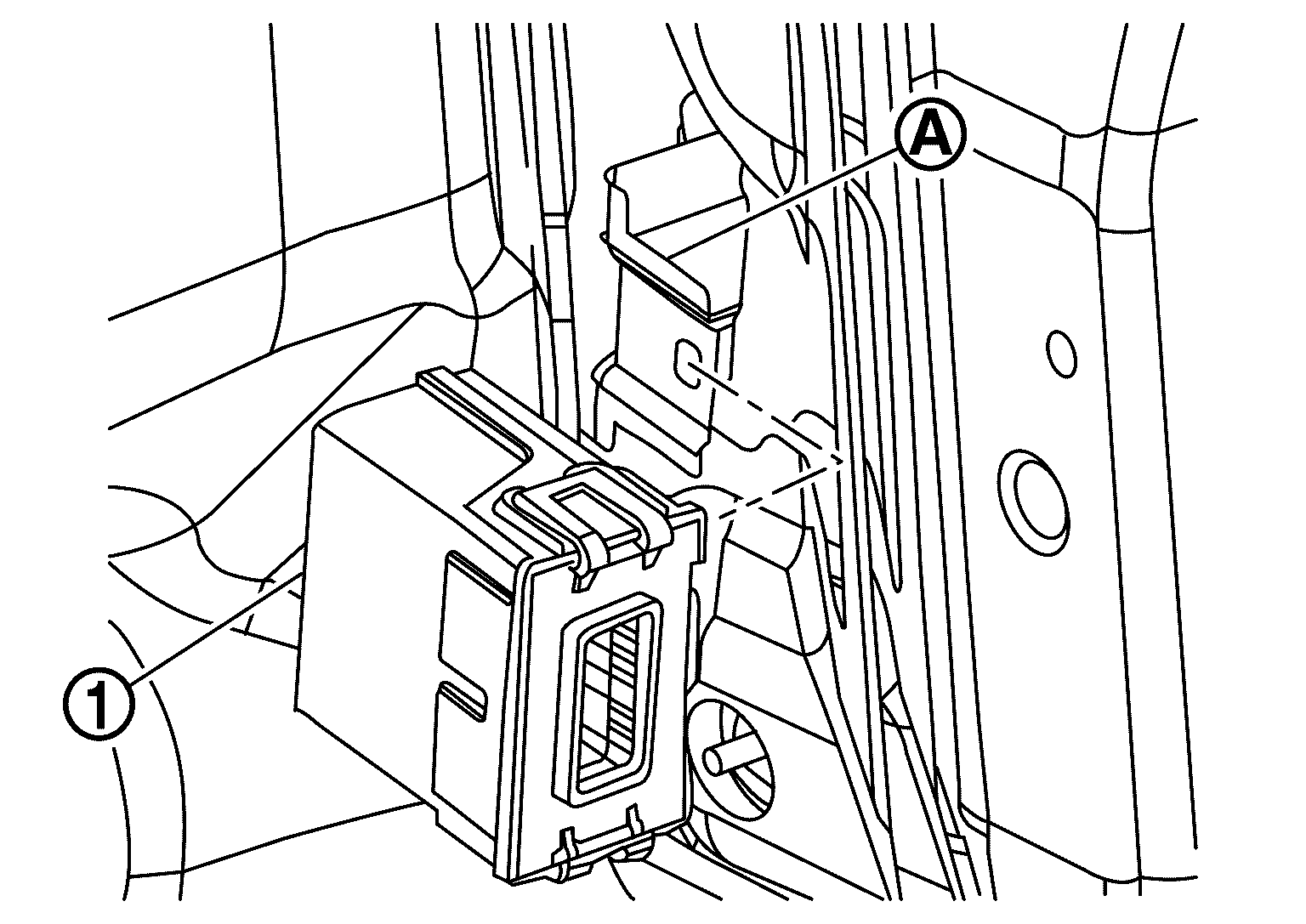

- Remove the chassis control module CAUTION:
CAUTION: Never drop the chassis control module.
INSTALLATION
Installation is in reverse order of removal.
CAUTION:
CAUTION: When replacing chassis control module, configuration of chassis control module is required. Refer to Description .
