Exploded View

DISASSEMBLY (JAPAN PRODUCTION MODELS)

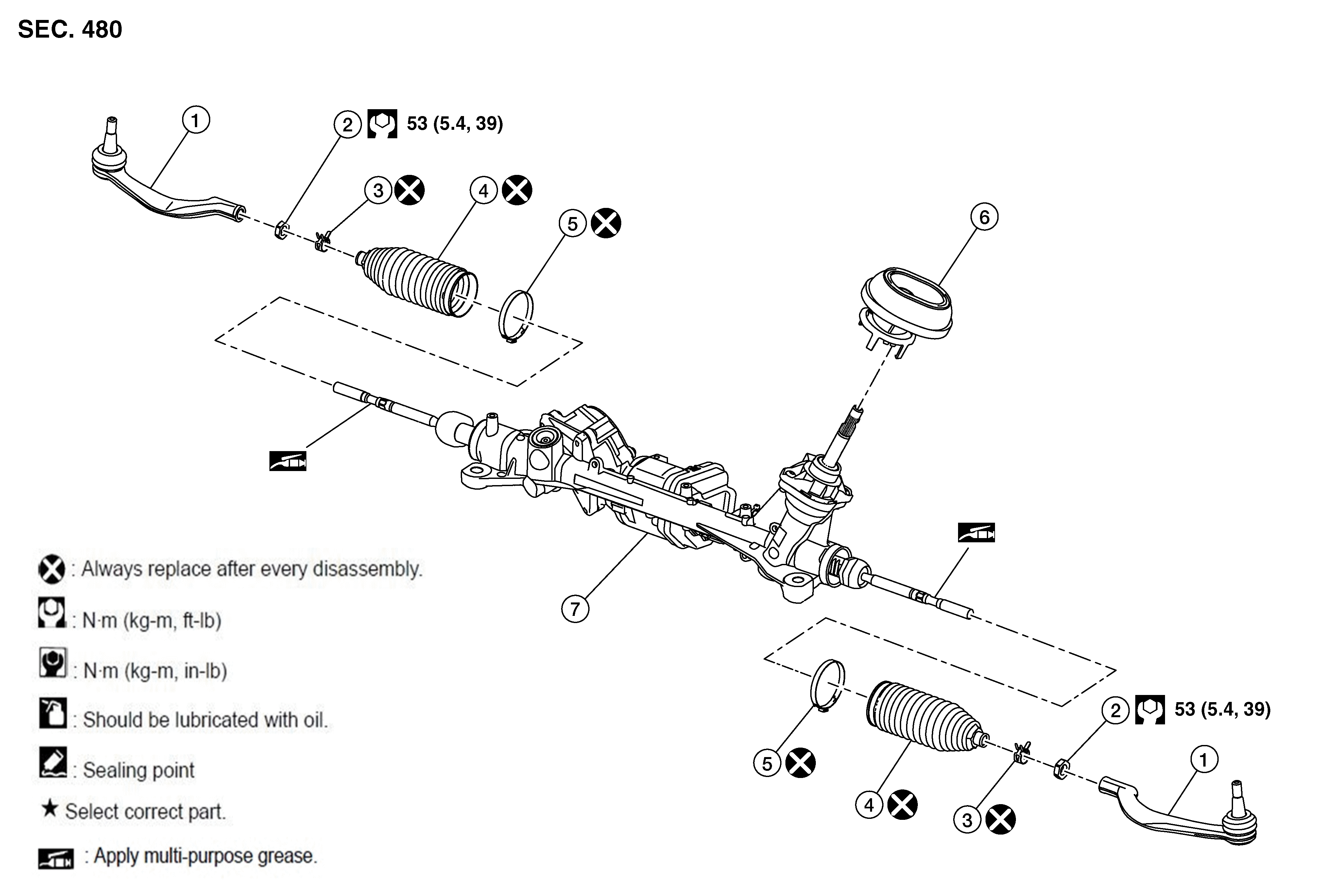

Fig 1: Steering Gear And Linkage With Torque Specifications - Japan Production Models
GNSDB36389Courtesy of NISSAN
SYMBOL Outer socket SYMBOL Outer socket lock nut SYMBOL Boot clamp (small diameter)
SYMBOL Boot SYMBOL Boot clamp (large diameter) SYMBOL Hole cover seal
SYMBOL Gear housing assembly
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : Apply Dow Corning 111 or equivalent.
SYMBOL : Always replace after every disassembly.
CAUTION:

Never apply the grease to the surface between steering rack and inner socket screw part.

DISASSEMBLY (NORTH AMERICA PRODUCTION MODELS)

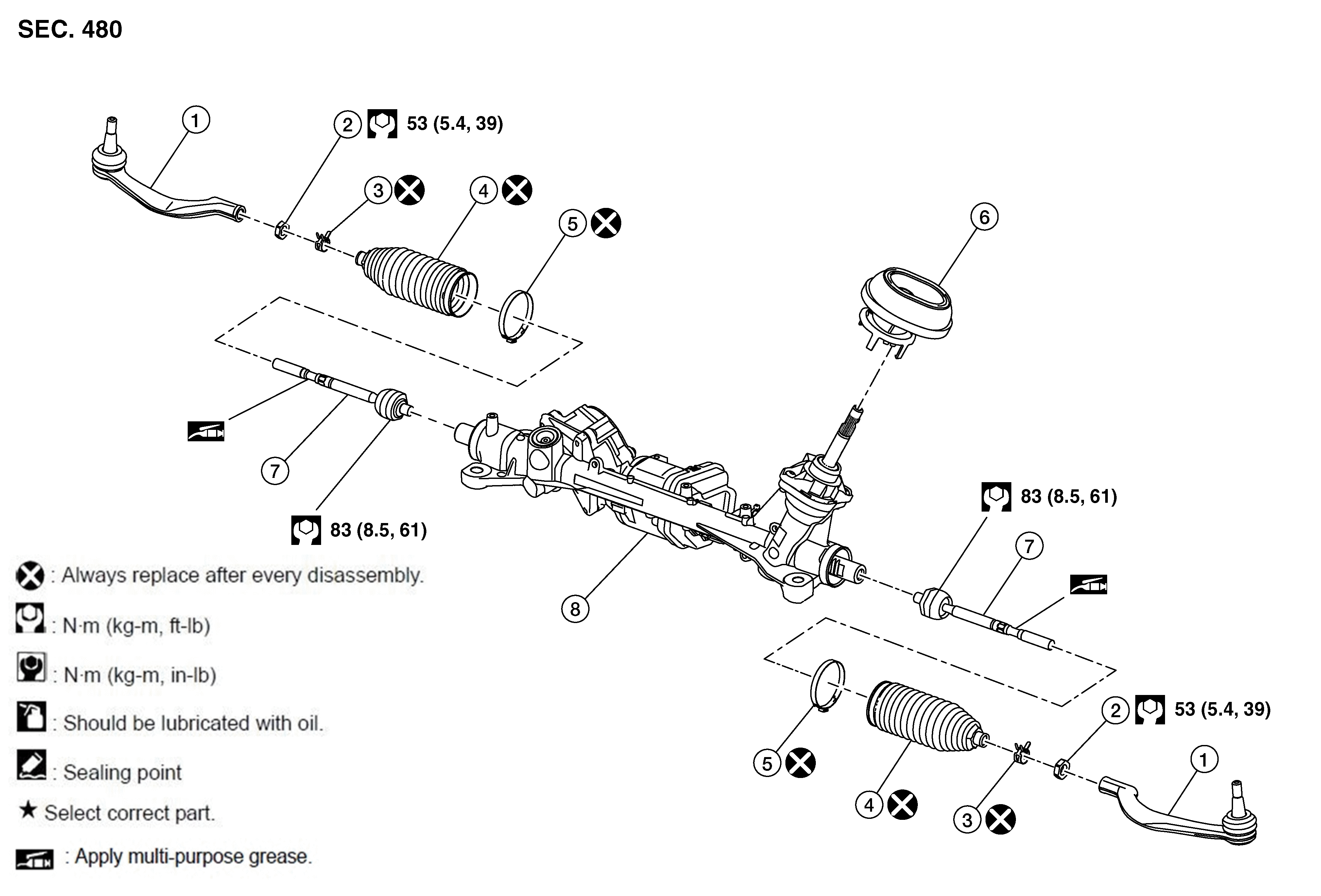

Fig 2: Steering Gear And Linkage With Torque Specifications - North America Production Models
GNSDB35012Courtesy of NISSAN
SYMBOL Outer socket SYMBOL Outer socket lock nut SYMBOL Boot clamp (small diameter)
SYMBOL Boot SYMBOL Boot clamp (large diameter) SYMBOL Hole cover seal
SYMBOL Inner socket SYMBOL Gear housing assembly
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : Apply Dow Corning 111 or equivalent.
SYMBOL : Always replace after every disassembly.
CAUTION:

Never apply the grease to the surface between steering rack and inner socket screw part.
