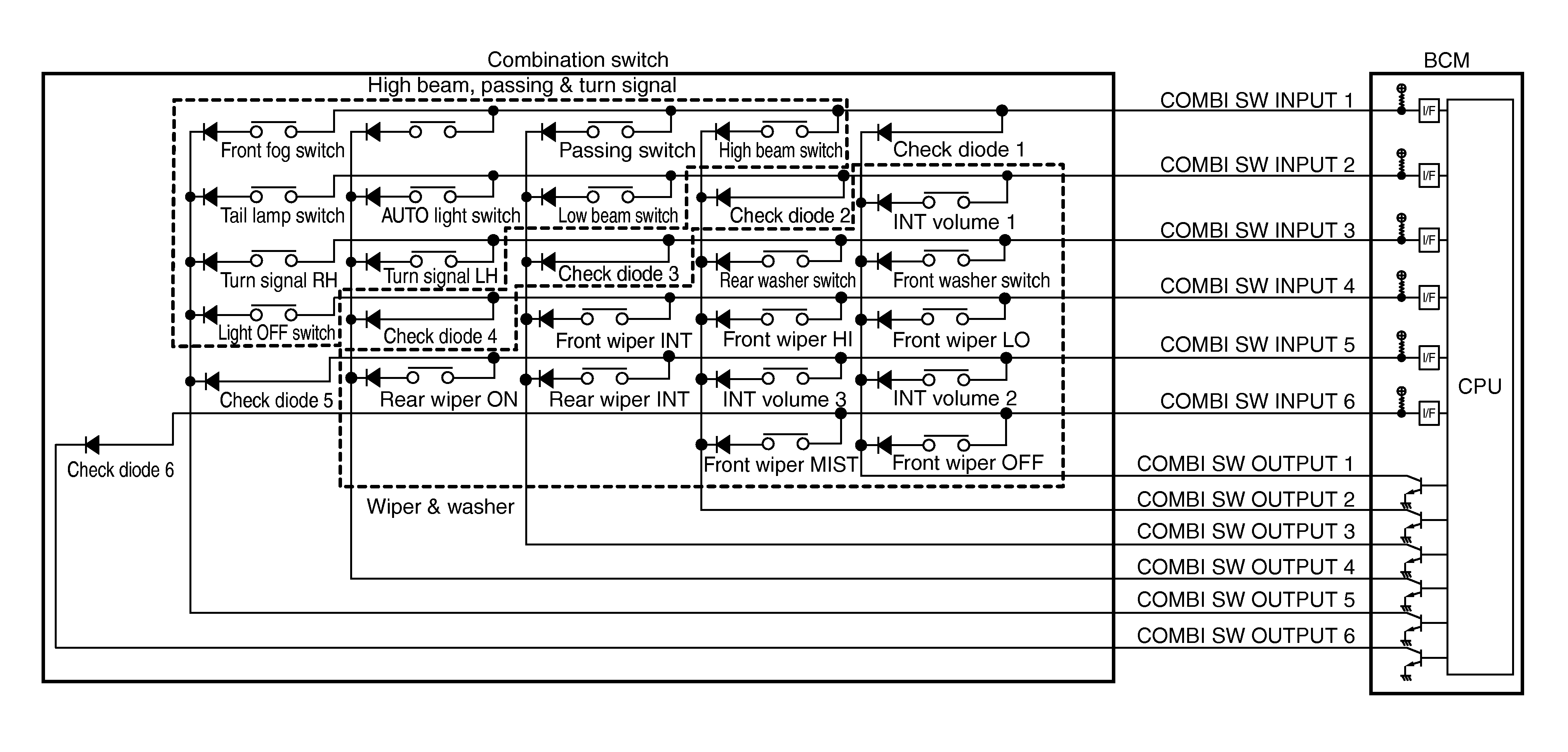

Combination Switch Matrix
WARNING: This page is about a different car, the 2021 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
AUTO light switch is not applicable. (For Canada models)
Combination switch INPUT-OUTPUT system list
|
System |
INPUT 1 |
INPUT 2 |
INPUT 3 |
INPUT 4 |
INPUT 5 |
INPUT 6 |
|
OUTPUT 1 |
Check diode 1 |
INT volume 1 |
Front washer switch |
Front wiper LO |
INT volume 2 |
Front wiper OFF |
|
OUTPUT 2 |
High beam switch |
Check diode 2 |
Rear washer switch |
Front wiper HI |
INT volume 3 |
Front wiper MIST |
|
OUTPUT 3 |
Passing switch |
Low beam switch |
Check diode 3 |
Front wiper INT |
Rear wiper INT |
-- |
|
OUTPUT 4 |
-- |
AUTO light switch |
Turn signal LH |
Check diode 4 |
Rear wiper ON |
-- |
|
OUTPUT 5 |
Front fog switch |
Tail lamp switch |
Turn signal RH |
Light OFF switch |
Check diode 5 |
-- |
|
OUTPUT 6 |
-- |
-- |
-- |
-- |
-- |
Check diode 6 |
NOTE:
AUTO light switch is not applicable. (For Canada models)
